Chassis

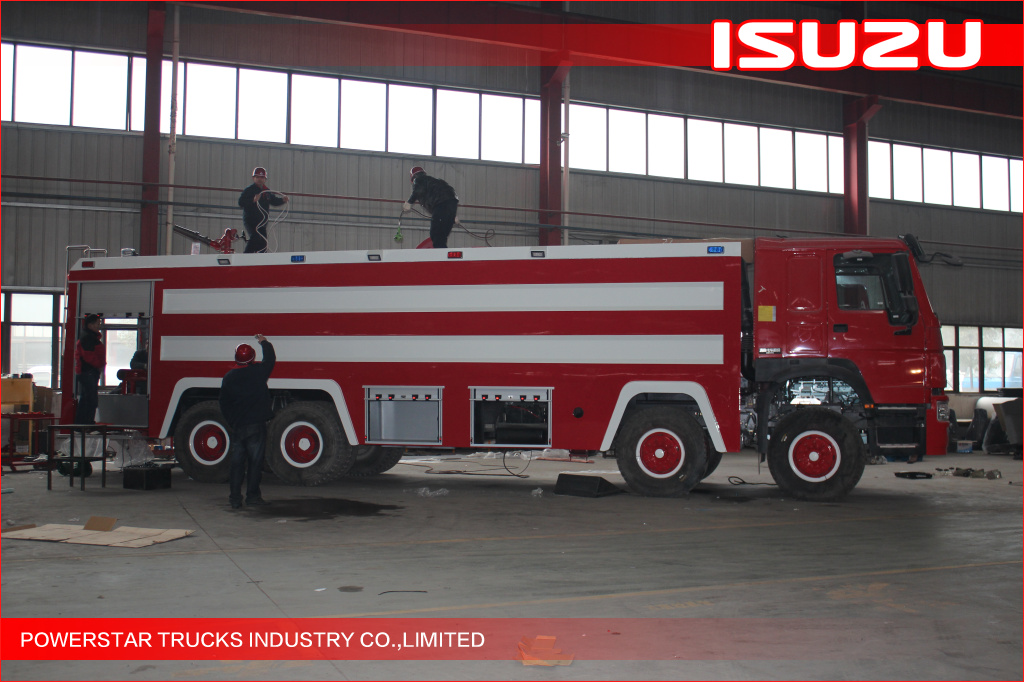

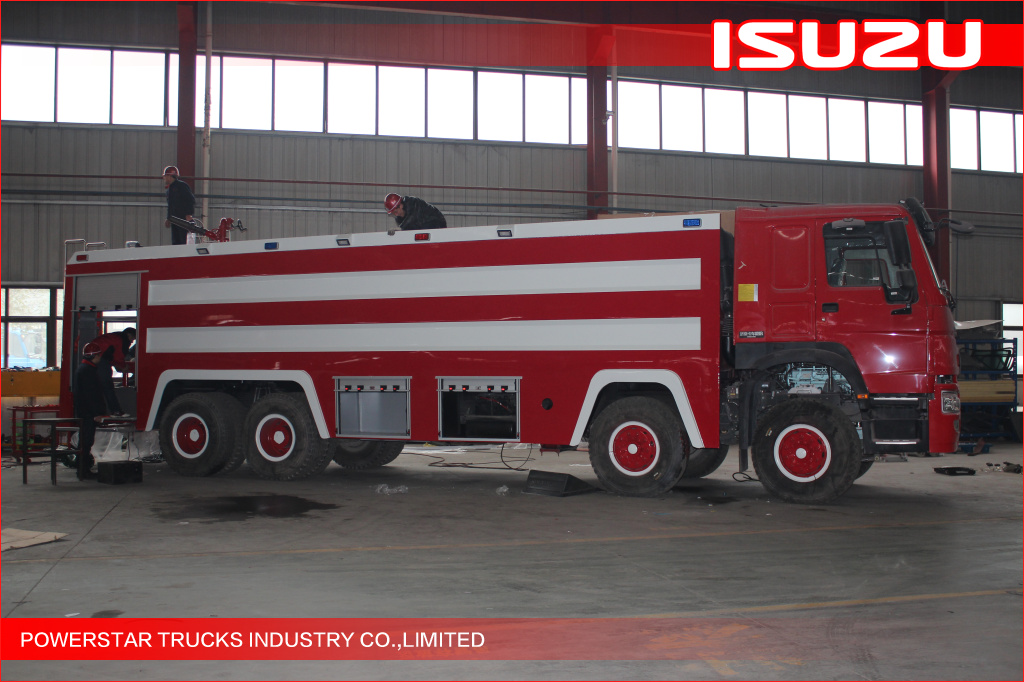

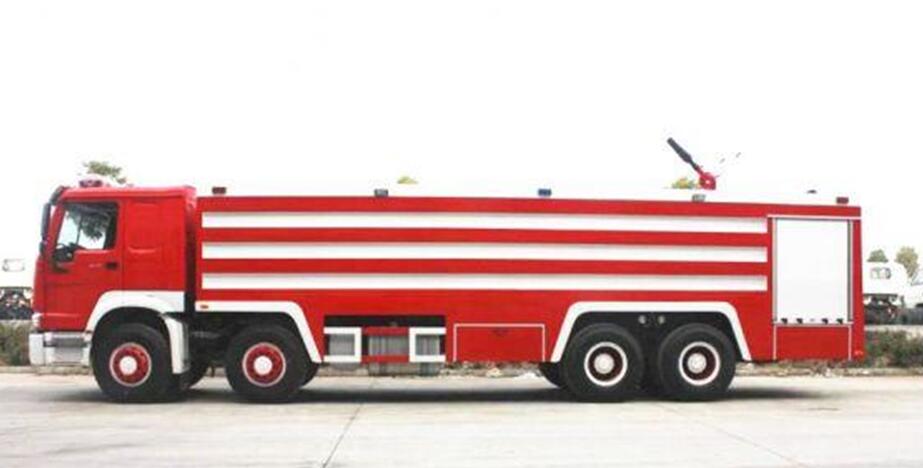

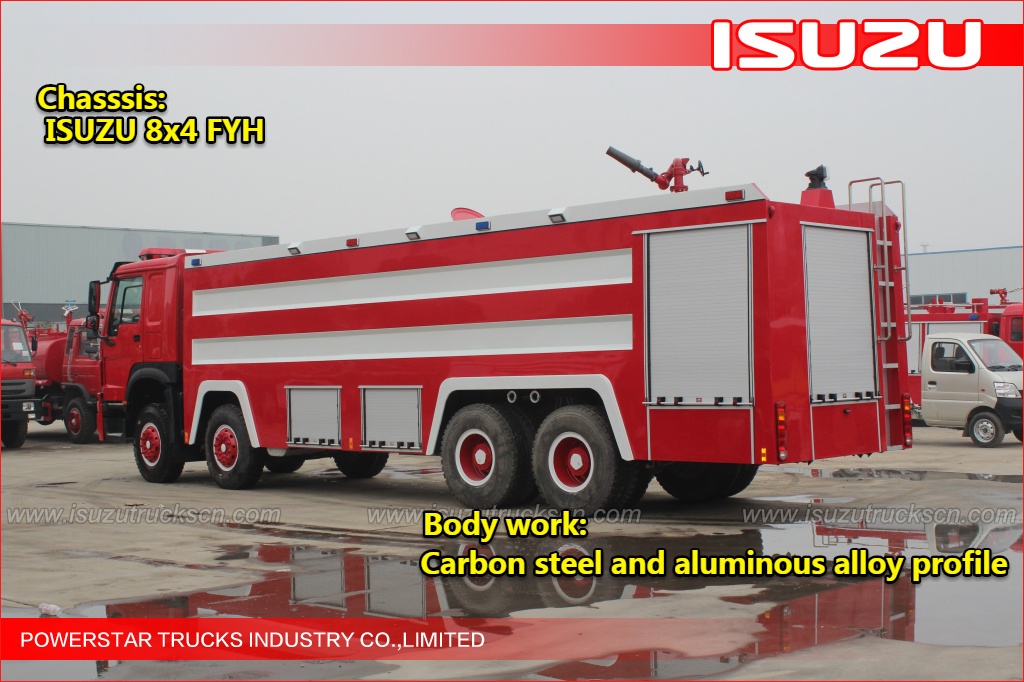

ISUZU FYH Heavy-duty chassis for Fire-fighting application

Model

PT5350GXF

Driving Type

8x4    (Left hand drive)

Wheelbase

1850+4615+1300 mm

Overall Dimension

15210×2500×3560 mm

Tank capacity

25,000L water

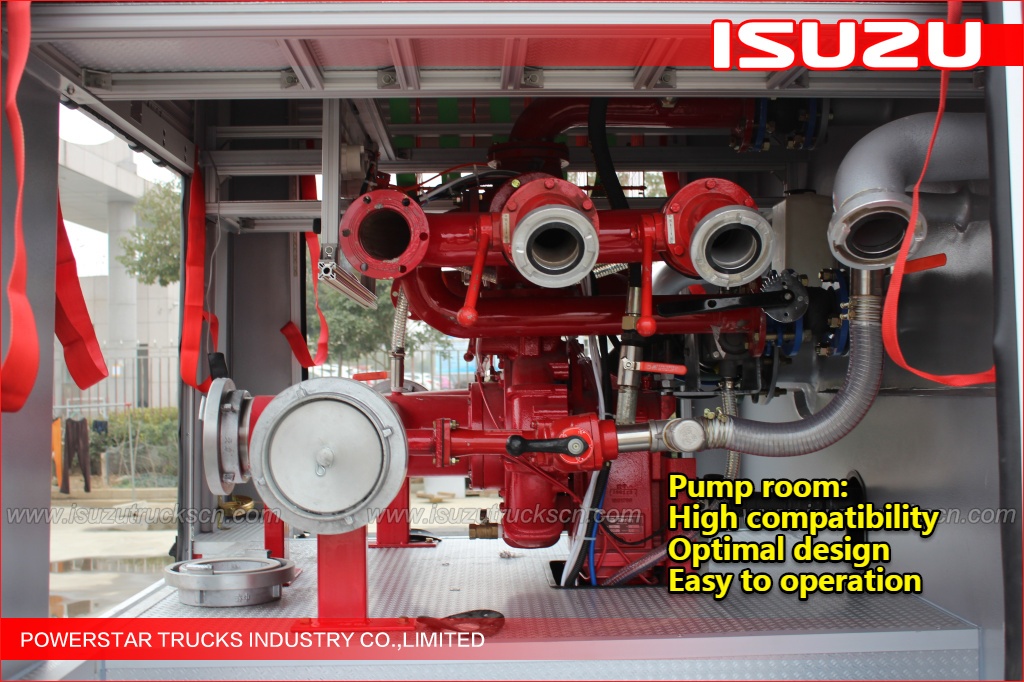

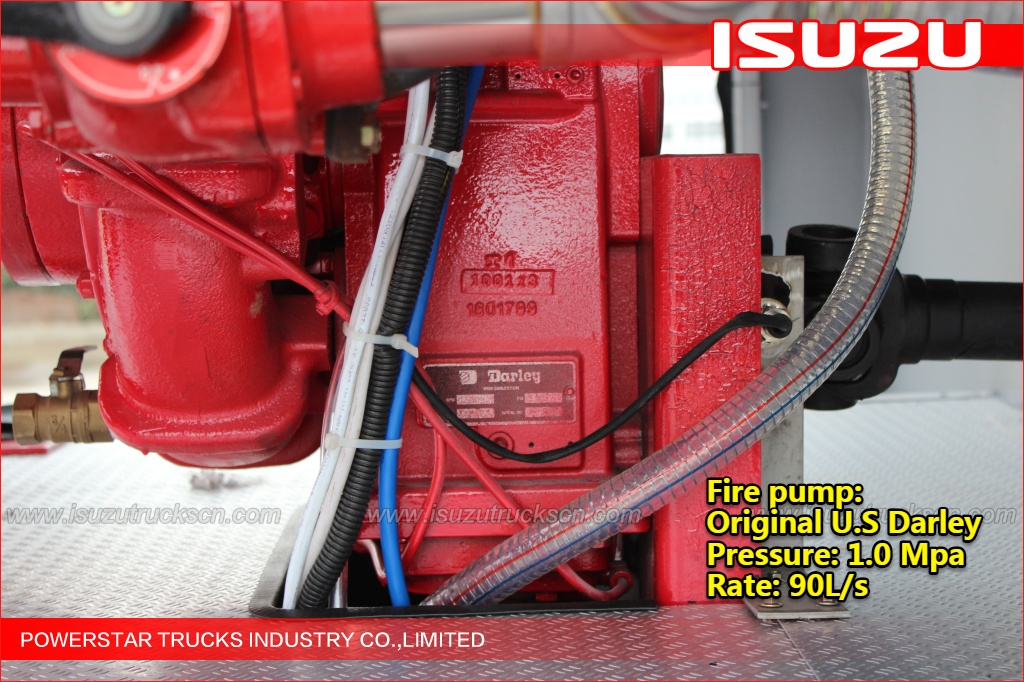

Fire Pump

U.S Darley

Rated low pressure:1.0MPa, Flow rate:80L/S. Rear-mounted，Water delivery time：≤20s

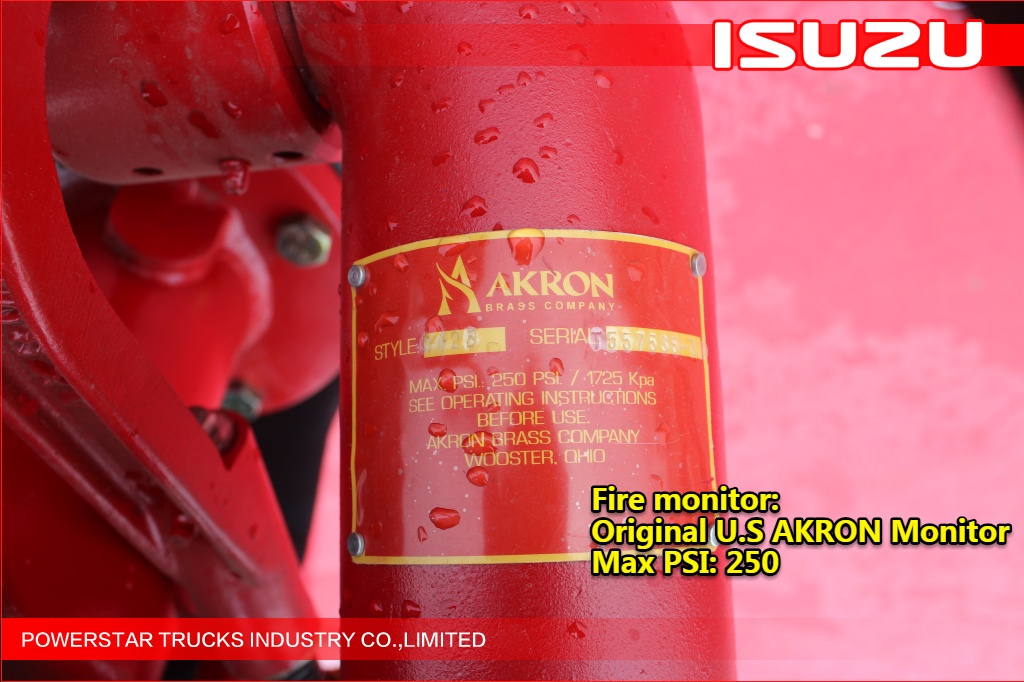

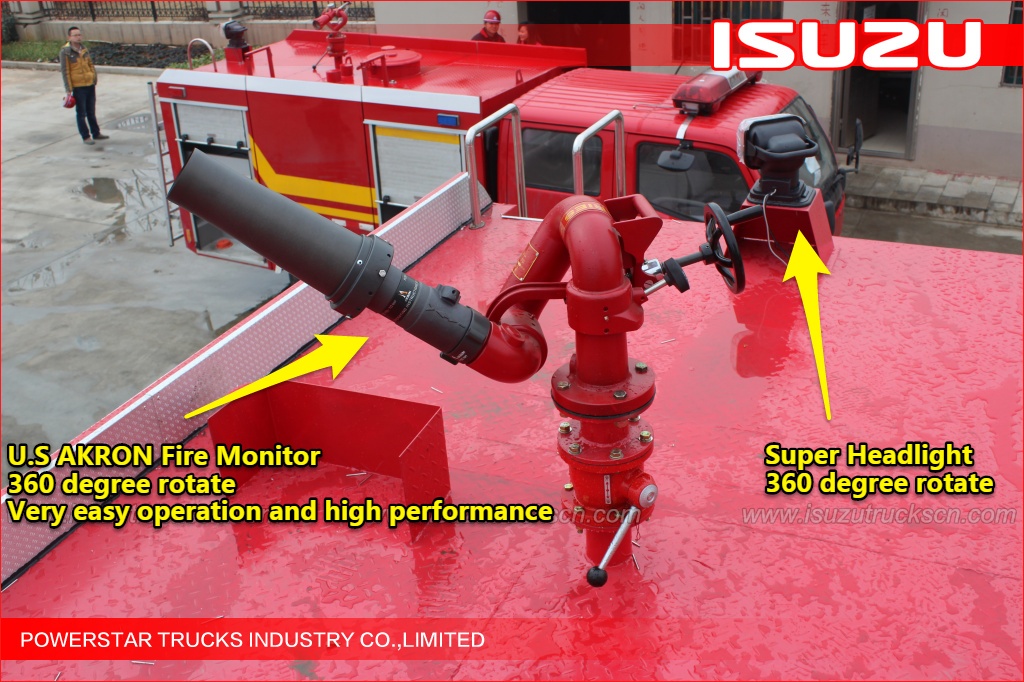

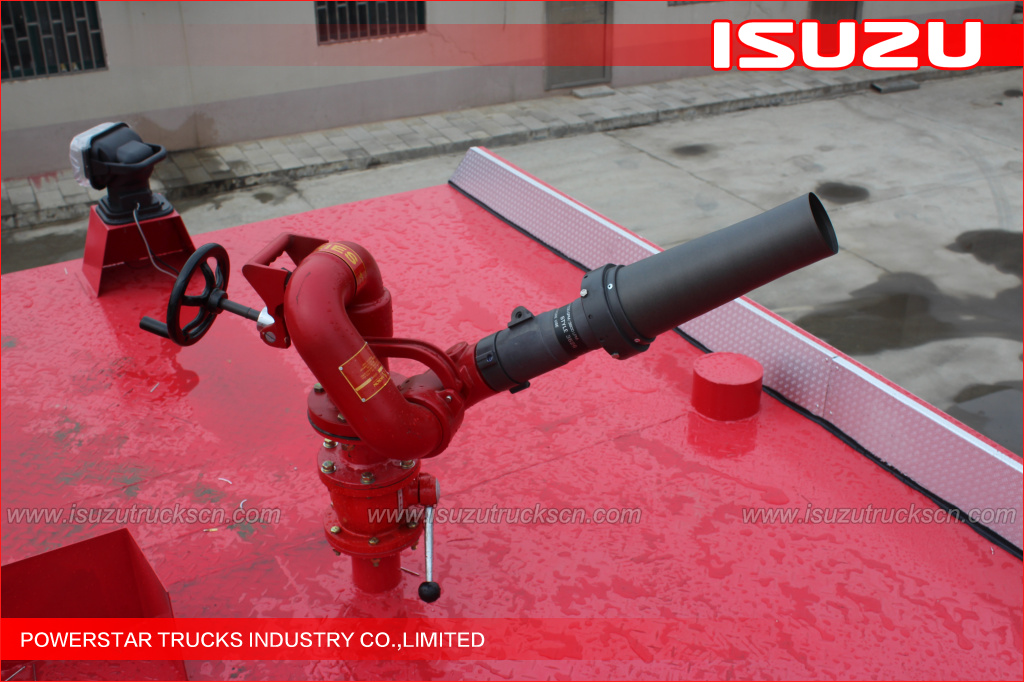

Fire Cannon

U.S AKRON

Rated pressure≤1.0MPa,Rated Flow rate:90L/s, Throw range≥70m, Rotation angle：360°,

Cab

Double cab with Four doors, 6 seats with safe belts.

Engine

Model:

6UZ1-TCG40

Type:

Diesel, turbo charged inter-cooled, 6 cylinder

Max. Power:

258 KW (350HP)

Gearbox

ISUZU 12-shift, mechanical type, 9 forward and 1 reverse with

Tire

11.00-20

Color

Red    (Any color & logos up to wish)

Max Speed

90 km/h
