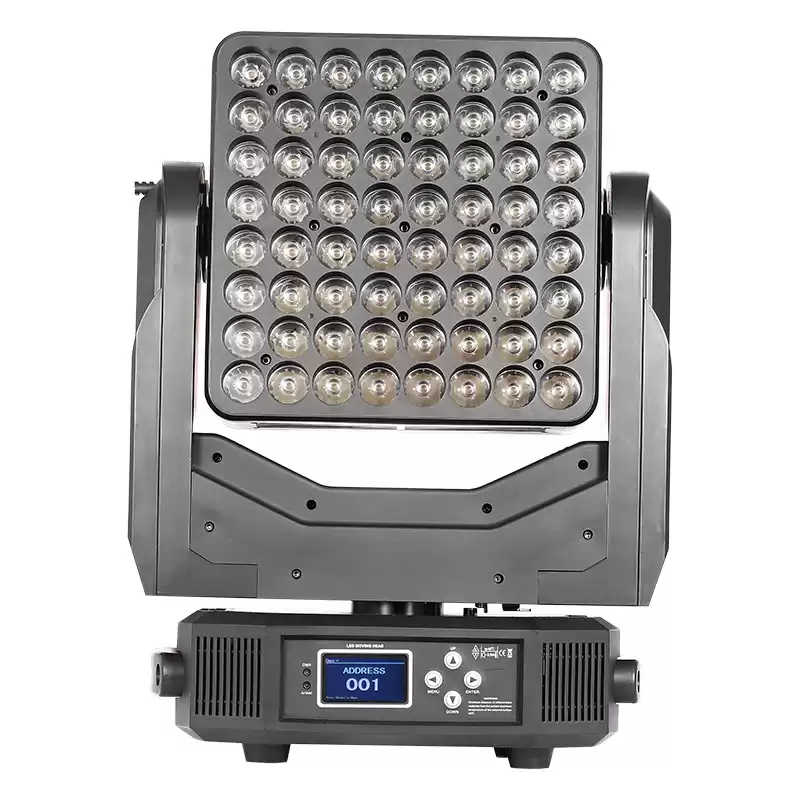

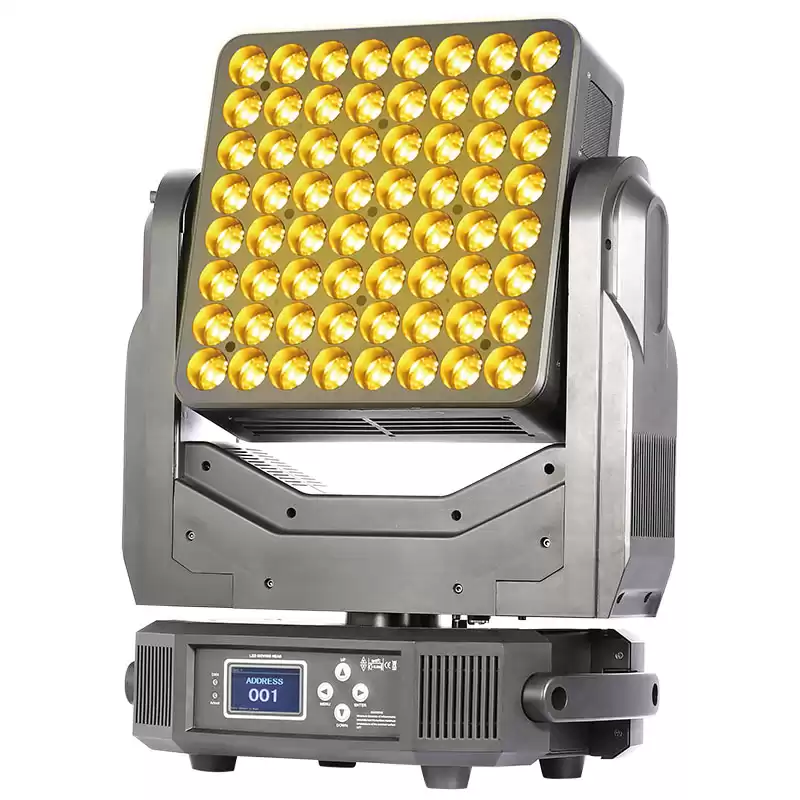

8X8 LED Matrix Moving Head Light

LED matrix moving head light.It uses 64x3W Amber LEDs and 3° beam angle lens,And can also work infinite rotation at Pan / tilt .64pcs of LEDs are individually controlled in DMX and Artnet control mode.




This LED matrix moving head light, it uses 64*3W high brightness PC Amber LEDs as light source, unique design. Special optical system. 3 ° lens. Pan / Tilt axis 2 operation modes (Pan / Tilt axis wireless rotation, pan: 270 °, tilt: 540 °). 64 single-dot control LEDs can form a chasing effect, and each lamp bead can form a dot matrix effect. Has an excellent blue LCD display. DMX channels: 13/15/78 channels and Artnet control (input and output).

  Optics

. LED : 64x3W PC Amber LED.

. Beam angle: 3 °

. Life span : 50000H, low power consumption, energy saving and environmental protection


  Scanning

. Pan / Tilt operation:

                               ※ 8bit and 16bit fine-tuning

                               ※ Smooth and precise positioning

                               ※ Pan: 540 ° ,Tilt270 ° rotation

                               ※ Pan and Tilt high-speed stepless operation with adjustable speed

                               ※ The scanning position can be memorized, and it will be reset automatically after no expected operation.

                               ※ Pan and Tilt with error correction function


  Color

. PC Amber golden light

. Super strong LED beam

. LED can be controlled by a single piece to create a more gorgeous chasing effect

Lighting Effect For 8x8 Matrix Moving Head Light


  Specification

. 3 DMX channel modes: 13/15/78 international standard DMX512 channels

. 4 control modes: DMX512, Artnet, sound  control, master-slave

. 0-20HZ strobe, pulse strobe, random strobe effect

. Dimming: 0-100% linear dimming, which can control the change of light and dark of 4colors and light off at the same time


  Display

. LCD display

. Can set key lock

. The display board can be reversed by 180 °, which is suitable for installation in different positions.


  Software

. Software upgrade: convenient and fast software upgrade via DMX data cable

. Display the lamp usage time, which is convenient for customers to understand the lamp usage in time


  Other functions

. Setting and addressing: RDM

. ArtNet input and output

. Fan cooling (fan changes speed with temperature change)

. LED temperature detection system to protect the life of lamp beads

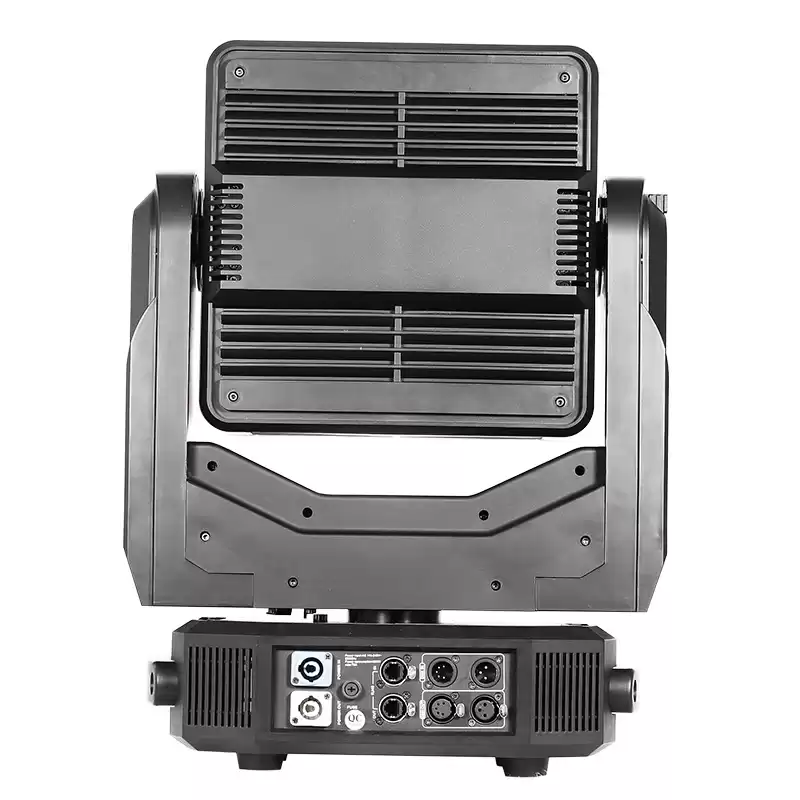

  Power / Dmx connection

. Power connection: PowerCON input & output

. DMX XLR socket : 3 Pin, 5Pin XLR socket  input and 3 Pin, 5PinXLR socket output


  Power

. AC100-240V 50/60HZ

. Power Consumption:300W


  Protection class

. Housing  material: ABS plastic fireproof material

. Waterproof level: IP20


  Working environment

. Indoor working temperature: -20 ° C~+ 40 ° C


  Size and weight

. Packing size: 500x395x570mm

. Net weight: 20KG

. Gross weight: 23.2KG


  Certification

. CE,ROHS
