9.0 Inch IPS 1024(RGB)*600 LCD screen with PCAP

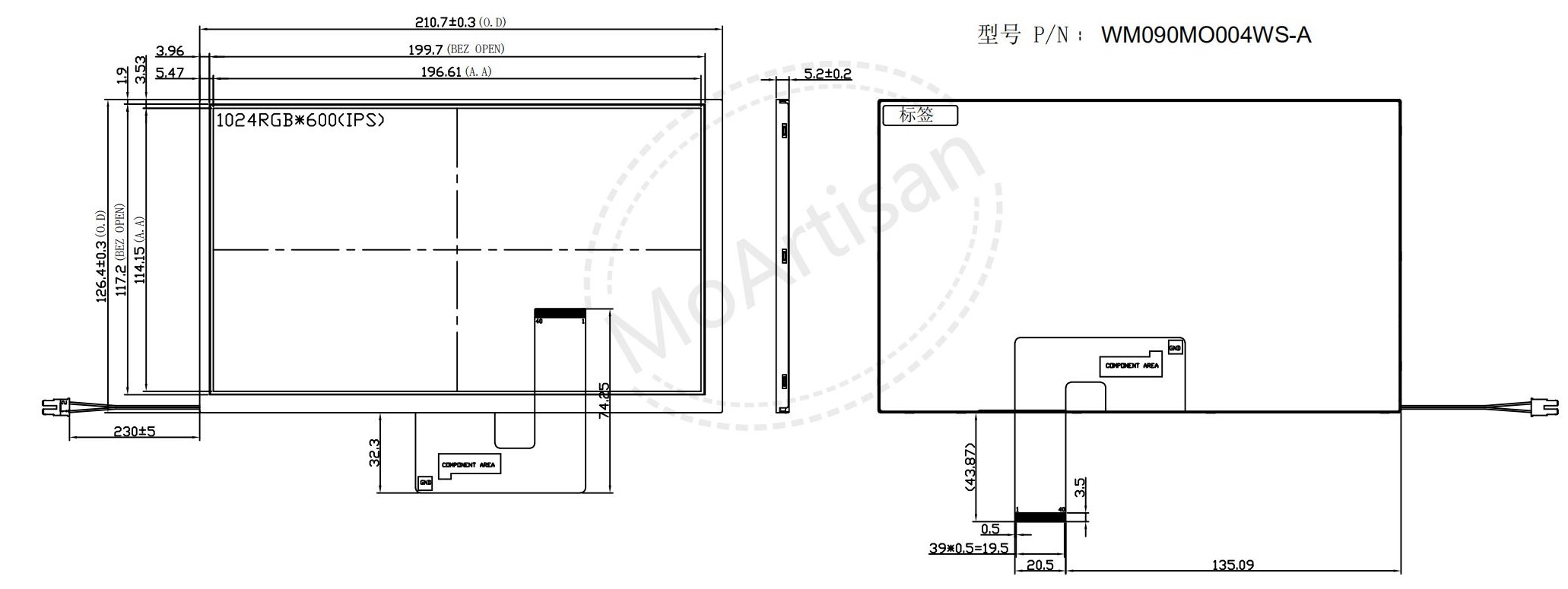

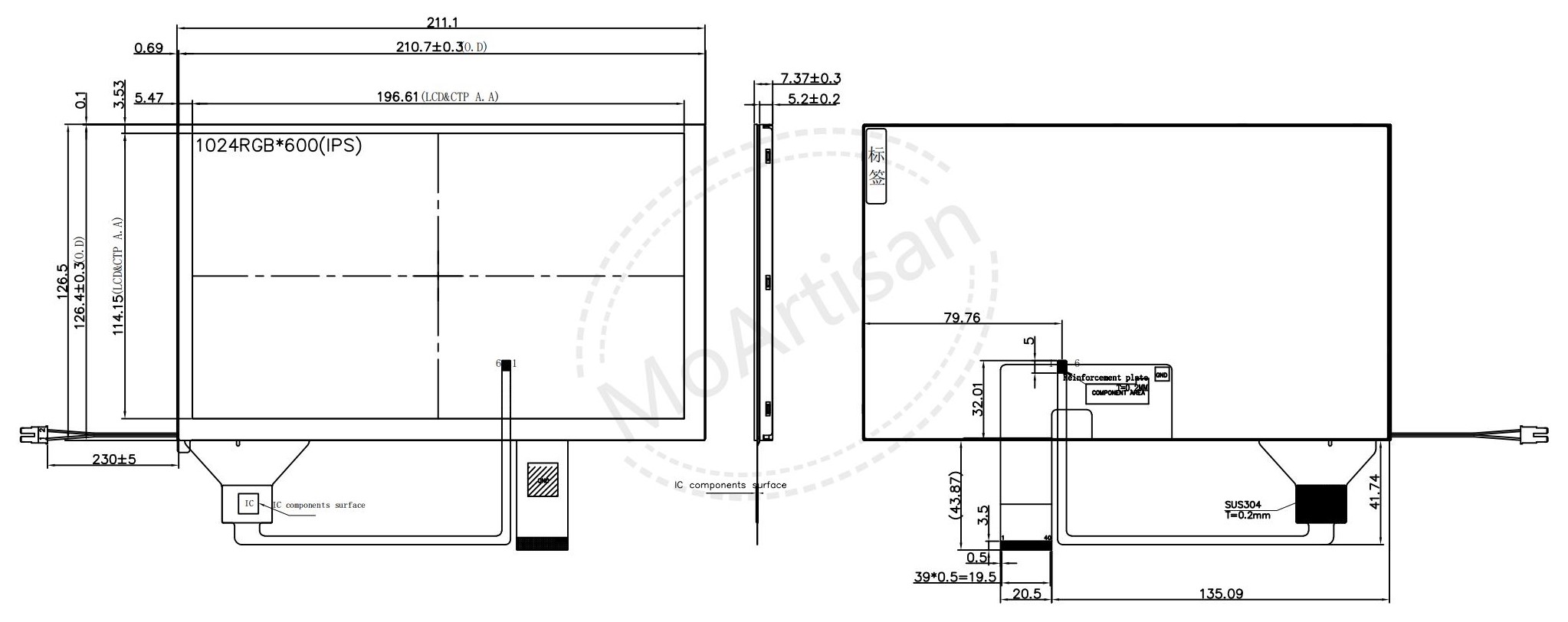

Production Drawings
WM090MC004WS-A Introduction
-
9.0 (16:9) inch
diagonally measured active display area.
-
WSVGA (1024 horizontal by 600
vertical pixel) resolution.
-
9.0 inch IPS LCD module with 400 nits brightness.
-
This LCD module is laminated a PCAP module with OCA.
-
WM090MO004WS-A, lcm only, 500 nits brightness.
|
|
About Part Number
WM020MO001QV-A: WM---Brand Abbreviation; 020---Display Inch; MO---Module;
MR---Module+RTP; MC---Module+PCAP; MP---Module+PCB; CP---Moudule+PCAP+PCB…;
001---Serial Number; QV/WV/WX/XG…---Format Solution; A/B/C...---Versions
|
|
|
Size
|
Description
|
LCM Outline
mm
|
LED L/T (Hrs)
|
Interface
|
Brightness/CR
|
Temperature
Range (°C)
|
Viewing Angle
U/D/L/R
|
LCM P/N
|
|
9.0
|
WSVGA, 1024RGB*600,
IPS, Landscape view screen, I2C PCAP
|
211.1*126.5*7.37
210.7*126.4*5.2
|
6X7 LED (50K)
|
40 PIN FPC, 8-Bit, LVDS
|
400 nits/800
500 nits/800
|
Topa: -20~+70
Tstg: -30~+80
|
85/85/85/85
|
WM090MC004WS-A
WM090MO004WS-A
|
Production Applications
Mobile terminal, Personal Navigation Device, Multimedia applications and Others AV system.
Production Customized
This kind of product can
be customized.
Lead time for samples: 3~4
weeks.
Notes:
This ia a mormal LCM till now.
