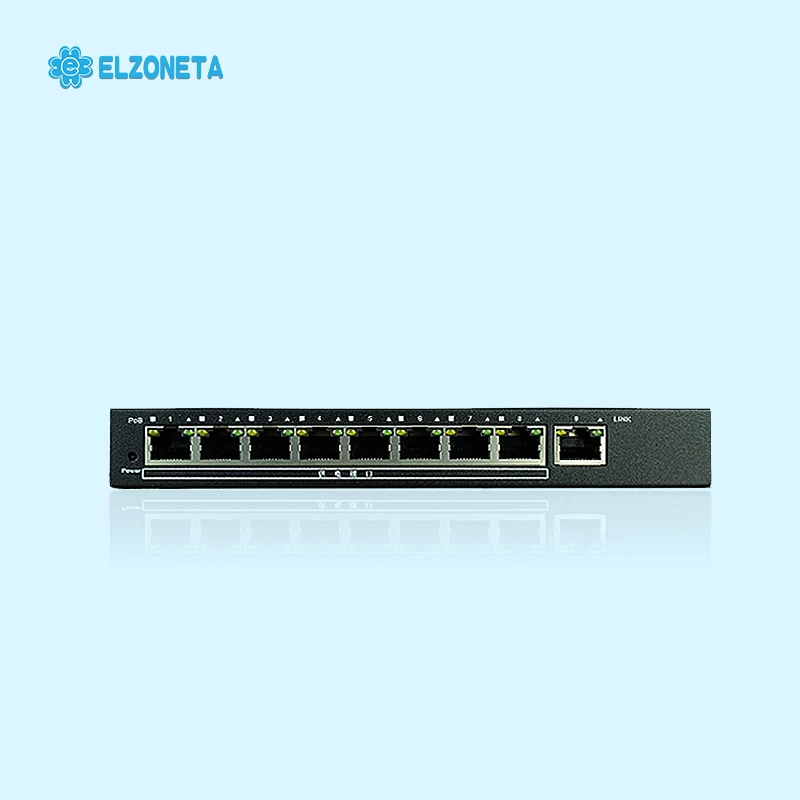

EC-JNS03-9CH 15V 9 ports Switch

Specifications

Power Supply:DC 15V 8A

Operating temperature:0 to +40℃

Operating Humidity:10 to 90%

Color/Material:Black / Metal

Size:125×77×31cm

Weight:0.3KGS

Accessories in package:

15V 8A Power Supply X 1

Power cable X 1

RJ45 POE splitter X 8

User Manual X 1

Standards and Protocol:IEEE 802.3 10Base-T，IEEE 802.3u 100Base-TX IEEE 802.3x Flow Control

Backboard bandwidth:1G

Mac Address Capacity:2K

Network Interface:9 RJ45 ports (10/100Mbps),Support auto MDI / MDIX

Interface:port 1 is uplink port(without power),it is used for Modern or NVR,Port 2,3,4,5,6,7,8 is power supply transmission port

RJ45 core:1,2,3,6 is date transmission port, 4 & 5 is positive electrode, 7 & 8 is negative electrode

Transmission distance:Uplink is 100 meters, power port can reach 70-100 meters with 0.5 oxygen-free copper cable
