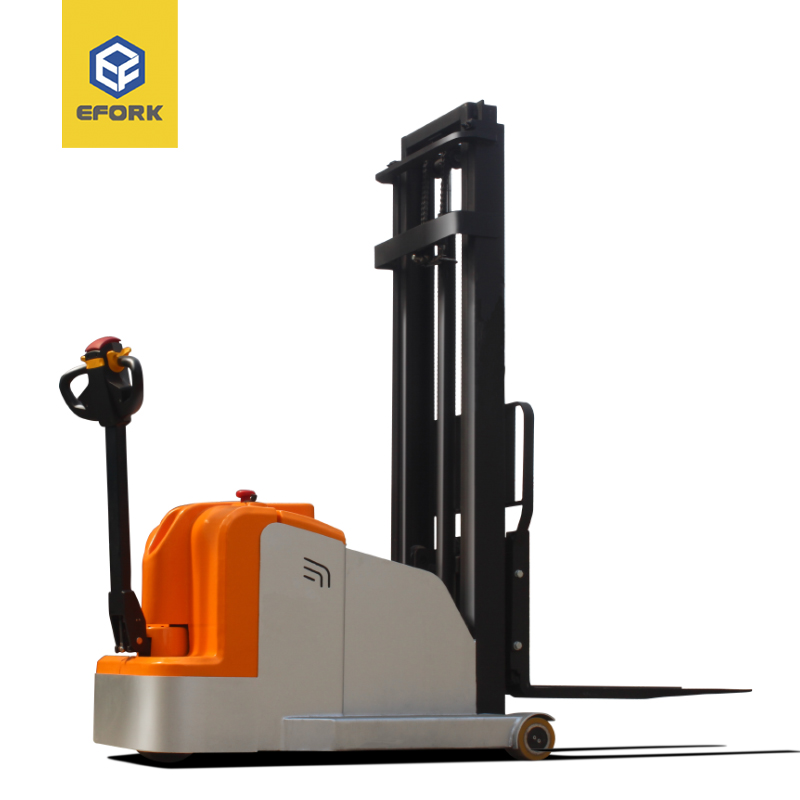

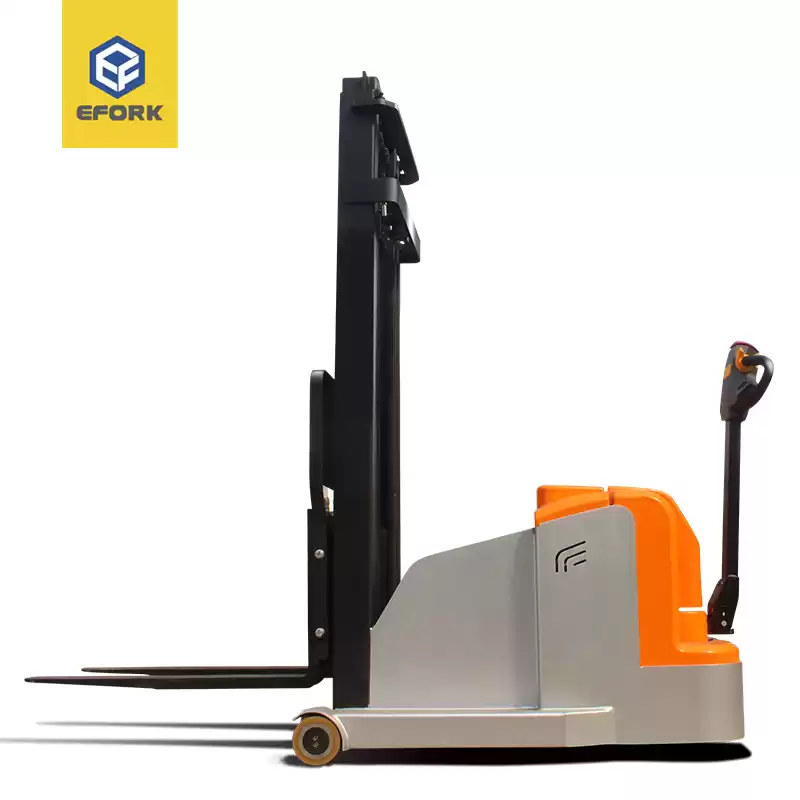

Product Name: 900-1000KG Walking Type Counterbalanced Electric Pallet Stacker
EFORK CPDB-W series electric pallet stacker is compact & light weight warehouse handling equipment, which applies to narrow sites.
American CURTIS Curtis control system, with multiple automatic protection systems, provides a higher level of functional safety.
Capacity:900/1000 Kg
Lifting height:2500-3000 mm
Apply to: single and double-deck pallet
Product Advantage:
●American CURTIS control system;
●Maintenance-free battery (optional lithium battery);
●Excellent layout structure, easy maintenance.
Specifications:
|
Name
|
Walking Type Counterbalanced Electric Pallet Stacker
|
|
Model No.
|
|
CPDB09W-30
|
CPDB09W-30-Li
|
CPDB10W-30
|
|
Load Capacity
|
Kg
|
900
|
900
|
1000
|
|
Max lifting height
|
H（mm）
|
3000
|
3000
|
3000
|
|
Load center
|
C（mm）
|
500
|
500
|
500
|
|
Wheel Type
|
|
Pu solid tire
|
|
Fork size
|
mm
|
920*100*35
|
|
Overall length
|
L（mm）
|
2245
|
2245
|
2408
|
|
Overall width
|
S（mm）
|
916
|
916
|
916
|
|
Height--Mast Lowered
|
H1（mm）
|
2080
|
2080
|
2080
|
|
Maximum height when fork is lifting
|
H2（mm）
|
3913
|
3913
|
3913
|
|
Minimum ground clearance
|
M2（mm）
|
40
|
40
|
40
|
|
Turning radius
|
W（mm）
|
1257
|
1257
|
1428
|
|
wheelbase
|
(mm)
|
1070
|
1070
|
1240
|
|
Min. stacking aisle 1000*1000 pallet
|
mm
|
2859
|
2859
|
3030
|
|
Max. Walking Speed
|
Km/h
|
3.5/4
|
3.5/4
|
3.5/4
|
|
Grade ability
|
%
|
5.0/4.5
|
5.0/4.5
|
5.0/4.0
|
|
Total Weight
|
Kg
|
1290
|
1240
|
1320
|
|
Front wheel
|
mm
|
Ø140*100
|
|
Rear wheel
|
mm
|
Ø210*70
|
|
Battery capacity
|
V/Ah
|
24/100
|
24/50
|
24/100
|
|
Driving motor
|
Kw
|
0.75
|
|
Lifting motor
|
Kw
|
2.2
|
|
Walking Adjustable Type
|
|
Holzer type accelerator
|
