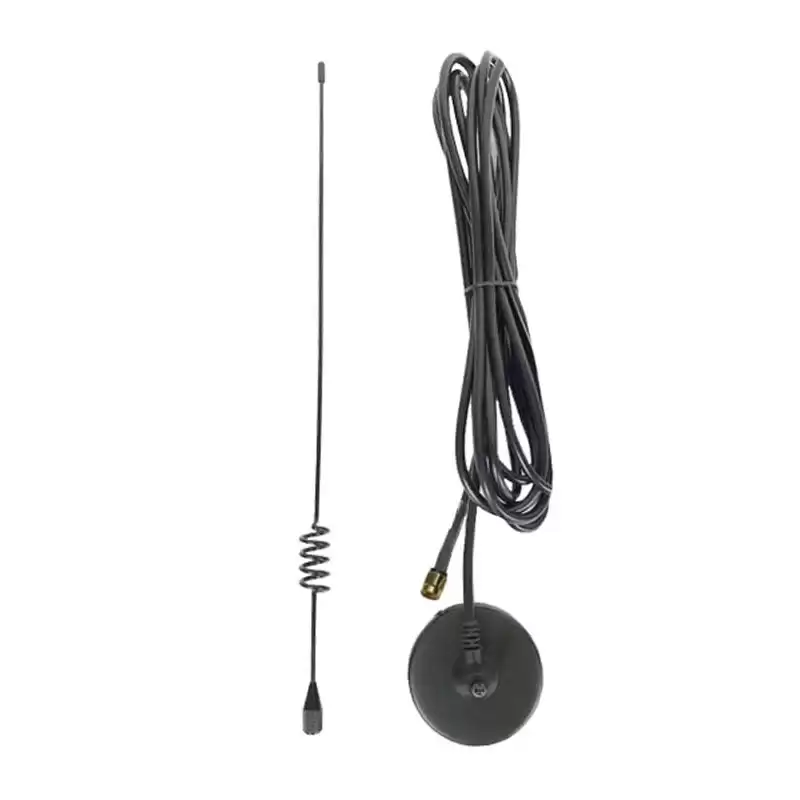

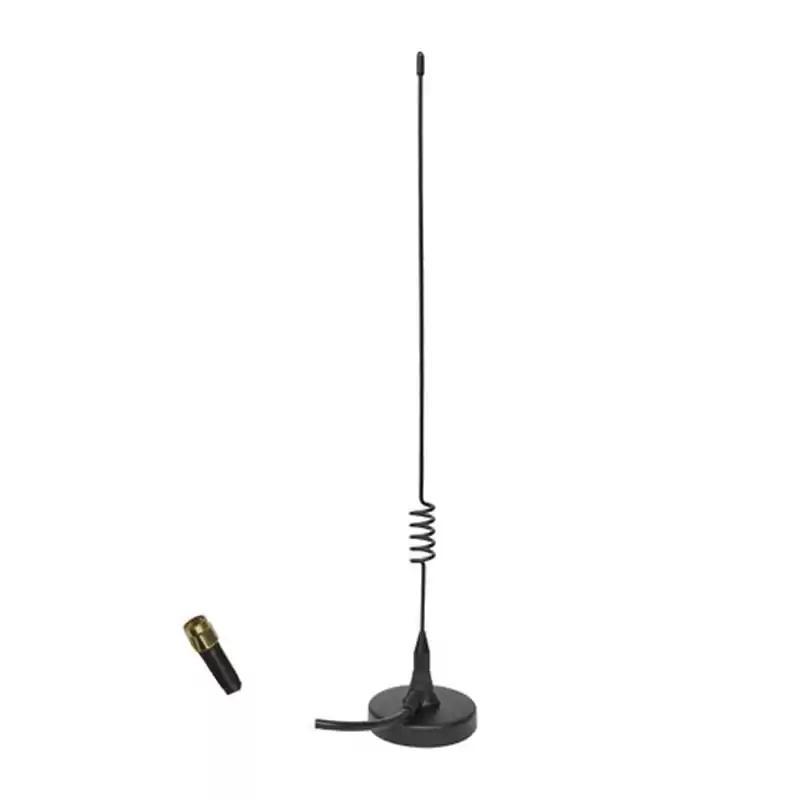

900MHz 1800MHz 5dBi GPRS GSM Antenna Magnetic Mount SMA Male Connector for Car Radio System

Features:

  • Radiation Pattern of Antenna;
  • Polarization of Antenna;
  • Intensity of Radiation;
  • Effective Aperture;
  • Gain & Directivity;
  • Bandwidth;
  • Power Gain & Radiation Efficiency;
  • Effective Length;
  • Input Impedance.



900MHz 1800MHz 5dBi GPRS GSM Antenna Magnetic Mount SMA Male Connector for Car Radio System

The Antenna, also called Aerial, component of radio, television, and radar systems that directs incoming and outgoing radio waves. Antennas are usually metal and have a wide variety of configurations, from the mastlike devices employed for radio and television broadcasting to the large parabolic reflectors used to receive satellite signals and the radio waves generated by distant astronomical objects.



Specifications

ELECTRICAL DATA
Frequency Range(MHz)  900/1800
VSWR  ≤1.5
Gain(dBi)   5dBi
Input Impedance(Ω)  50
Cable Type RG174
Connector Type  SMA Male
Mounting  Magnetic
Housing  Black
Storage Temperature  -45'c to +75'c
Operating Temperature  -45'c  to+75'c



Applications

  • Antenna Gain
  • Aperture
  • Directivity and bandwidth
  • Polarization
  • Effective length
  • Polar diagram
