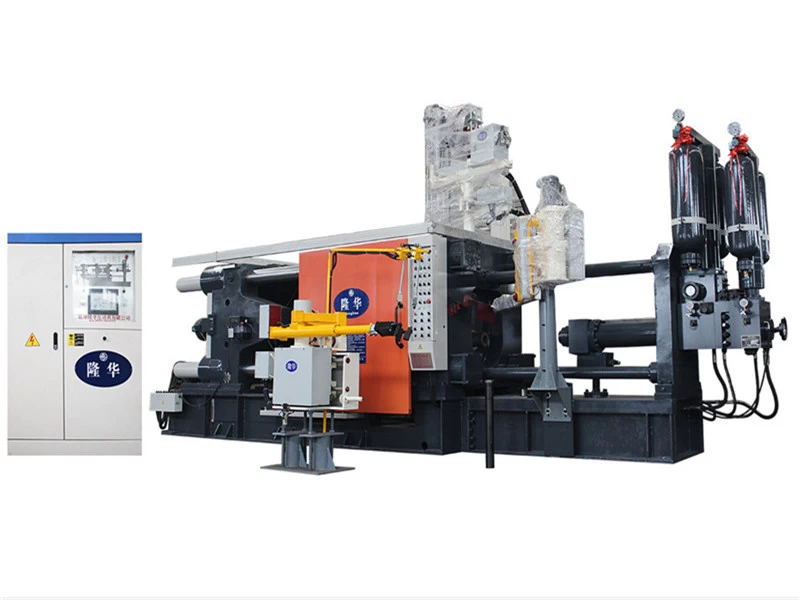

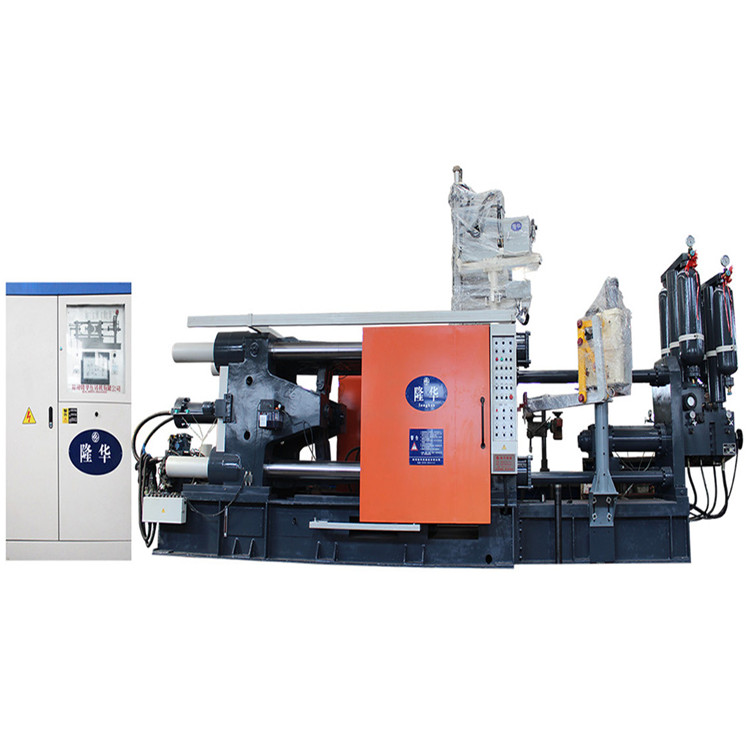

900T Horizontal Cold Chamer Die Casting Machine For Aluminium Cars parts

Cold chamber die casting machines are suitable for die pressed casting of aluminum,zinc,copper,magnesium and other non-ferrous metal.They can make door handles, electric cases, LED light housings and many other products.



Product Item:

900T Horizontal Cold Charm Die Casting Machine For Aluminium Cars parts


This die casting  machine is widely used for mass production of  foundry goods made of nonferrous metal such as aluminum, zinc and copper in industries of automobiles, motorcycles, meters and instruments, hardware and military supplies.

Horizontal Cold Chamer Die Casting Machine For Aluminium Cars parts


Horizontal Cold Charmr Die Casting Machine For Aluminium Cars parts parameter(900T)

Items

Unit

Specification

Hydraulic Working Pressure

MPa

14

Clamping Force

KN

9000

Space Between Tie Bars

mm

910*910

Tie Bar Diameter

mm

¢180

Die Opening Stroke

mm

760

Injecction Force(intensify)

KN

750

Plunger launch distance

mm

295

Injection position

mm

-- 250

Plunger Diameter

mm

¢80  ¢90   ¢100

Injection Stroke

mm

760

Casting pressure (intensify)

MPa

154/121/81

Casting Fiange Protrusion

mm

20

Casting Fiange Diameter

mm

200

(40Mpa) Max Casting Area Under40Mpa

CM2

2150

lnjection Weight(Al)

Kg

7.1/9/14

Die Height(Min--Max)

mm

350~950

Ejector Force

KN

315

Ejector Steoke

mm

180

Motor Capacity

Kw

30

Machine Dimensions  (L*W*H)

m

9.1*2.4*3.3

Referential Machine Weight For Uplifting

T

40

Oil Tank Capacity

L

1500

WE reserve the right to make any technical improvement without further notice

Automatic machine:

This die casting machine is superior in performance high in productivity and smooth in operation.

Die casting product display

Packaging & Shipping


We have been producing die casting machines for 37 years, our products are all over the world, and we have rich export experience.


After-Sales Service


After the sale, when the die casting machine arrives at your port, you send invitations, and our engineers go to your country to install and debug machines. Training the operator until you learn so far.
