GENERAL DESCRIPTION

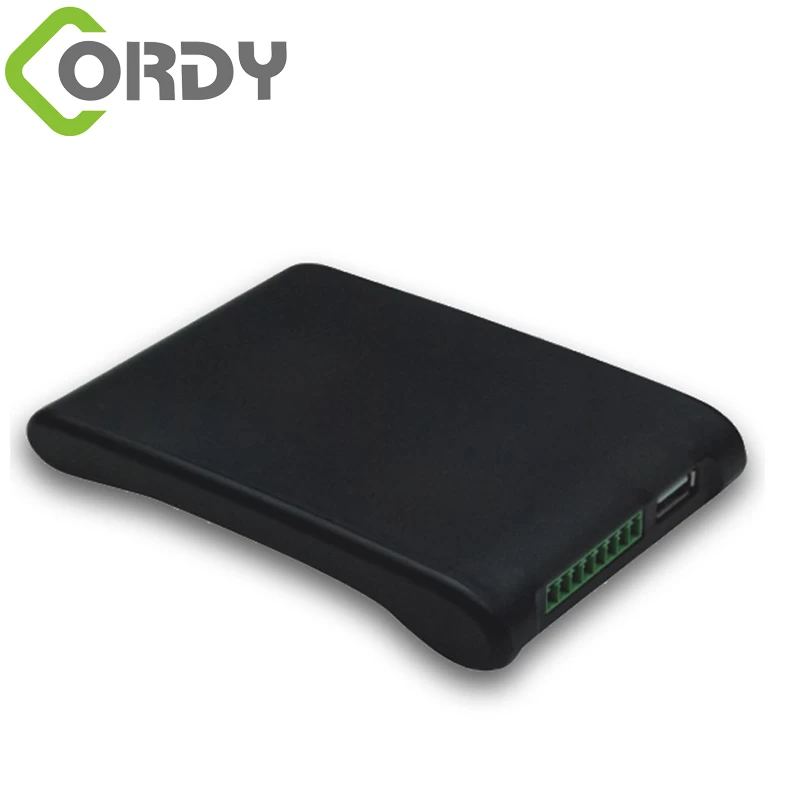

DH9809USB-L is a high performance UHF RFID
Reader. It is designed upon fully self-intellectual property. Based on
proprietary efficient digital signal processing algorithm, it supports fast tag
read/write operation with high identification rate. It can be widely applied in
many RFID application systems such as logistics, access control, attendance
system, anti-counterfeit and industrial production process control system.
FEATURES:
Self-intellectual property;
Support ISO18000-6C(EPC C1G2) ,
ISO18000-6B protocol tag;
860~868MHz, 902~928MHz frequency band(frequency
customization optional);
FHSS or Fix Frequency transmission;
RF output power up to 13dbm(adjustable);
No external power source needed;
Built-in antenna with effect distance up
to 200mm*;
Support USB2.0 interface with VSP(Virtual
Serial Port) or HID mode;
Slim outline;
Provide SDK and demo software to facilitate
further development.
Effective distance depends on protocol,
tag and environment.
