Matel 92mm x 25mm Air Cooler Axial Exhaust Fan with PWM. The PWM function can use frequency and high and low voltage levels to control the speed of cooling fan, and the fan speed can be linearly controlled by adjusting the "duty ratio", which can achieve the effect of saving energy and reducing noise.
About this item
-
Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.
-

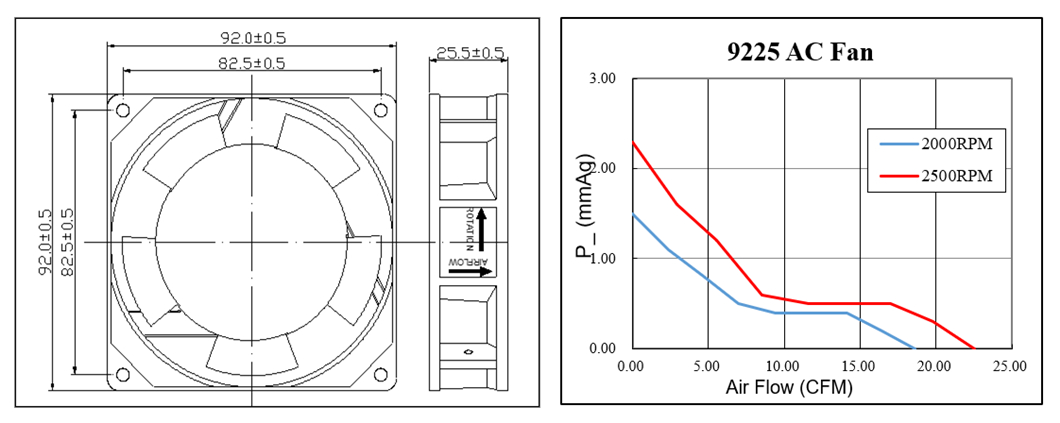

Dimension of outer the frame is 92 mm(L) x 92 mm(W) x 25 mm(H) / The size of fan in inch is 3.62 in(L) x 3.62 in(W) x 0.98 in(H); The center to center distance beween the mountiong holes is 82.5 ± 0.5 mm / 3.24 in.
-

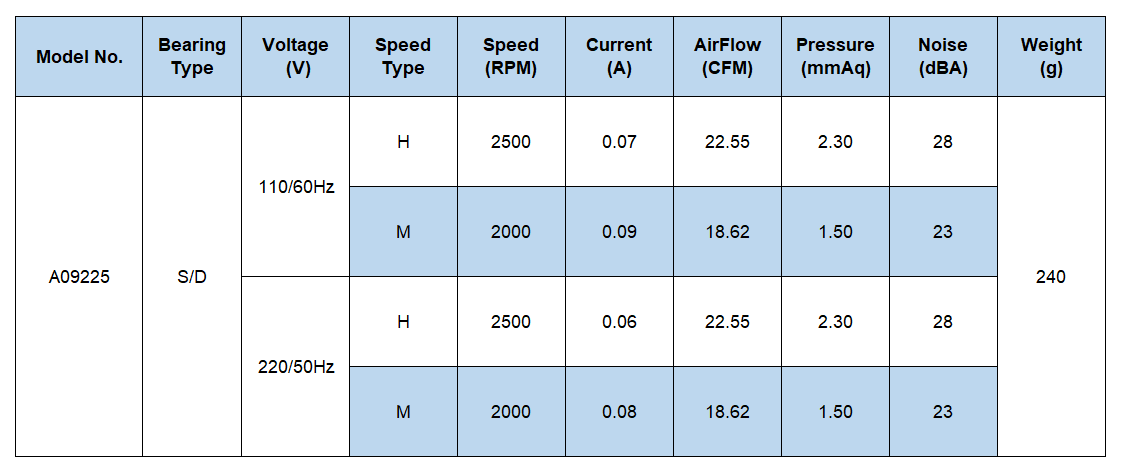

Operating Voltage Range: AC 110/60Hz; 220/50Hz | Current: 0.06 ~ 0.09 Amp | Speed: 2000 ~ 2500 RPM | Airflow: 18.62 ~ 22.55 CFM | Noise: 23 ~ 28 dBA | Pressure: 1.50 ~ 2.30 mmAq.
-
High Speed: This model is designed to maximize airflow and can be too loud for some applications.
-
Lead wire: (+): Red wire ; (-): Black wire. Bearing Type: Sleeve Bearing / Double Ball Bearing ; Life: working up to 50,000h at 25 degrees.
-
Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.

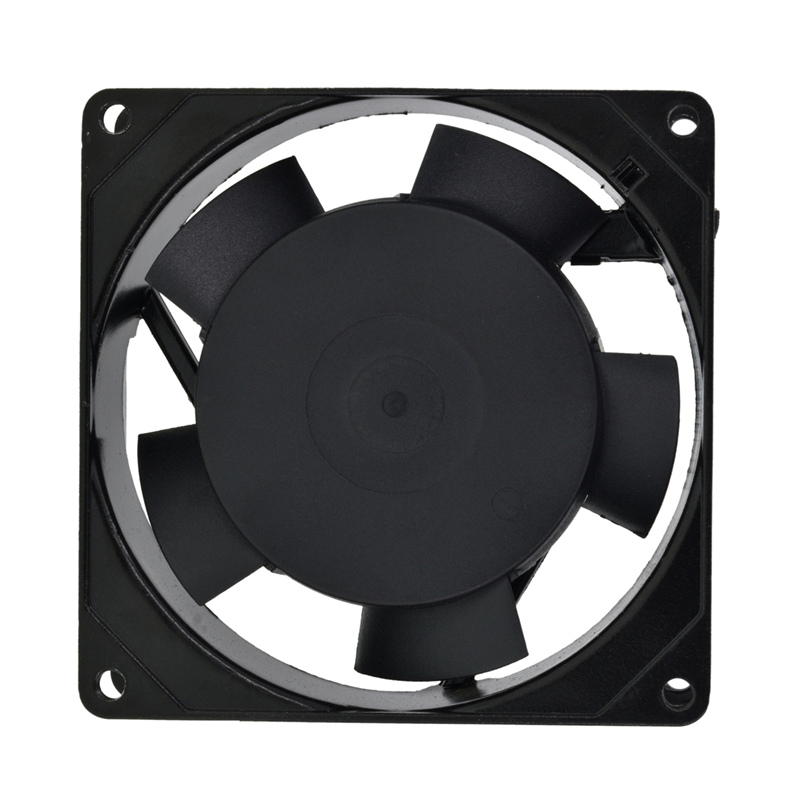

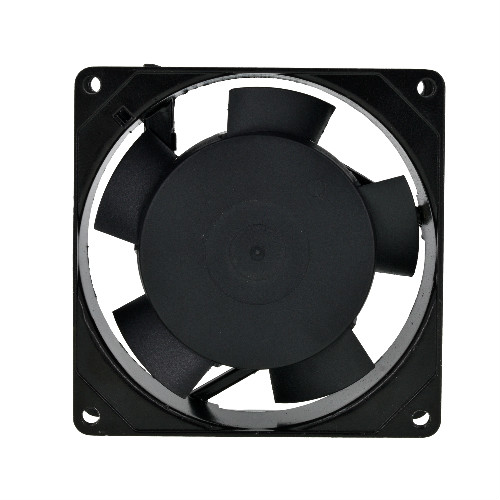

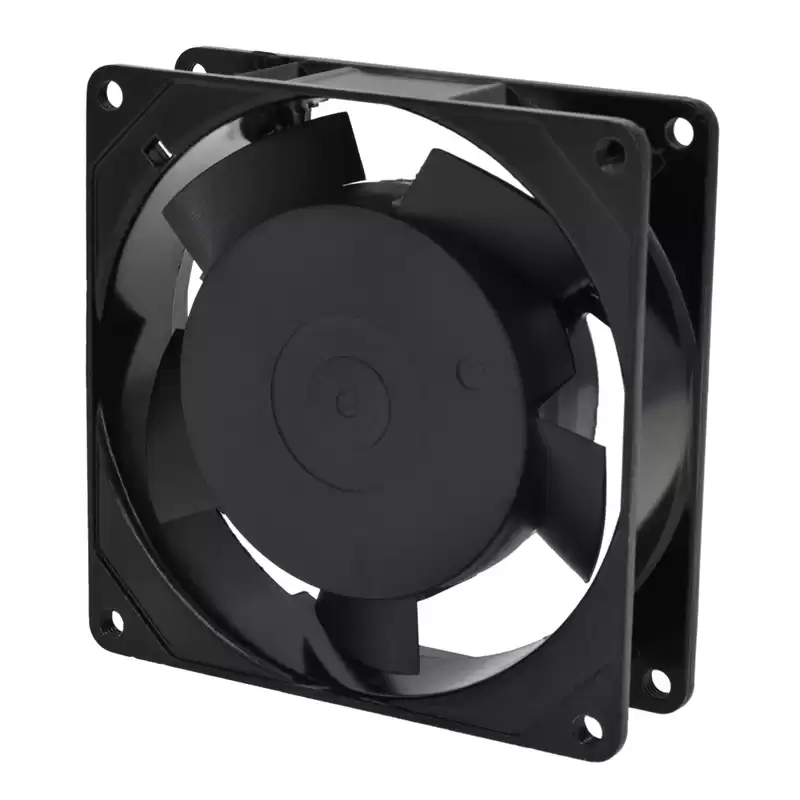

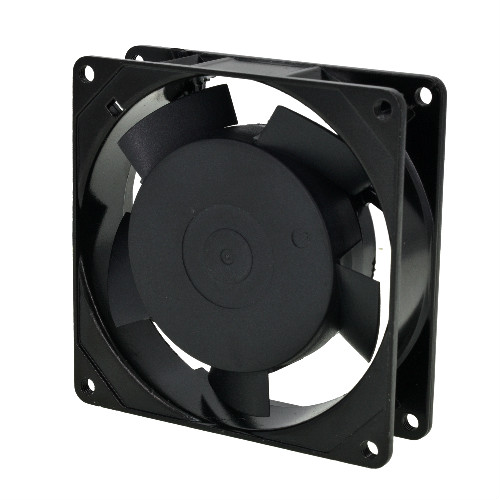

AC AXIAL FAN 92x92x25mm(3.62"x3.62"x0.98")
General Specification:
Frame: Aluminum Alloy
Impeller: PBT(Black)UL94V-0
Operating Temperature: -10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing
·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.
Feature
-
Have a good cooling cool-to-cool properties;
-
Pressure-optimised blade design with outstanding quietness of operation;
-
Can be added are Auto Start, Rotation Detector, Tachometer Output, and more;
-
UL-certified AC-powered fan designed to cool various electronics and components;
-
Long life cycle, low noise, high efficiency, meet the strict test of waterproof and dustproof.
More Models
These fans are available in several sizes to accommodate diverse applications—such as those found in tight spaces or difficult to reach areas.
