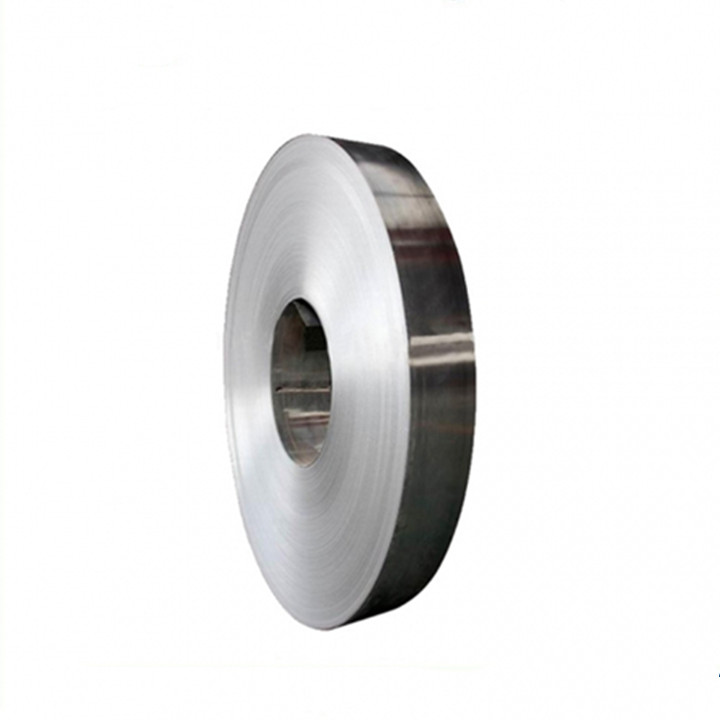

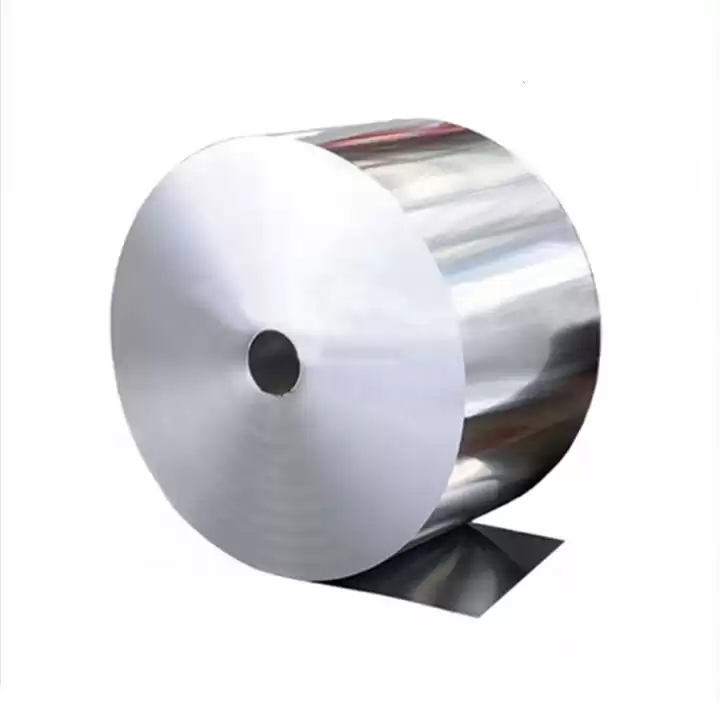

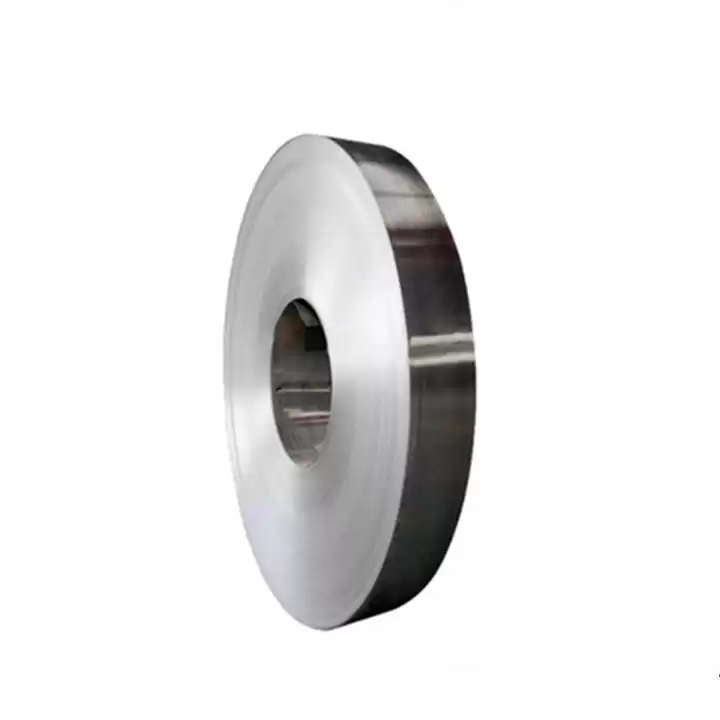

99.9% Purity Aluminium Foil Roll For Battery Anode Raw Material

Wechat:18659217588

Whatsapp:+86 13174506016

Email:David@batterymaking.com

Aluminum Foil Roll For Battery Anode Raw Material

Aluminum foil specification

Item

Type 1(T-AL-16)

Type 2(T-AL-12)

Width

customized

customized

Thickness

16±1 um

12±1um

Areal density

42~46g/ m²

30~34g/m²

With transverse surface density uniformity

≤0.003 g/ 40×40 mm

≤0.003 g/ 40×40 mm

The same volume of vertical surface density uniformity

≤0.03 g/ 400×40 mm

≤0.03 g/ 400×40 mm

High temperature oxidation resistance (200°C*30min)

No oxidation

No oxidation

Connect no

<2

<2

Chemistry content(Al)

>99.45%

>99.45%

Extensibility

<0.5%

<0.5%

Normal temperature Tensile strength

kgf /mm²

>180

>140

After 120⁰C baking 1h, Tensile strength kgf/mm²

>160

>120

Product Tags battery current collector current collectors current collector manufacturer current collector assembly what is current collector current collector of madurai hfp52 current collector calculate collector current 25a current collector

Aluminum foil specification
Item	Type 1(T-AL-16)	Type 2(T-AL-12)
Width	customized	customized
Thickness	16±1 um	12±1um
Areal density	42~46g/ m²	30~34g/m²
With transverse surface density uniformity	≤0.003 g/ 40×40 mm	≤0.003 g/ 40×40 mm
The same volume of vertical surface density uniformity	≤0.03 g/ 400×40 mm	≤0.03 g/ 400×40 mm
High temperature oxidation resistance (200°C*30min)	No oxidation	No oxidation
Connect no	<2	<2
Chemistry content(Al)	>99.45%	>99.45%
Extensibility	<0.5%	<0.5%
Normal temperature Tensile strength kgf /mm²	>180	>140
After 120⁰C baking 1h, Tensile strength kgf/mm²	>160	>120
