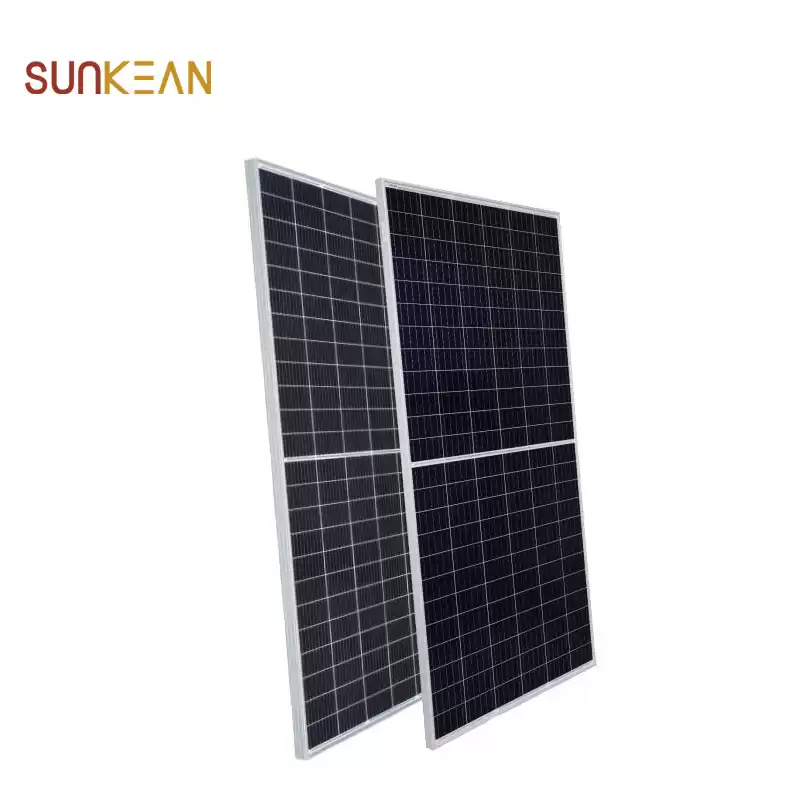

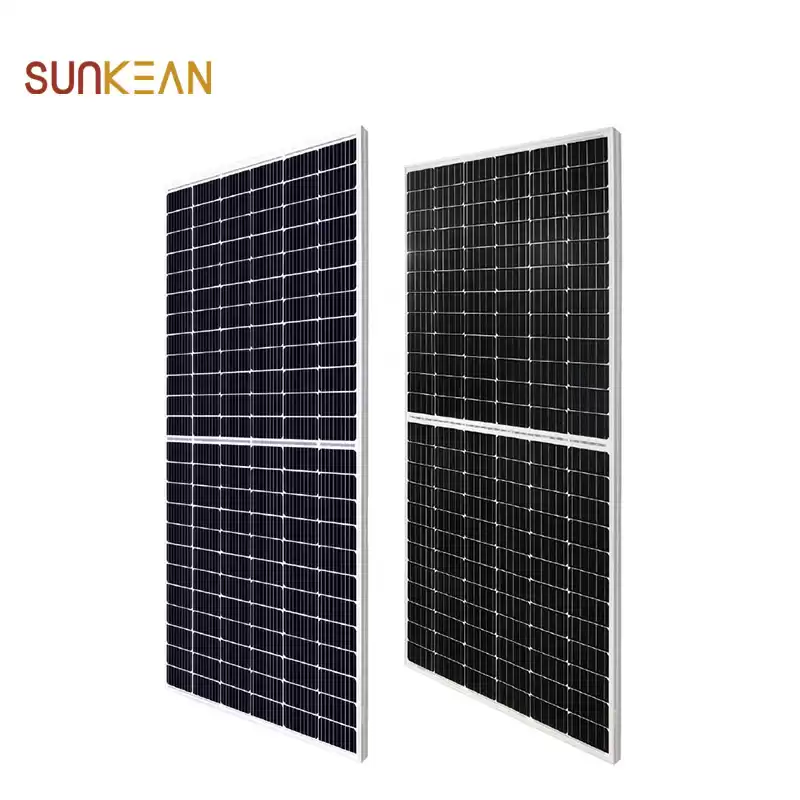

9BB Half Cut PERC Mono 144Cells PV Modules 445w Solar Panel
The unique cell design leads to reduced electrodes resistance and smaller current, thus enables higher fill factor. Meanwhile, it can reduce losses of mismatch and cell wear, and increase total reflection.
Product Information:
|
Electrical Characteristics
|
|
STC
|
STPXXXS-B72/Vnh
|
|
Maximum Power at STC (Pmax)
|
450 W
|
445 W
|
440 W
|
435 W
|
430 W
|
|
Optimum Operating Voltage (Vmp)
|
41.4 V
|
41.2V
|
41.0V
|
40.8 V
|
40.6 V
|
|
Optimum Operating Current (Imp)
|
10.87 A
|
10.81 A
|
10.74 A
|
10.67 A
|
10.60 A
|
|
Open Circuit Voltage (Voc)
|
49.2 V
|
49.0 V
|
48.8 V
|
48.6 V
|
48.4 V
|
|
Short Circuit Current (Isc)
|
11.61 A
|
11.54A
|
11.47 A
|
11.40 A
|
11.32 A
|
|
Module Efficiency
|
20.7%
|
20.4%
|
20.2%
|
20.0%
|
19.8%
|
|
Operating Module Temperature
|
-40 °C to +85 °C
|
|
Maximum System Voltage
|
1500 V DC (IEC)
|
|
Maximum Series Fuse Rating
|
20 A
|
|
Power Tolerance
|
0/+5W
|
STC:Irradiance 1000 W/m2, module temperature 25 °C, AM=1.5；
Tolerance of Pmax is within +/- 3%.
|
NMOT
|
STPXXXS-B72/Vnh
|
|
Maximum Power at NMOT (Pmax)
|
339.4 W
|
335.8 W
|
332.7W
|
327.7 W
|
324.6 W
|
|
Optimum Operating Voltage (Vmp)
|
38.2 V
|
38.0 V
|
37.8 V
|
37.6 V
|
37.5 V
|
|
Optimum Operating Current (Imp)
|
8.89 A
|
8.84 A
|
8.78 A
|
8.73 A
|
8.67 A
|
|
Open Circuit Voltage (Voc)
|
46.2 V
|
46.0 V
|
45.8 V
|
45.5 V
|
45.4 V
|
|
Short Circuit Current (Isc)
|
9.37 A
|
9.31 A
|
9.25 A
|
9.20 A
|
9.13 A
|
NMOT： Irradiance 800 W/m2, ambient temperature 20 °C, AM=1.5, wind speed 1 m/s.
|

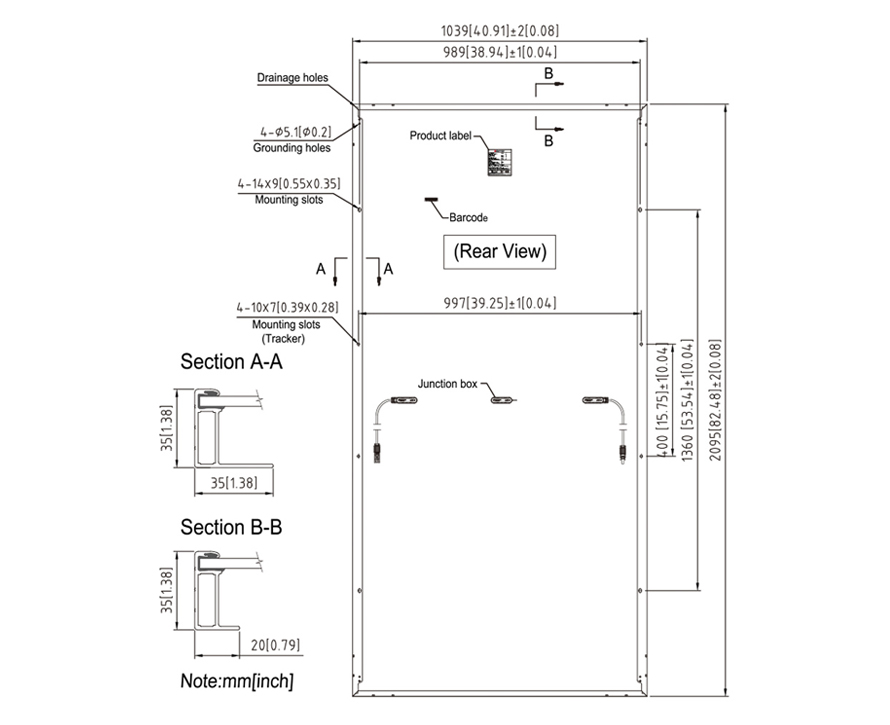

Mechanical Characteristics
|
|
Solar Cell
|
Mono crystalline silicon 166 mm
|
|
No. of Cells
|
144 (6x24)
|
|
Dimensions
|
2095 X 1039X 35 mm (82.5 X 40.9 X 1.4 inches)
|
|
Weight
|
24.5 kgs (54.0 lbs.)
|
|
Front Glass
|
3.2 mm (0.13 inches) tempered glass
|
|
Frame
|
Anodized aluminium alloy
|
|
Junction Box
|
IP68 rated (3 bypass diodes)
|
|
Output Cables
|
4.0 mm2
Portrait: (-)350 mm and (+) 160 mm in length
Landscape: (-)1400 mm and (+)1400 mm in length or customized length
|
|
Connectors
|
MC4 EVO2Z Cable 01S
|
Product Features:
-----High power output
Compared to 158.75mm module, the power output can increase 25W-30W
-----High PID resistant
Advanced cell technology and qualified materials lead to high resistance to PID
-----Excellent weak light performance
More power output in weak light condition, such as haze, cloudy, and morning
-----Lower operating temperature
Lower operating temperature and temperature coefficient increases the power output
-----Extended load tests
Module certified to withstand front side maximum static test load (5400 Pascal) and rear side maximum static test loads (3800 Pascal)
-----Withstanding harsh environment
Reliable quality leads to a better sustainability even in harsh environment like desert, farm and coastline
Solar panel production process:

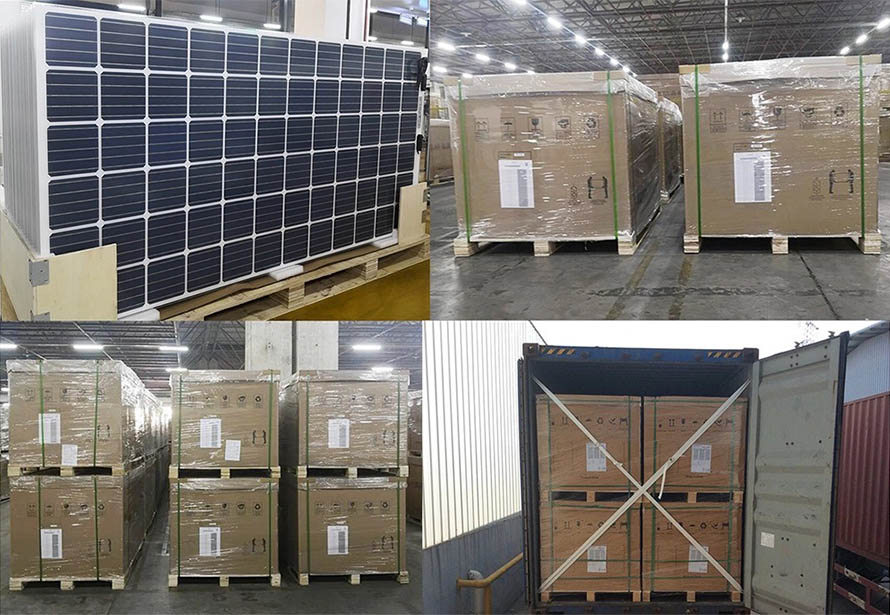

Packing & Delivery:
Application Scenario:
Company Profile:
SUNKEAN is a fast-growing solar company ,as well as a turnkey solution provider in China. Products cover monocrystalline solar panels,house solar power system, home solar panel , mono perc half cell solar panels, 100 watt solar panel, photovoltaic inverter,half cell solar module etc solar products .
SUNKEAN is committed to providing the best solutions for users, installers, investors and all stakeholders. We always take the responsibility on customer’s demands. We make our effort for innovations and breakthroughs.
If you are an end users , we can offer more detail information to you.Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
