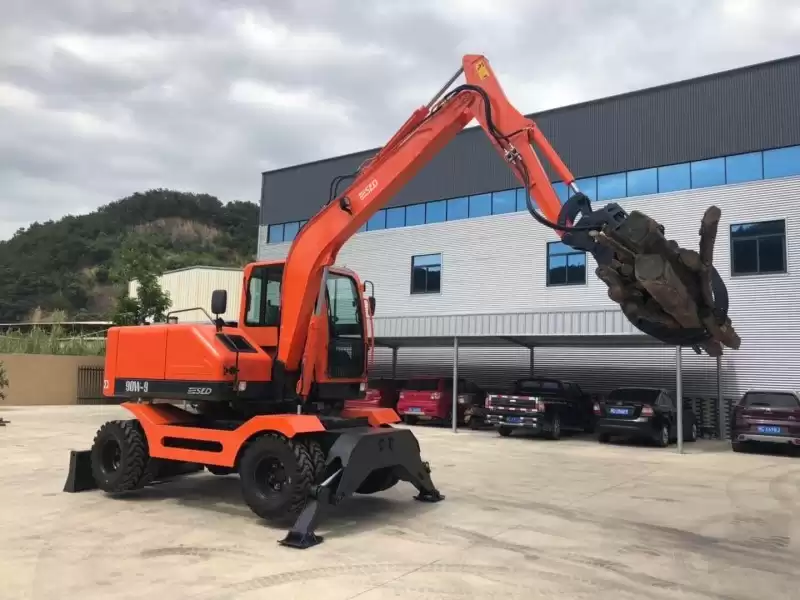

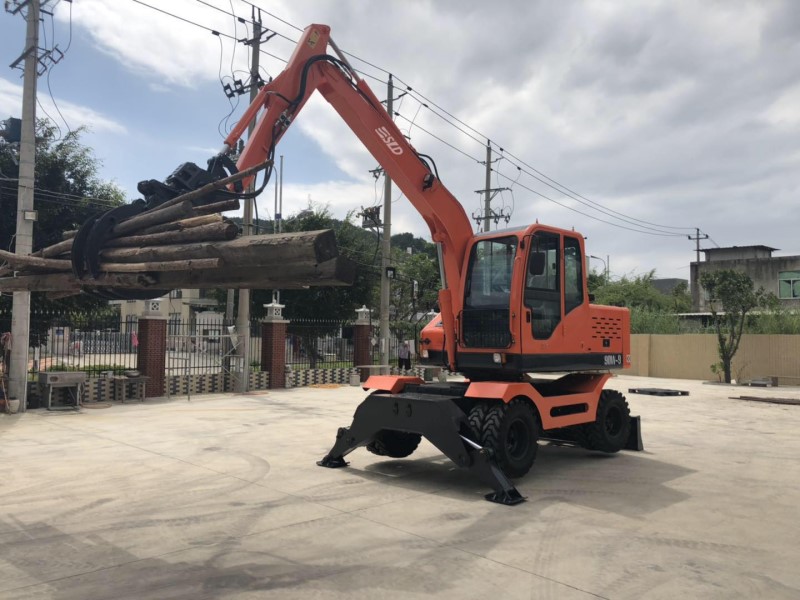

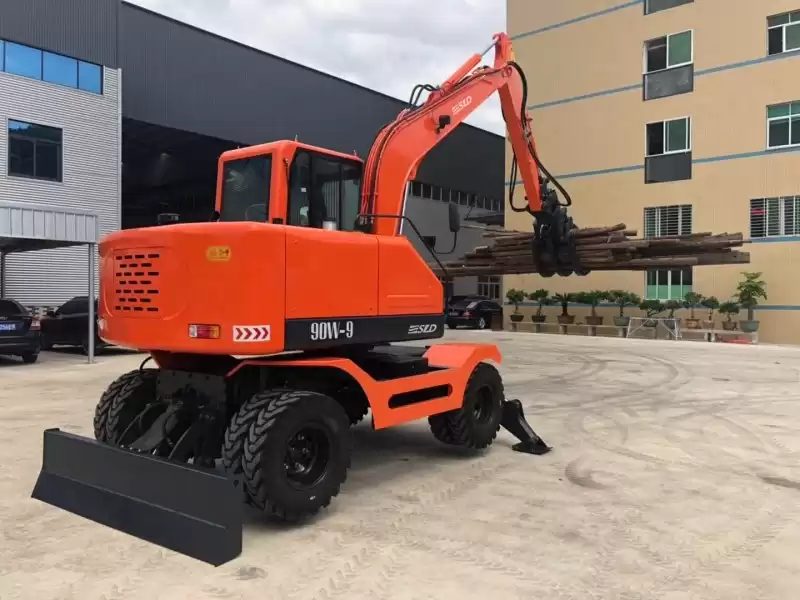

9ton wheel excavator with wooden clamp and dozzer blade

Model: XH90W-9

Boom length: 3700 mm

Arm length: 1900 mm

Overall size (LxWxH): 6500x2180x2930 mm

Wheelbase: 2400 mm

Rated power: 50 kw

Operating weight: 6900 kgs

Attachments: bucket, Wood clamp, sugarcane clamp, breaking hammer etc.






9 ton wheel excavator the whole machine is beautiful and smooth. Luxury wide view cabin, low noise, good sealing. We cooperate with hercynian institute of Chinese Academy of Sciences "overall structure optimization scheme", verifies the stiffness and strength calculation, fatigue life forecast on the excavator, comprehensive finite element mechanics analysis, structure design optimization, ensure the security of the products use. Using domestic high quality electrical components, maintenance-free battery, the wire resistance of flame retardant materials, reliable and durable. Cabin matched with fan, radios, air conditioner, and multifuction electronic monitor.


Main Fetures:

1, Adopt Yuchai turbocharging diesel engine, strong power, energy conservation, environmental protection, satisfies the requirement of high efficiency operation.
2. The transmission, hydraulic pump, main valve, rotary motor, hydraulic cylinder, joystick control valve all adopt domestic famous brands
3, Full hydraulic load sensing steering system, small turning radius, flexible steering, hydraulic system equipped with oil radiator and back pressure protection device, ensure the machine heat balance.
4, Use heavy excavators drive axle, four-wheel drive, spiral bevel gear and wheel planetary wheel deceleration increasing twist, big load capacity, long service life.
5, Use four-wheel drum brake, the rear air tank, 18 times braking pressure strength ratio, safer and more reliable working
6. Double oil cylinder vibration absorber control, optional to match with dozer blade and out trigger, remain in a stable condition during working and walking
7. Working arm and bucket rod adopt large cross section box structure, high strength, to meet requirements of the heavy work. Beams on both sides of the slewing platform use D word structure, can resist the external strong shock Standard with bucket, and can be fitted with hammer, wood grab, screw drill, etc. according to customer requirements.

8, With massive deepen heavy tire, front steering axle can swing around the center, have good traction performance and passing performance.
9, Matched with adjustable direction, airline seats, joystick control distributing valve and working device, flexible and convenient manipulation
10, Domestication parts, standardization, cost-effective, parts commonality good easy procurement, daily maintenance is simple and quick.

Specifications:

Item

Unit

XH90W-9

Boom length

mm

3700

Arm length

mm

1900

Overall Dimension

Overall length (when delivery)

mm

6500

Overall width

mm

2180

Overall height (cabin)

mm

2930

Overall height (when drive)

mm

2930

Dimension

Wheeltread

front

mm

1670

rear

mm

1679

Wheelbase

mm

2400

Min. ground clearance  (plateform)

mm

1110

Rear tail wing radius

mm

2000

Chassis width

mm

2100

Min. ground clearance( chassis, bottom of transmission)

mm

320

Width ( up-part)

mm

2050

Working Range

Max. digging height

mm

7200

Max. dumping height

mm

5500

Max. digging depth

mm

3350

Max. digging depth (vertical)

mm

2890

Max. digging radius

mm

6900

Max. digging distance

mm

6720

Min.turning radius

mm

2570

Max. height(when Min.turning radius )

mm

5500

Max.ground clearance (when Bolldoze blade up)

mm

300

Max.depth (when Bolldoze blade down)

mm

100

Performance

Operating weight

kg

6900

Bucket capacity

0.2~0.3

Drive speed

Forward II

km/h

5

Forward II

km/h

10

Forward III

km/h

17

Forward IV

km/h

28

Forward V

km/h

32

Reward gear

km/h

5

Clambing capacity

°

30

Turning speed

rpm

10

Engine

Manufacturer

Yuchai

Model

YC4FA65-T300

Displacement

L

2.982

Rated power / rated speed

kW/rpm

48/2200

Max.torque

N.m/rpm

243/1600

Pump

Type

Plunger pump

Flow

L/min

2X59.4

Main relief valve pressure

MPa

21

Oil type

Fuel oil tank capacity

L

100

Hydraulic oil tank capacity

L

118

Driving part

Tires number

8

Size

8.25-16/16PR

Front axle wing angle

°

8

Attachment

Clamp
