A74104-231-53
|
|
Dimensions:23.1x25.7x7cm
|
Input Voltage range：18-30VDC
|
Temperature operating : 0℃ - +60℃
|
|
Weight: 1.3KG
|
Voltage：200 VDC
|
Temperature storage : -40℃- +85℃
|
|
A74104-231-53
|

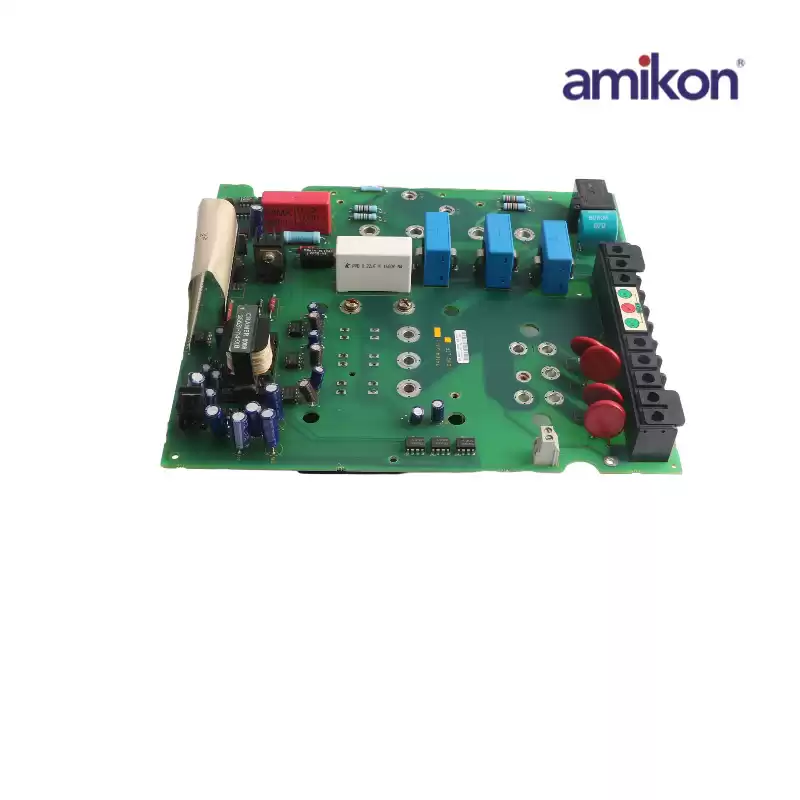

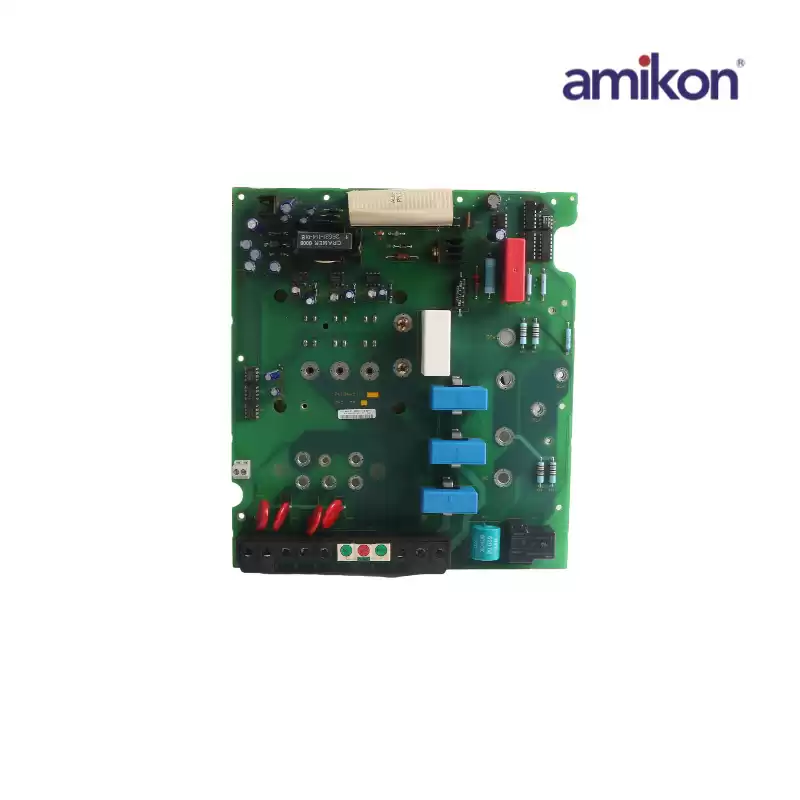

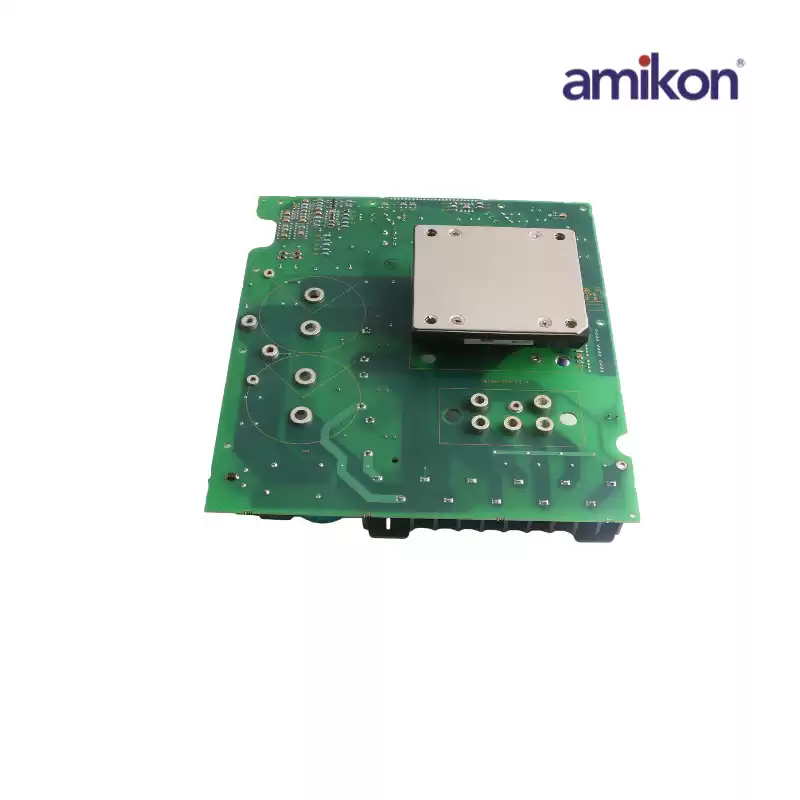

The A74104-231-53 is FDrive Board.The Standard I/O of the 1336 FORCE Drive must be checked to verify proper operation.
The Standard I/O is used to interface control circuits into the drive. It is very important that this interface is functioning properly.p.
The master drive receives its speed reference from a speed pot wired to analog input 1 on a PLC Comm board. P339 (Analog In1) is linked to P101 (Ext Vel Ref) on the master drive.
|
|
