MVME162-262

Brand Name                 AB

Product reference       1747-L524

The 1747-L524 SLC Processor contains 4K instructions of user memory, max. The number of I/O for 1747L524 is 4096 in + 4096 out absolute maximum. Local analog I/O, max. for the processor is 480. It has a program scan time of 4.8ms (tpy), and I/O scan time of 1.6ms (typ). Number of I/O module slots in the local I/O chassis (max) is 30; number of local I/O chassis (max) is 3. Backup memory is eeprom, battery-backed RAM is standard. Processor contains a backplane current load of 350mA at 5V DC or 105mA at 24V DC.

ControlNet Messaging Module

The 1747-KFC15 module provides the capability for an SLC 5/03, 5/04, and 5/05 processor to send or receive unscheduled ControlNet messages. With unscheduled messaging, the SLC controller program can send peer-to-peer messages or be accessed and edited over the ControlNet network using RSLogix 500 software. The 1747-KFC15 consumes 0.640 A at 5V dc. The ControlNet Messaging Module features: 4-digit, 7-segment display for node address and module status. RS-232 KFC to SLC cable (included). media redundancy via dual BNC connectors. power from the SLC chassis backplane. ability to upgrade firmware via ControlFlash.

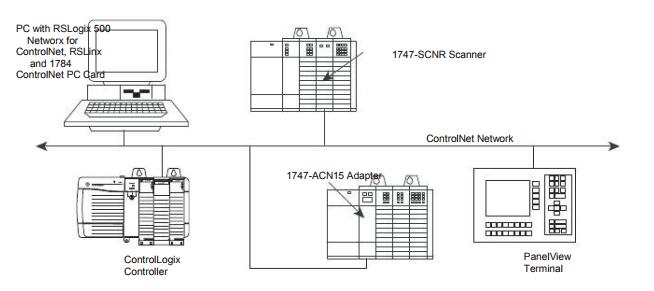

ControlNet Scanner Module The 1747-SCNR module provides scheduled ControlNet network connections for SLC 5/02, 5/03, 5/04, and 5/05 processors. With scheduled messaging, the SLC processor can control I/O events in real time on the ControlNet network. The 1747-SCNR module can

communicate with the 1771-PLC5C, 1756-Lx controllers, and with another 1747-SCNR module via scheduled messages on the ControlNet network. The 1747-SCNR module consumes 0.900 A at 5V dc. The ControlNet Scanner Module features: media redundancy via dual BNC connectors. ability to upgrade firmware via ControlFlash. The 1747-SCNR module can control 1788-CN2DN and 1788-CN2FF linking devices as well as a variety of I/O platforms. The table below indicates with a ― ― which I/O platforms the 1747-SCNR module can control.

ControlNet Adapter Modules The 1747-ACN15 and -ACNR15 modules enable up to three 1746 chassis of I/O modules to produce/consume scheduled I/O on the ControlNet network. Both modules are compatible with all 1746 discrete, analog, and specialty I/O, except those requiring G-file configuration, such as the 1747-SN and 1747-BSN modules. The 1747-ACN15 and ACNR15 modules consume 0.9A at 5V dc. The ControlNet Adapter Modules feature: optional media redundancy via dual BNC connectors (1747-ACNR15). individual connection to single modules or chassis connections to groups of discrete modules. ability to upgrade firmware via ControlFlash. The table below indicates with a ― ― which ControlNet controllers can communicate to the 1747-ACN via scheduled messaging.
