☑Product Description
|
Model
|

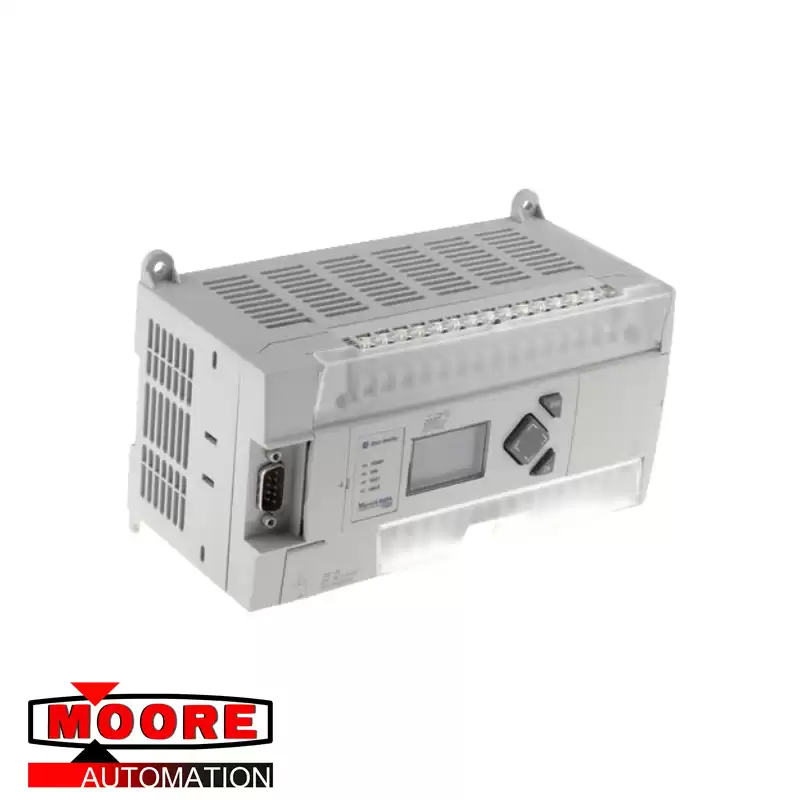

1766-L32BXB
|
|
Dimensions, HxWxD
|
90 x 180 x 87 mm
3.5 x 7.087 x 3.43 in.
|
|
Shipping weight
|
0.9 kg (2.0 lbs)
|
|
Number of I/O
|
24 inputs (20 digital and 4 analog) and 14 outputs (12 digital and 2 analog)
|
|
Power supply voltage
|
24V DC (-15%, +10%) Class; 2 SELV
|
|
Heat dissipation
|
Refer to the MicroLogix 1400 Programmable Controllers User Manual
|
|
Power supply inrush current
|
24V DC: 15 A for 20 ms
|
|
Power consumption
|
50W
7.5W (with no 1762 expansion I/O)
|
|
24V DC sensor power
|
none
|
|
Input circuit type
|
Digital: 24V DC sink/source (standard and high-speed)
Analog: 0 10V DC
|
|
Output circuit type
|
Relay/FET
|
|
Relay life - Electrical
|
Refer to Relay Life Chart
|
|
Relay life - Mechanical
|
20,000,000 cycles
|
|
Enclosure type rating
|
None (open-style)
|
|
Wire size
|
0.25 2.5 mm? (22 14 AWG) solid or stranded copper wire rated @ 90 ?C
(194 ?F) or greater.
|
|
Wiring category?
|
2 - on signal ports
2 - on power ports
3 - on communications ports
|
|
Terminal screw torque
|
0.79 Nm (7.0 in-lb) rated
|
|
Pilot duty rating
|
C300, R300
|
|
Expansion bus
|
Supports up to seven 1762 modules, up to a maximum of 5V, 1500 mA and 24 V, 1500 mA.
|
|
North American temp code
|
T3C
|
