AB | 1769-IT6 | (IN STOCK&READY TO SHIP)

Contact: Miya

Job Title: Sales Manager

Skype: live:miyazheng520

Email: sales@amikon.cn

Tel: 86-18020776792(Whats App )

QQ :2851195450

ATTENTION!

PAYMENT: T/T 100% IN ADVANCE

Lead Time : 3-5 Days

Minimum Order Quantity : 1 Piece

Warranty : 1 Year

Shipment: DHL,UPS,FEDEX,ARAMAX,TNT,etc.

1769-IT6

Brand Name                 AB

Product reference       1769-IT6

EMC Directive

The 1769-IT6 module is tested to meet Council Directive 89/336/EEC Electromagnetic Compatibility (EMC) and the following standards, in whole or in part, documented in a technical construction file: • EN 50081-2 EMC—Generic Emission Standard, Part 2 - Industrial Environment • EN 50082-2 EMC—Generic Immunity Standard, Part 2 - Industrial Environment This product is intended for use in an industrial environment.

Low Voltage Directive

This product is tested to meet Council Directive 73/23/EEC Low Voltage, by applying the safety requirements of EN 61131-2 Programmable Controllers, Part 2 – Equipment Requirements and Tests. For specific information required by EN61131-2, see the appropriate sections in this publication, as well as the Industrial Automation, Wiring and Grounding Guidelines for Noise Immunity, publication 1770-4.1.

Power Requirements

The module receives power through the bus interface from the 5/24V DC system power supply. The maximum current drawn by the module is: • 100 mA at 5V DC. • 40 mA at 24V DC.

General Considerations

Compact I/O modules are suitable for use in an industrial environment when installed in accordance with these instructions. Specifically, this equipment is intended for use in clean, dry environments (Pollution Degree 2(1)) and to circuits not exceeding Over Voltage Category II(2) (IEC 60664-1).(3)

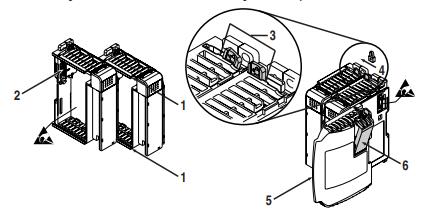

1. Check that the bus lever of the module to be installed is in the unlocked (fully right) position.

2. Use the upper and lower tongue-and-groove slots (1) to secure the modules together (or to a controller).

3. Move the module back along the tongue-and-groove slots until the bus connectors (2) line up with each other.

4. Push the bus lever back slightly to clear the positioning tab (3) by using your fingers or a small screwdriver.

 5. Move the bus lever fully to the left (4) until it clicks to allow communication between the controller and module.

Addtional similar product

KUKA	MFC2 MFC2-IC3 00-125-236 00-108-766
KUKA	ESC-PLATINE
KUKA	SPS-DY150H/00-105-904
KUKA	KVGA 1.0-71-039-276
KUKA	VKCP2
KUKA	KPS-600/20-ESC
THERMO	3050
TOKUDA	TPG-1RM
	If you have any question pls do not hesitate to contact us.We can supply all kind of the automaiton parts,if you want to purchase parts pls send the parts model to my mail, I will prompt reply you asa I receive the mail.Hope anyone enquire from us.    Waiting for your inquiry.
