AB | 1786-BNC| (IN STOCK)

Contact: Miya

Job Title: Sales Manager

Skype: live:miyazheng520

Email: sales@amikon.cn

Tel: 86-18020776792(Whats App )

QQ :2851195450

ATTENTION!

PAYMENT: T/T 100% IN ADVANCE

Lead Time : 3-5 Days

Minimum Order Quantity : 1 Piece

Warranty : 1 Year

Shipment: DHL,UPS,FEDEX,ARAMAX,TNT,etc.

 1786-BNC

Brand Name                 AB

Product reference       1786-BNC

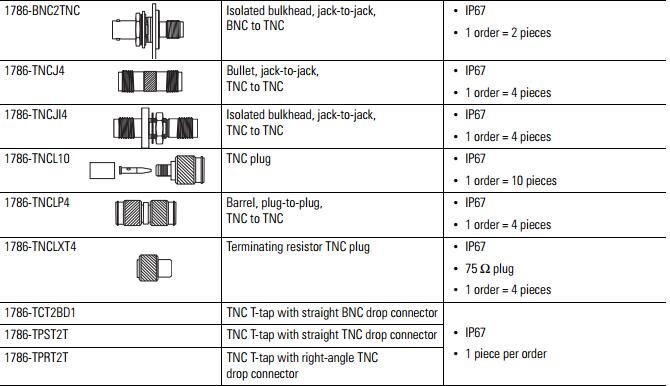

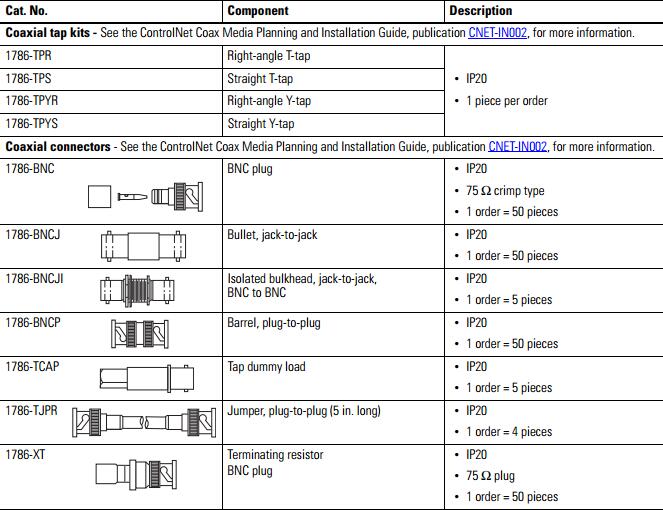

The trunk cable (catalog number 1786-RG6) is a low-loss, RG-6 quad-shield coaxial cable. It’s the bus or central part of the coax media system. The trunk cable is composed of multiple sections of cable. You can use several types of special-use cables, such as flexible (1786-RG6F), direct burial, or plenum rated, that are available from third-party vendors. Choose the cable type based on the application and or environment where your system is being installed. A cable connector (catalog number 1786-BNC) attaches coax trunk-cable sections to a tap’s BNC connector. Standard BNC connectors twist and lock onto the cable. However, these connectors are not designed for rugged conditions, such as vibration, water, and so forth. Use IP67 media connectors (catalog number 1786-TNC) that have screw threads for harsh environmental conditions.

A 75 Ω terminating resistor must be installed on the tap at each end of a trunk-cable section. Terminating resistors absorb the electrical energy of the signal at the ends of the cable to prevent reflections, which interfere with signals that are being sent. Two types of terminating resistors are available depending on the connectors and taps that are being used on a trunk line. There is a BNC terminating resistor (catalog number 1786-XT) and a TNC terminating resistor (catalog number 1786-TNCLXT4).

Our advantages:

Industrial automation spare parts failure often causes tens of thousands of business losses to the enterprise.AMIKON LIMITED is the

world's leading provider of high quality industrial automation spare parts, whether it is a new spare parts, or outdated / discontinued parts, and the technology is dedicated to the normal operation of the enterprise at the best cost, the best quality and efficient way.

Whether it is customer service, work efficiency or delivery speed, we always strive for excellence and to be better and better.

The philosophy of excellence is integrated into all aspects of our

service.AMIKON LIMITED will be the best staff and spare parts together, adhere to provide customers with first-class service.

Professional multilingual service team

A large number of parts inventory, lower the costs of waiting for maintenance

Without any expedited fee, fee or implicit charges

We deliver diversified industrial parts

Addtional similar product

	If you have any question pls do not hesitate to contact us.We can supply all kind of the automaiton parts,if you want to purchase parts pls send the parts model to my mail, I will prompt reply you asa I receive the mail.Hope anyone enquire from us.    Waiting for your inquiry.
