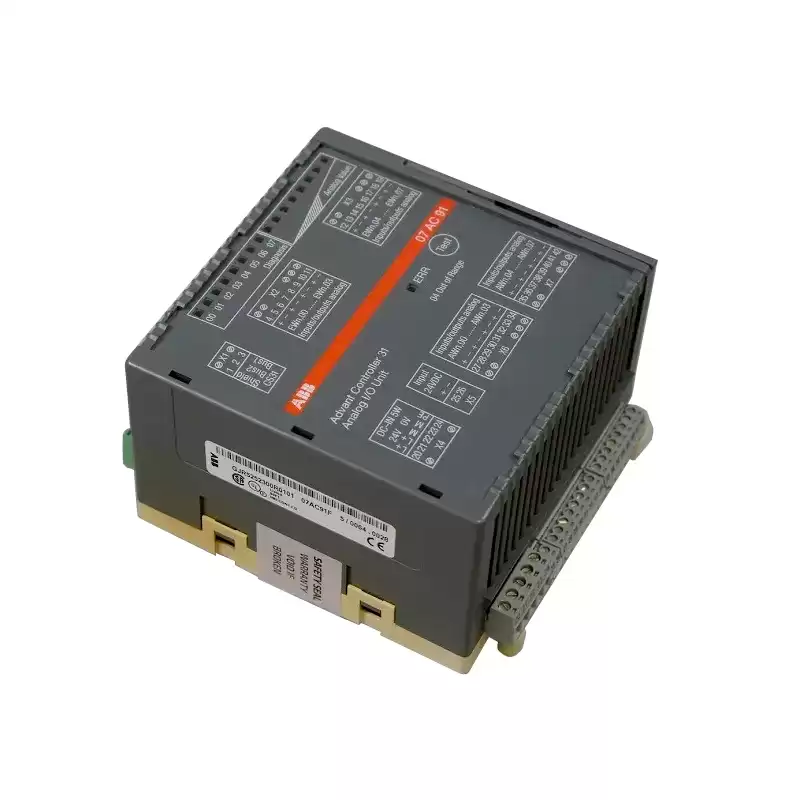

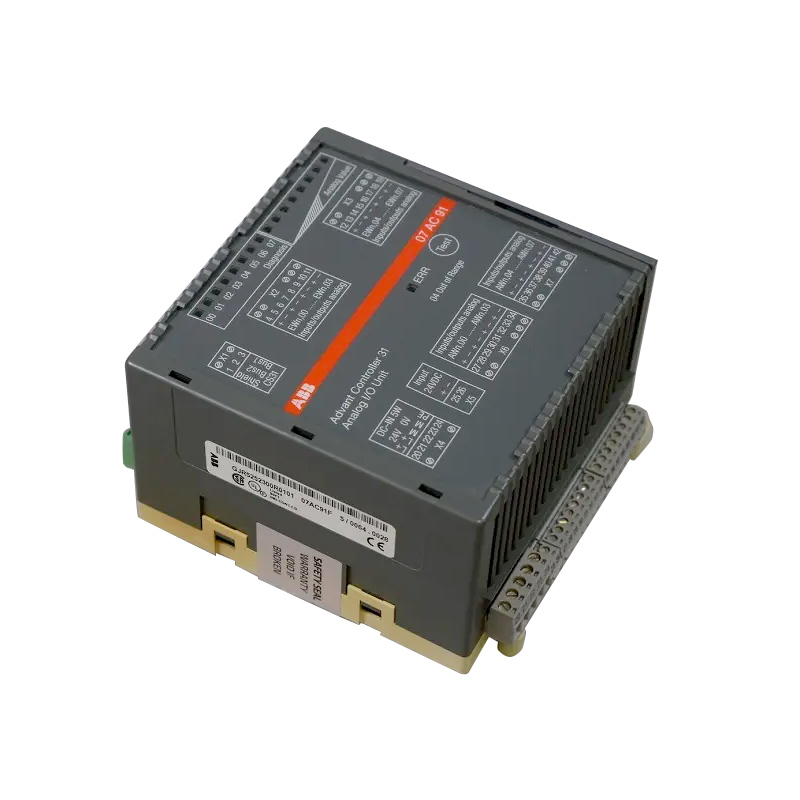

ABB 07AC91:AC31,Analog I/O

　　GJR5252300R3101 ABB ANALOG I/O UNIT

　　The Advant Controller 31 series 40-50 offered small and compact PLCs with central and decentralized extensions. The Advant Controller 31 series 90 offered powerful PLCs for challenging applications with various configuration options and up to five communication interfaces. The PLC provided 60 I/Os internally and could be expanded decentrally. The combination of integrated communication fieldbus allowed to connect the PLC to several protocols like e.g. Ethernet, PROFIBUS DP, ARCNET or CANopen.

　　Both AC31 series 40 and 50 utilized the same AC31GRAF software which conformed to the IEC61131-3 standard. AC31 series 90 utilized the 907 AC 1131 programming software, also developed in accordance with IEC61131-3.

　　The Advant Controller AC31-S was available for safety-related applications. It was based on the time-proven system structure of the AC31 series 90 variant.

　　Intended purpose

　　The analog input/output module 07 AC 91 is used as a remote module on the CS31 system bus. It contains 16 analog input/output channels that can be configured in two operating modes:

　　• Operating mode "12 bits":

　　8 input channels, individually configurable

　　±10 V or 0...20 mA, 12 bit resolution plus

　　8 output channels, individually configurable

　　±10 V or 0...20 mA, 12 bit resolution

　　• Operating mode "8 bits":

　　16 channels, configurable in pairs as inputs or

　　outputs, 0...10 V oder 0...20 mA, 8 bit resolution

　　• The configuration is set with DIL switches.
