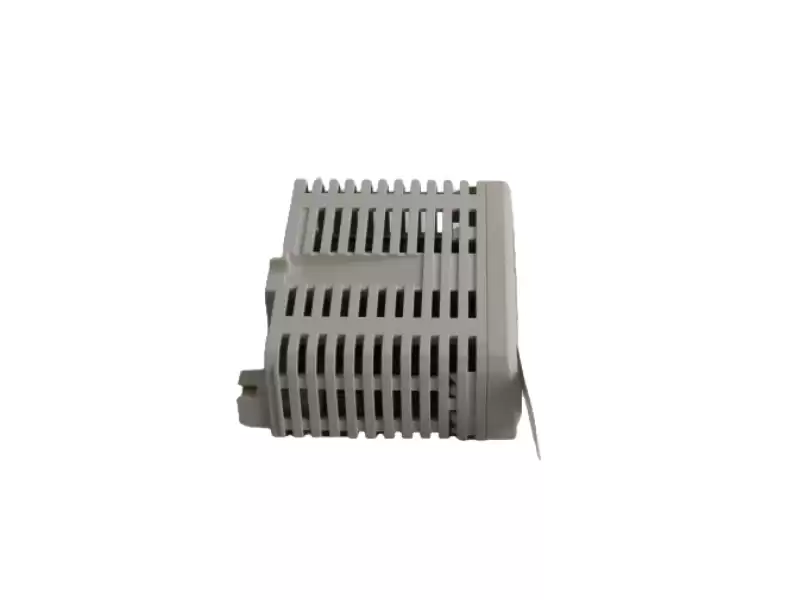

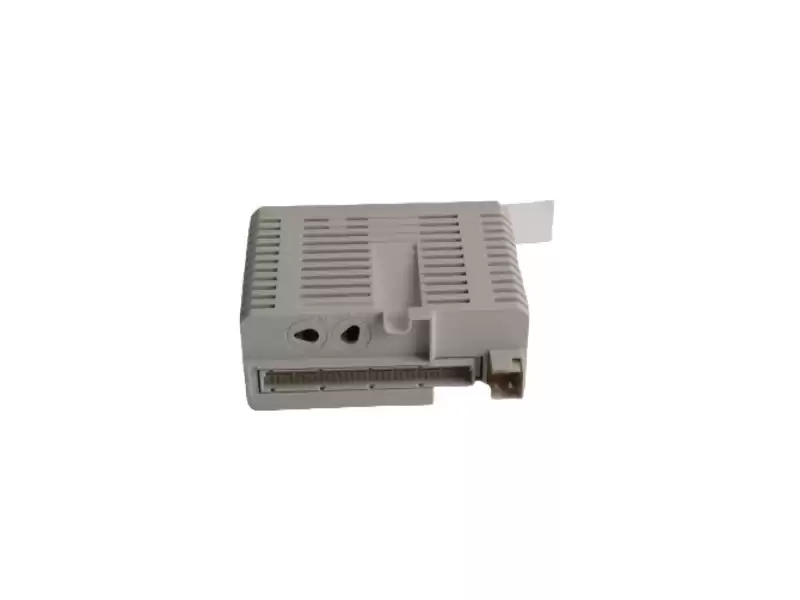

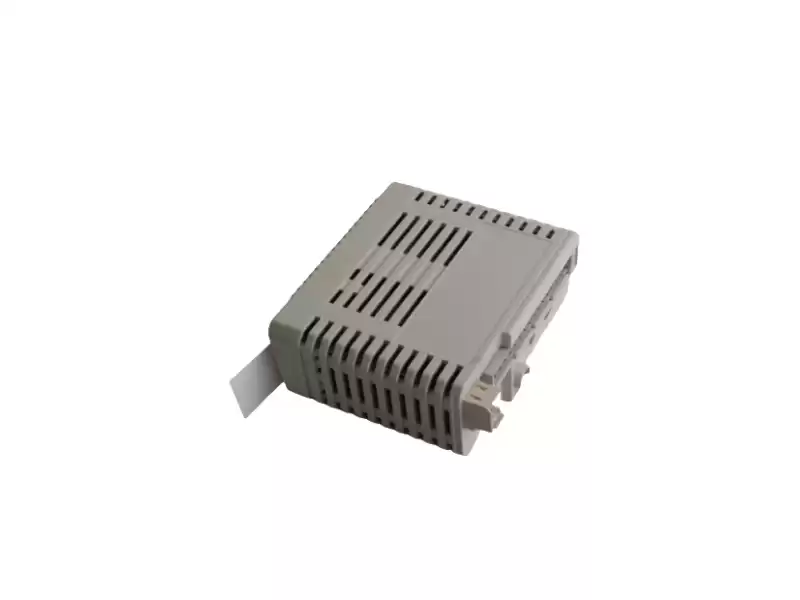

ABB | AI810 3BSE008516R1 | analog input module
l Product Overview
Model: AI810
Order Number: 3BSE008516R1
Series: S800 I/O System
Function: 8-channel analog input module, supports voltage (0–10 V) and current (0/4–20 mA) inputs
Mounting Method: DIN rail
Compatible Terminal Units (MTUs): TU810, TU812, TU814, TU818, TU830, TU833, TU835, TU838, TU850
inverterdrive.com
l Input Channels and Signal Types
Ø Number of Input Channels: 8 single-ended input channels
Ø Supported Signal Types:
Ø Current Input: 0–20 mA or 4–20 mA
Ø Voltage Input: 0–10 V
Ø Input Impedance:
Ø Current Input: Approximately 250 Ω (including PTC current-limiting resistor)
Ø Voltage Input: Approximately 290 kΩ
Ø Input Protection:
Ø Current Input: Withstands short circuits of at least 30 V DC without damage
Ø Voltage Input: Withstands over/undervoltage of at least 30 V DC
|
