AI820 3BSE008544R1Overview

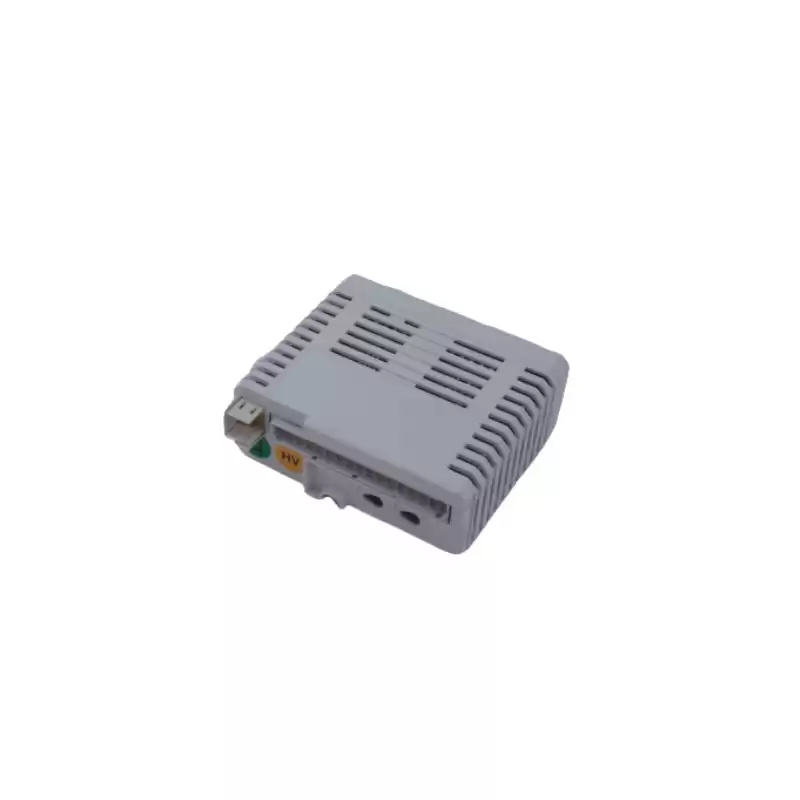

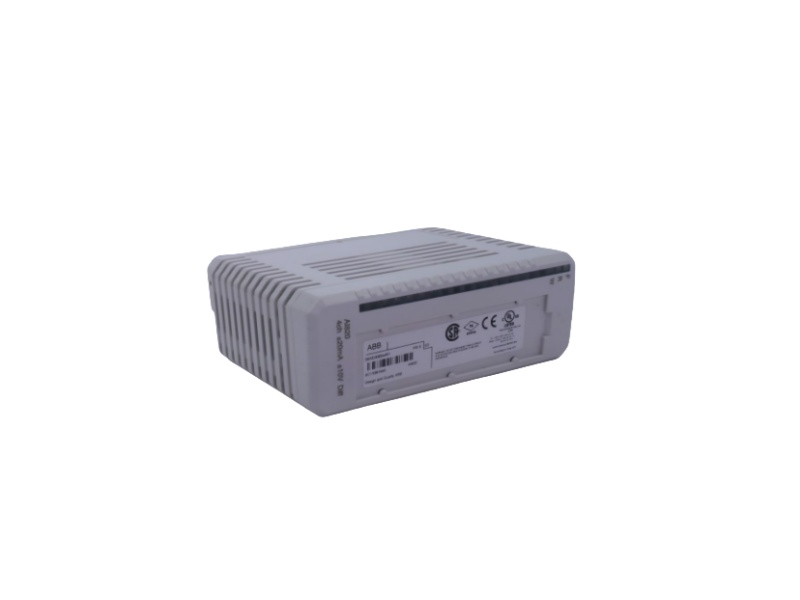

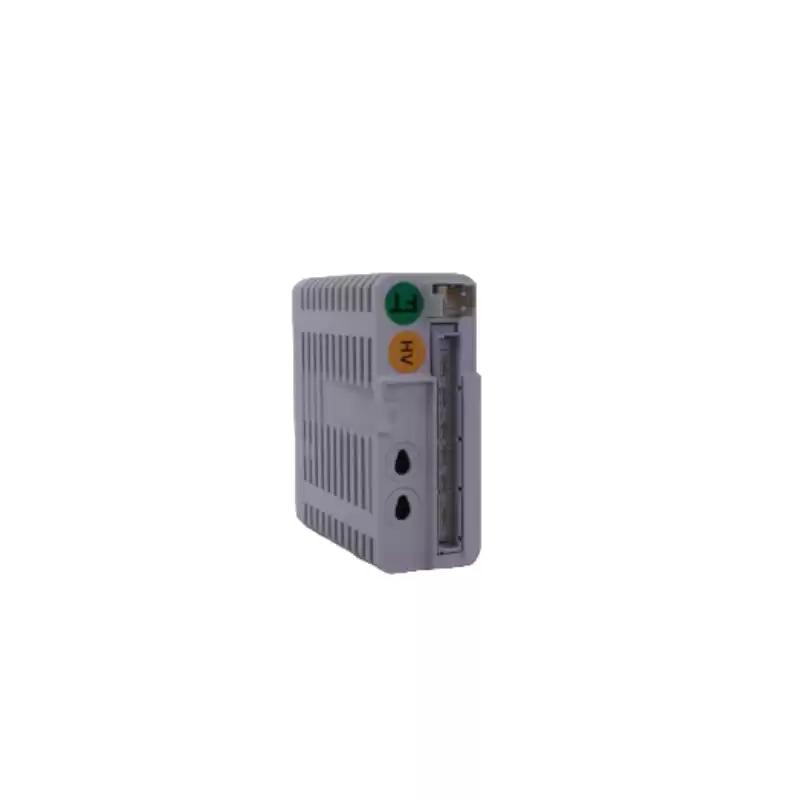

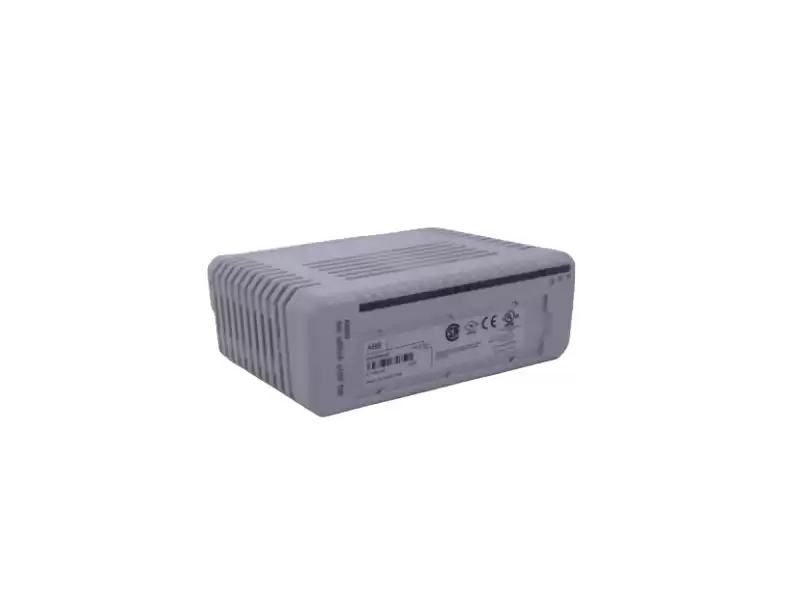

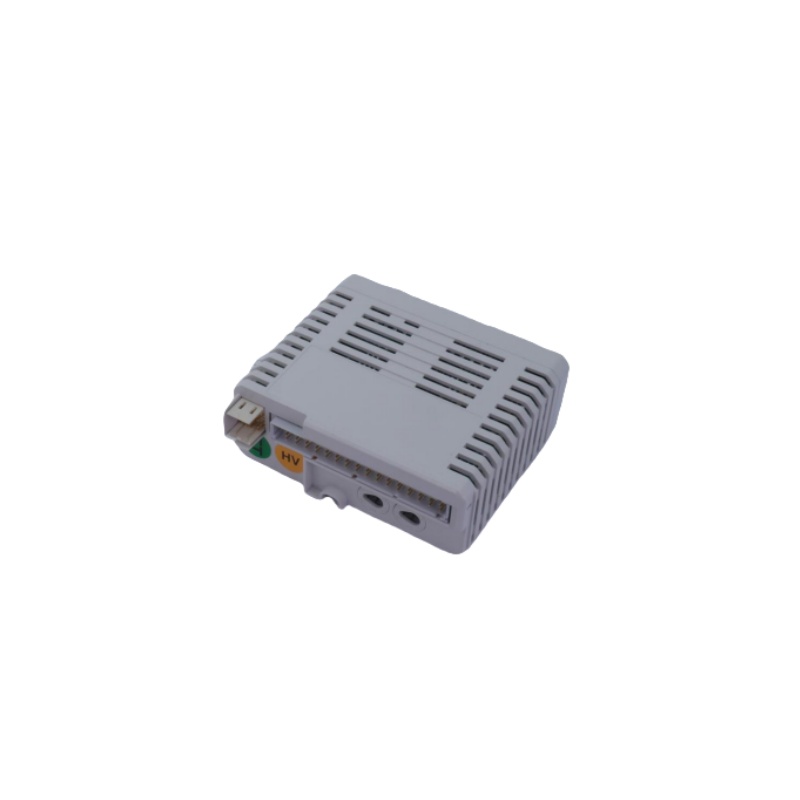

AI820 (3BSE008544R1) is ABB’s 4-channel differential analog input module for the S800 I/O platform
— ±10 V, ±20 mA, 14-bit + sign, 2.5 kV isolation, –25 … +70 °C, IP20, hot-swap — certified for SIL2/SIL3
safety loops and offshore steel-mill environments.
Main core specifications
|
Attribute
|
Value / Options
|
Notes
|
|
Part Number
|
3BSE008544R1
|
ABB S800 I/O family
|
|
Channels
|
4 × differential
|
±10 V, ±20 mA, 0(4)-20 mA (jumper-select)
|
|
Resolution
|
14 bit + sign
|
0.015 % F.S., 1 ms scan
|
|
Input impedance
|
250 Ω (current) / 10 MΩ (voltage)
|
Direct 4-20 mA loop, no external resistor
|
|
Isolation
|
2.5 kV RMS (channel↔channel & channel↔bus)
|
Reinforced, IEC 61131-2
|
|
Common-mode range
|
±50 V
|
Differential input, steel-mill proven
|
|
Temperature range
|
–25 … +70 °C
|
IP20, conformal coat, offshore verified
|
|
Dimensions / weight
|
45 × 119 × 102 mm / 0.3 kg
|
Book-size, 35 mm DIN rail, front access
|
|
Power draw
|
5 V back-plane, 30 mA typical
|
24 V supplied via TU8xx base
|
|
Certifications
|
CE, UL, cULus, RoHS, SCIP
|
SIL2/SIL3 loop compatible
|
Application Scenarios
l Differential input: ±50 V common-mode rejection — steel-mill VFD noise immunity
l 14-bit + sign: 0.015 % F.S. — custody-transfer class accuracy
l 2.5 kV isolation: channel-to-channel & channel-to-bus — SIL2/SIL3 safety loops
l Hot-swap: key-switch confirm, <200 ms break — zero downtime maintenance
l One module, multiple ranges: voltage & current jumper-select — no external resistor bank
|
