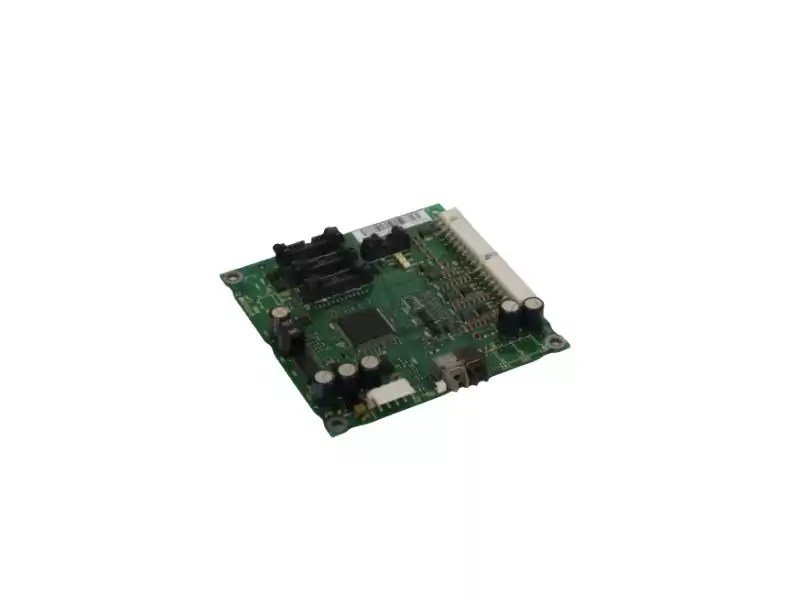

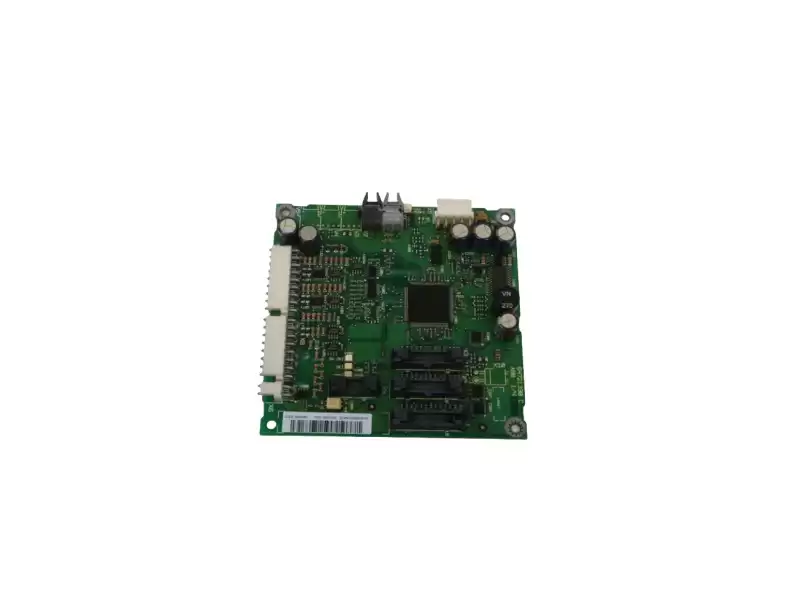

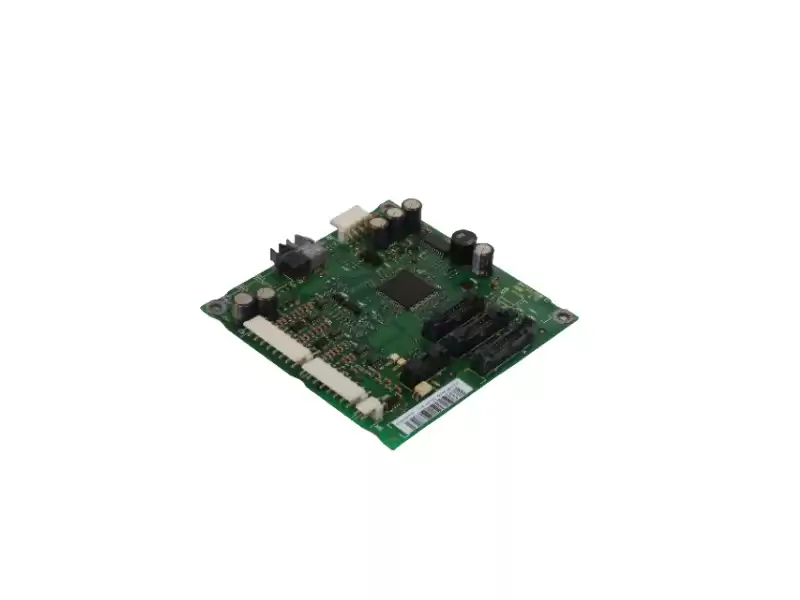

AINT-02C Main Circuit Interface Board
Sales Manager: May | ab@mooreplc.com | +86-18106909650 (WhatsApp) | WeChat ID: dcsfcs
1. Function-AINT-02C
The AINT-02C is located between the RMIO control board and the power stack of the ACS800/880 drive.
It measures DC voltage, output current, and heatsink temperature, then transmits the data to the control unit via two fiber optic links.
If any condition is out of range (overcurrent, overvoltage, overtemperature, or ground fault), the interface board latches the fault and shuts down the IGBT.
2.Key data- Electrical & mechanical
|
Item
|
Value
|
Note
|
|
Supply
|
24 V DC, 120 mA
|
from APOW-01C
|
|
Fibre
|
2 × HFBR-1528/2528
|
5 MBd, 650 nm
|
|
Analog inputs
|
3 × ±10 V diff.
|
12-bit, 1 ms scan
|
|
Digital I/O
|
6 × 24 V
|
4 in / 2 out
|
|
Isolation
|
2 kV RMS
|
IEC 61800-5-1
|
|
Temp. range
|
–20 … +70 °C
|
conformal coated
|
|
Size / weight
|
120 × 80 × 30 mm / 0.3 kg
|
same as AINT-12C
|
|
MTBF
|
280 kh @ 40 °C
|
SN 29500
|
Which board fits without re-wiring?
|
Old part
|
Fits?
|
Action
|
|
AINT-02C (any suffix)
|
yes
|
none
|
|
AINT-12C
|
yes
|
reload node address
|
|
AINT-14C
|
no
|
4-fibre, different FPGA
|
|
AINT-24C
|
no
|
dual-redundant optic
|
|
AINT-02C (any suffix)
|
yes
|
none
|
Order & ship
u Xiamen stock, 1 Year Warranty
u 100% Original Package
u UPS/ DHL/ FEDEX / TNT
