ABB BAILEY IMDSM04 PULSE INPUT MODULE

Manufacturer/Brand：ABB	Shipping Term：TNT DHL FEDEX EMS UPS
voltage: +5 Vdc, 1.5A, +24Vdc, 80mA	Alternate Part Numbers: YIMDSM04, IMDSM04R, PIMDSM04
Dimensions ：3.6x31.5x17.7cm	Weight:0.2kg

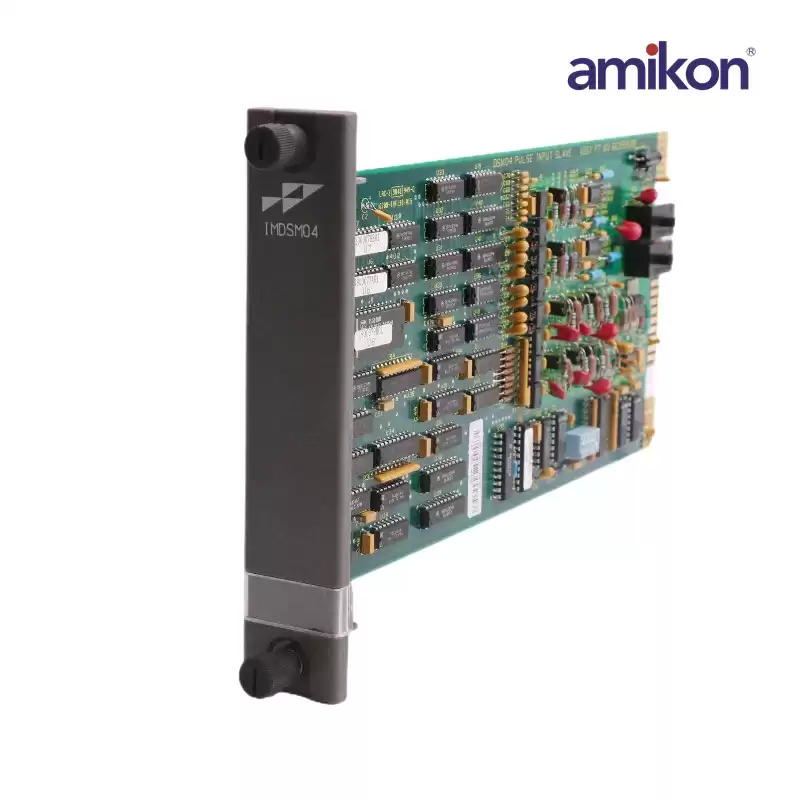

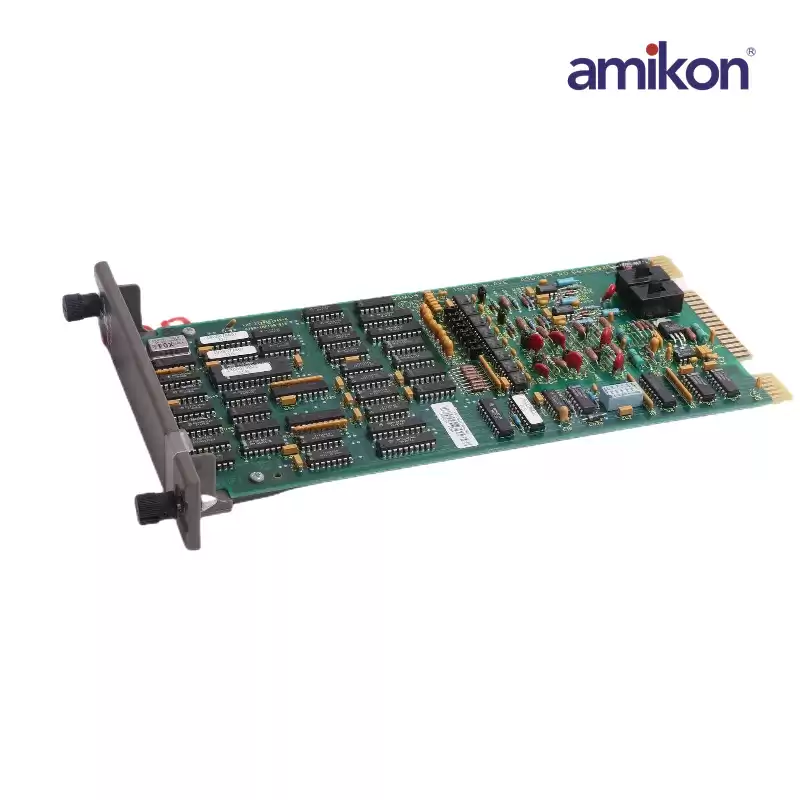

The Pulse Input Slave Module (IMDSM04) brings eight separate pulse signals into the Infi 90 system for processing and monitoring. It interfaces process field inputs with the Infi 90 Process Management System. Master modules provide the control functions; slave modules provide I/O to the master modules.The DSM has a single printed circuit board that occupies one slot in a Module Mounting Unit (MMU). Two captive screws on the module faceplate secure the DSM to the MMU. The slave module has three card edge connectors for external signals and power.
