BGAD-12C Overview

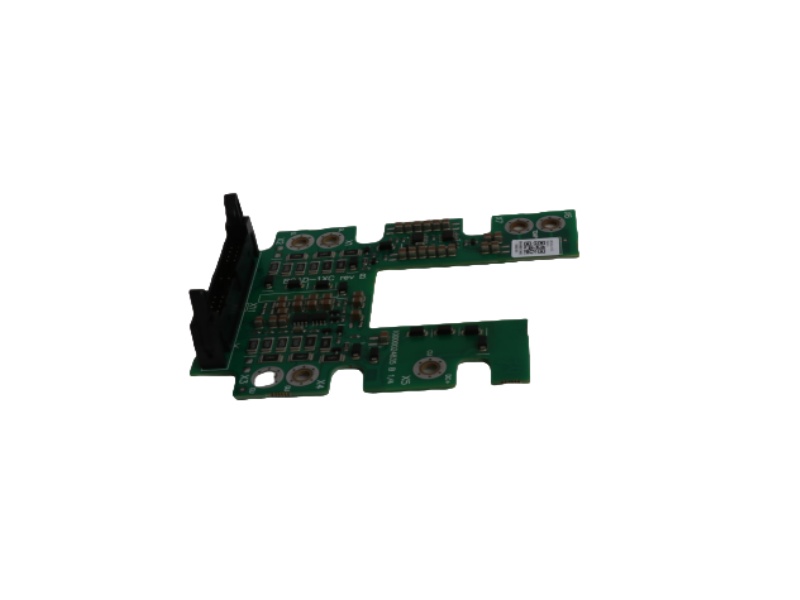

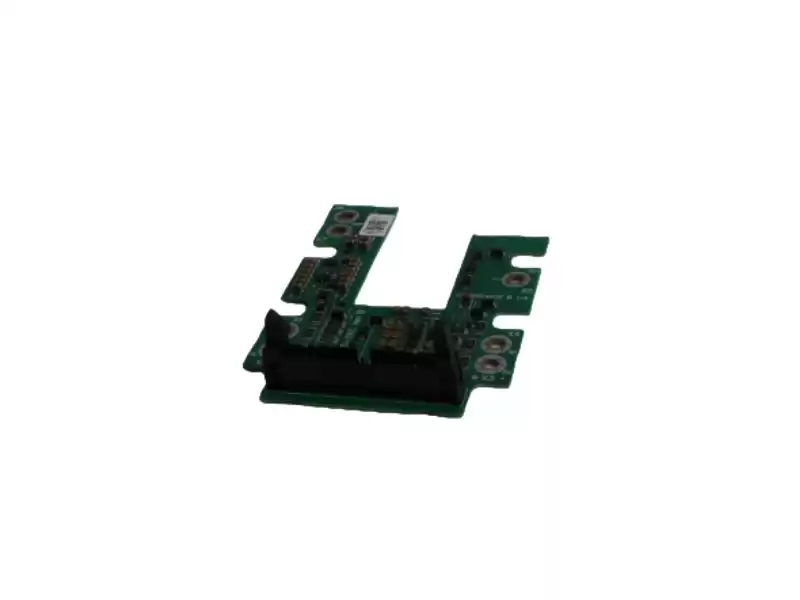

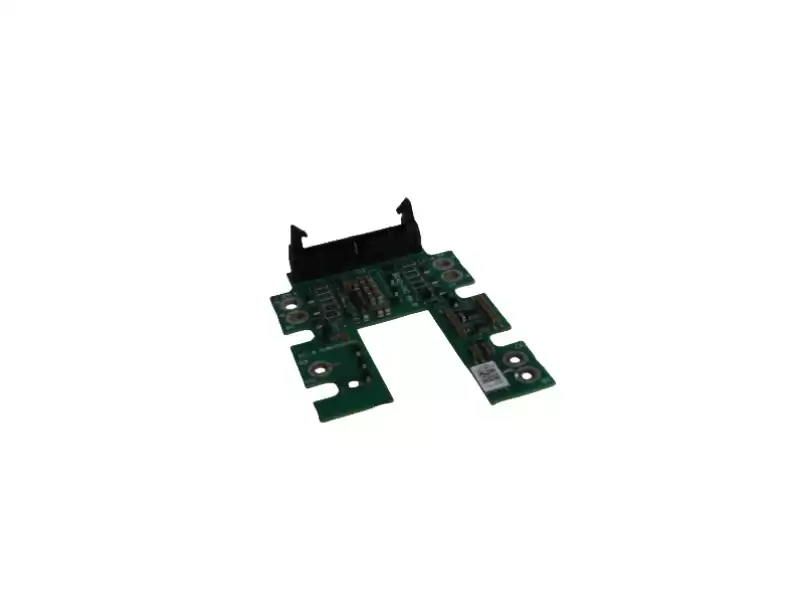

The ABB BGAD-12C is an IGBT module protection board for ACS800 series inverters. It is primarily used to
drive and protect IGBT modules, ensuring stable operation of the inverter system.
Key Specifications
l Product Number:BGAD-12C
l Type: IGBT Module Protection Board (Trigger/Drive Board)
l Applicable Models: ACS800 Series Inverter
l Dimensions: 124 mm (L) × 89 mm (W) × 30 mm (H)
l Weight: 0.052 kg
l Operating Temperature: 0°C to 50°C
l Protection Rating: IP20
l Certifications: CE, RoHS
l Origin: Switzerland
Function and Application:
IGBT Module Protection: Provides protection for the IGBT modules in the ACS800 series inverter against abnormal conditions such as overcurrent and overvoltage.
Drive Function: Provides the trigger signals required by the IGBT modules to ensure normal operation.
Thermal Management: Maintains the modules within a safe operating temperature range through effective heat dissipation design.
