Field Note: ABB DSQC239 YB560103-CH Remote I/O Module
Purpose

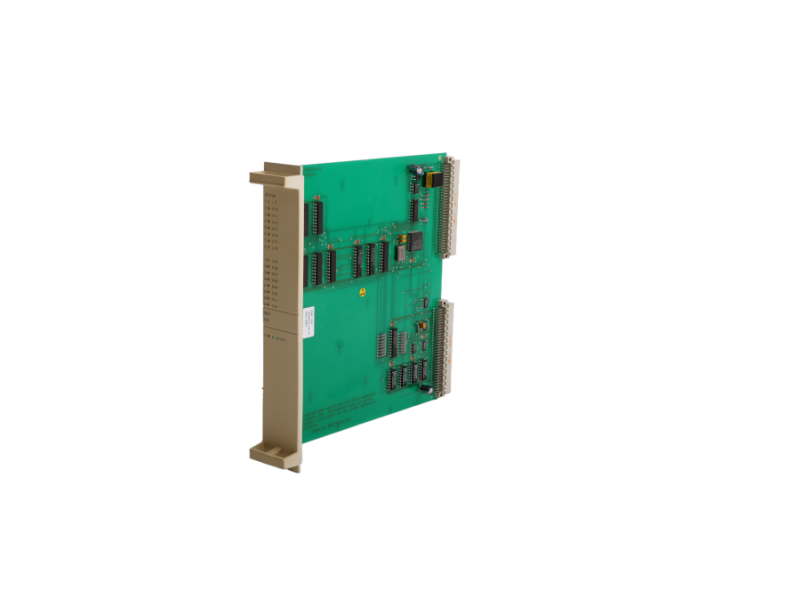

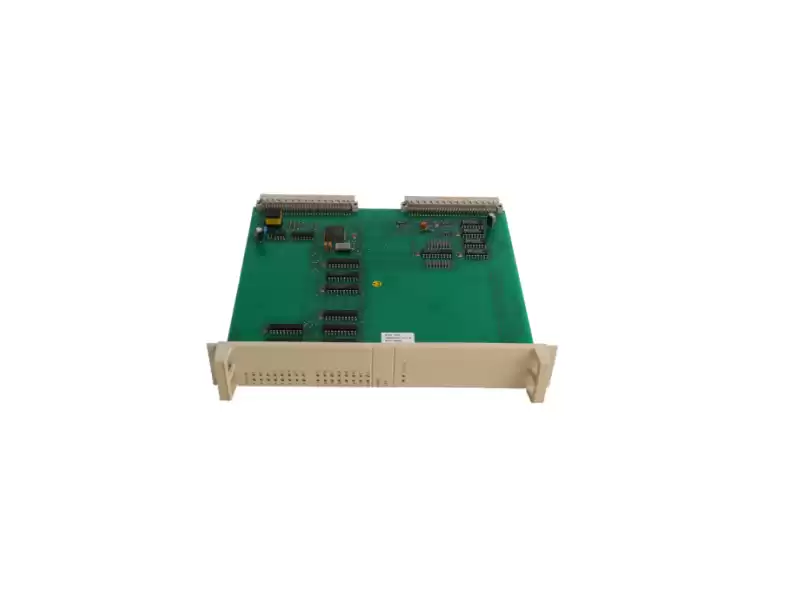

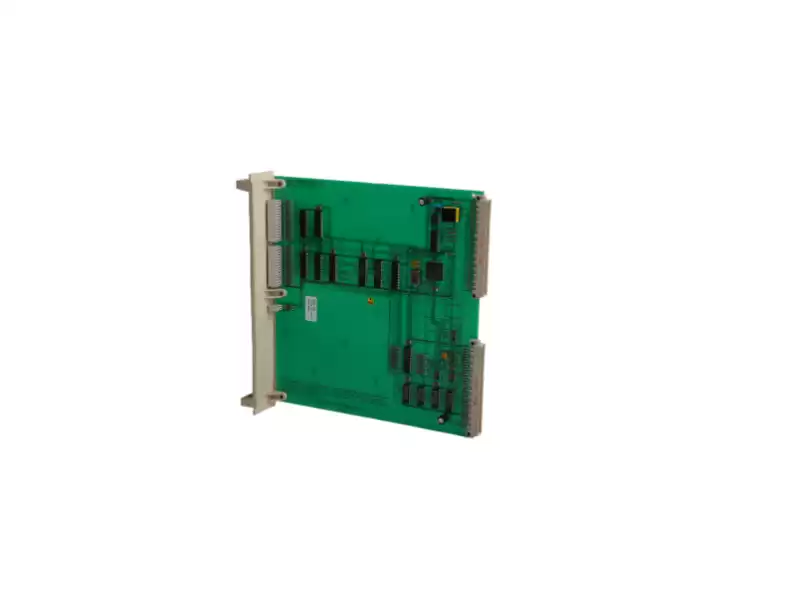

DSQC239 (YB560103-CH) is a plug-and-play remote I/O board for ABB S3/S4 robot controllers. It off-loads 16 digital I/O points (8 DI / 8 DO) from the main CPU, freeing up backplane slots and giving you sub-millisecond response in welding, pick-and-place, or palletizing cells.
Performance Highlights
|
Parameter
|
Value
|
|
I/O Channels
|
8 × 24 V DC DI, 8 × 24 V DC DO (0.5 A)
|
|
Bus Protocol
|
DeviceNet, auto-baud 125 kbps – 1 Mbps
|
|
Supply
|
24 V DC (20.4 – 28.8 V), 150 mA max
|
|
Isolation
|
500 V channel-to-bus
|
|
Response Time
|
< 0.5 ms scan cycle
|
|
Diagnostics
|
LED per channel + fault log
|
|
Size
|
120 × 50 × 30 mm, 0.2 kg
|
|
Temperature
|
–20 °C … +60 °C
|
|
Certifications
|
CE, UL, ATEX Zone 2
|
Installation Advantages
• Spring-cage terminals – accept 0.2–2.5 mm² wire without ferrules.
• Hot-swap design – swap the card online, no robot restart.
• DIN-rail snap – installs in < 30 s.
Ready-to-Ship Package
|
Function
|
Part Number
|
Note
|
|
I/O Module
|
DSQC239 YB560103-CH
|
This unit
|
|
DeviceNet Drop Cable
|
3HAC022643-001
|
2 m, pre-terminated
|
|
T-Connector
|
3HAC022646-001
|
Adds bus drop without cutting trunk
|
|
Bus Terminator
|
3HAC022647-001
|
120 Ω, ends DeviceNet segment
|
|
24 V DC Supply
|
3HAC029157-002
|
5 A DIN-rail, redundant inputs
|
|
Hand-Held Tester
|
3HAC029157-003
|
Portable I/O simulator for commissioning
|
All items factory-sealed and available for same-day dispatch from PLC Autocontroller.
