Data Sheet: ABB DSQC697 3HAC037084-001 DeviceNet Board
Purpose

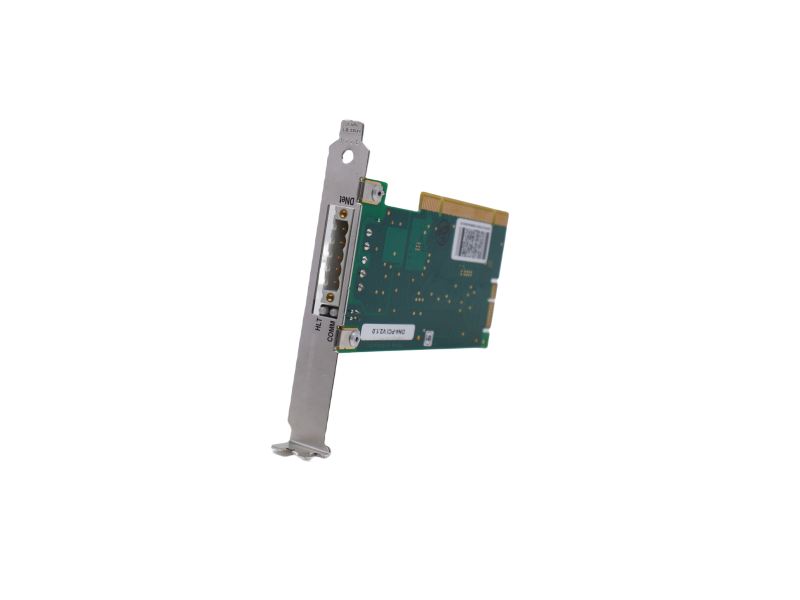

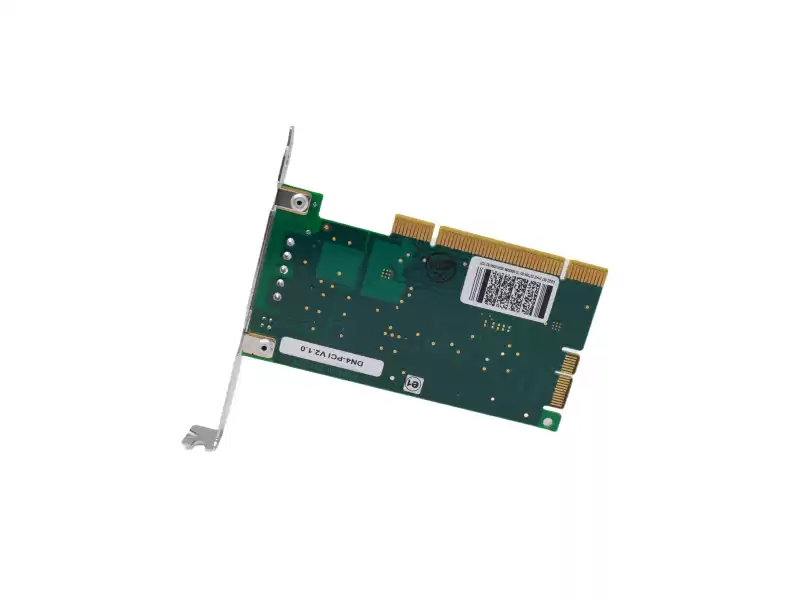

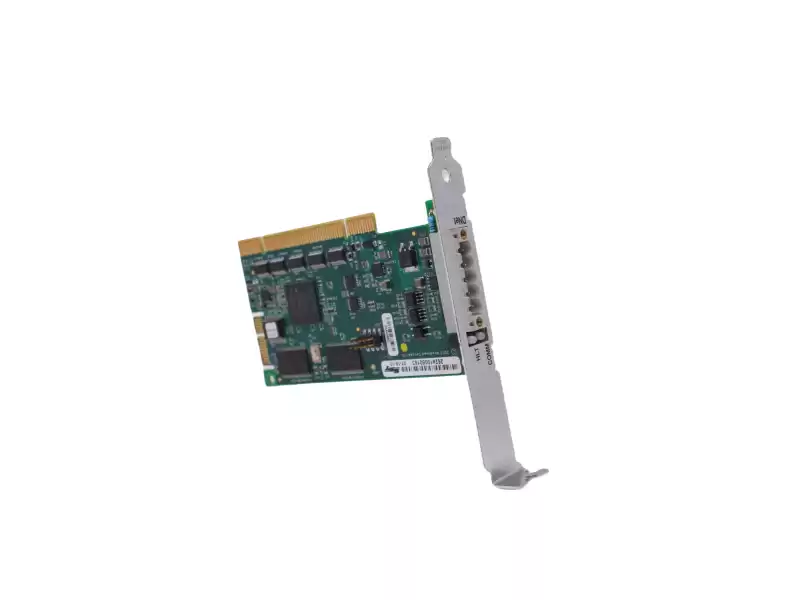

DSQC697 (3HAC037084-001) is the single-width DeviceNet communication board for ABB IRC5 robot controllers.
It links the robot controller to DeviceNet networks, enabling fast I/O exchange with sensors, actuators, and safety devices.
Key Specifications
• Part Number: 3HAC037084-001 (also marked DSQC697)
• Protocol: DeviceNet (master or slave)
• Channels: 2 × DeviceNet ports + 1 diagnostic port
• Power: 24 V dc nominal, 0.2 A max
• Isolation: 500 Vdc port-to-logic
• Dimensions: 100 × 70 × 30 mm, 0.12 kg
• Operating Temp: –20 °C … +70 °C
• Compliance: CE, UL, RoHS
Mounting & Compatibility
• Plugs directly into the IRC5 Main Computer board slot
• Firmware: V2.1.0 (supports both standard and ABB-specific DeviceNet objects)
• Backward compatible with older part numbers 3HAC025779-001, 3HAC12817-1
Typical Applications
• Robot-to-safety-gate communication
• Integrating third-party grippers or vision systems on DeviceNet
• Remote I/O racks in automotive body shops
Ordering & Related Items
|
Part Number
|
Description
|
|
3HAC037084-001
|
DSQC697 DeviceNet board (new)
|
|
3HAC025779-001
|
Legacy DeviceNet board (while stocks last)
|
|
3HAC12817-1
|
Legacy DeviceNet board (while stocks last)
|
|
3HAC022643-001
|
DeviceNet cable set, 2 m
|
|
3HAC022644-001
|
DeviceNet cable set, 5 m
|
|
3HAC022645-001
|
DeviceNet cable set, 10 m
|
|
3HAC022646-001
|
DeviceNet T-connector (bus drop)
|
All parts are factory-sealed and ready for same-day dispatch.
