FS300R17KE3 AGDR 76C S Overview

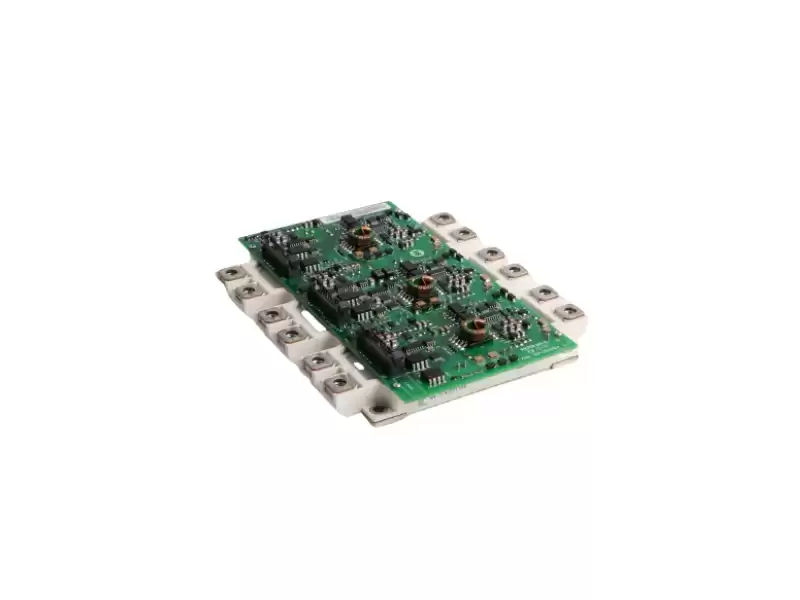

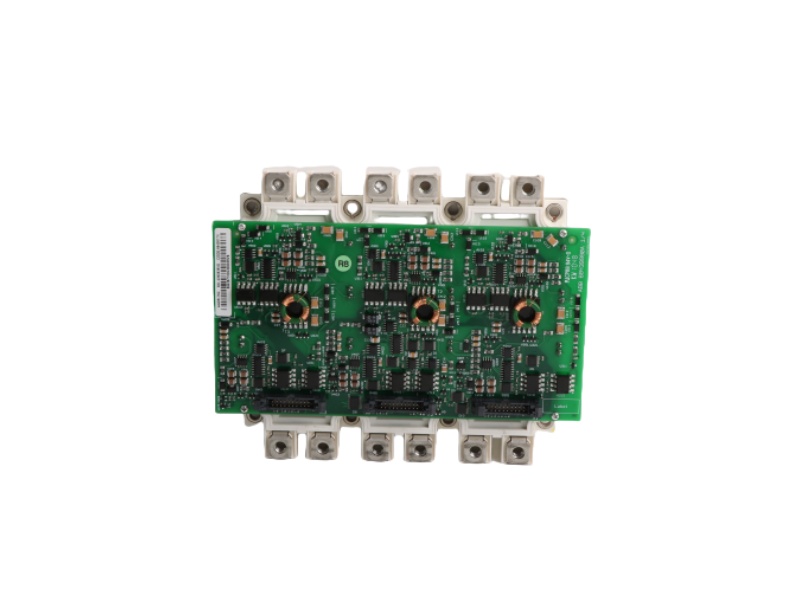

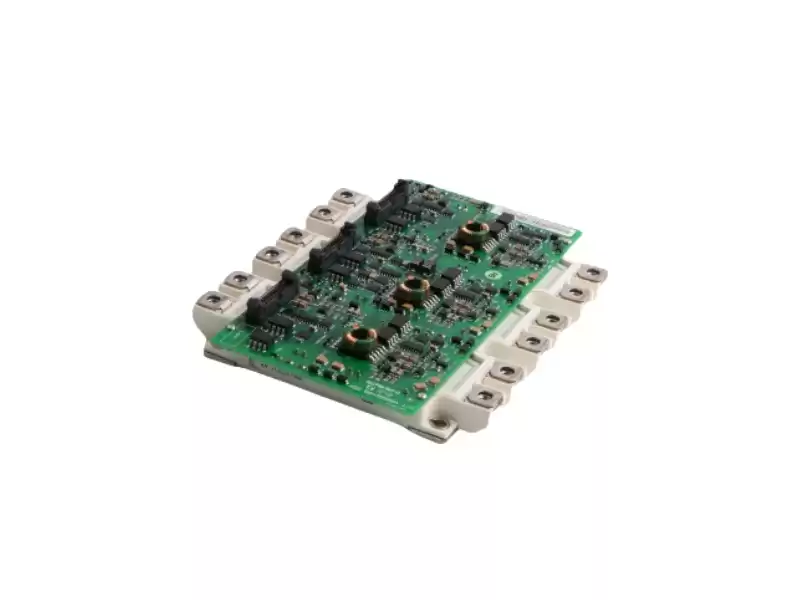

The FS300R17KE3/AGDR-76C S is a high-performance IGBT module kit provided
by ABB. It is designed for its ACS800-02, ACS800-04 and ACS/ACH550-02 series inverters
and is widely used in industrial drives, wind power generation and other high-power inverter systems.
FS300R17KE3 AGDR 76C S Core Parameters
n IGBT module model: FS300R17KE3
n Gate driver board model: AGDR-76C
n Rated voltage: 1700 V
n Rated current: 300 A (continuous), 600 A (peak)
n Repetitive peak collector current: 600 A (1 ms pulse)
n Total power loss: 1450 W (at cooler temperature T<sub>C</sub> = 25°C)
n Gate-emitter voltage: ±20 V
n Gate threshold voltage: 5.0 V to 6.5 V
n Gate charge: Approximately 2.70 µC
n Internal gate resistance: Approximately 2.5 Ω
Typical applications for the FS300R17KE3 AGDR-76C S include:
Medium-voltage AC drive systems
Industrial inverters
Power converters and inverters
Uninterruptible power supply (UPS) systems
Solar inverters
Welding equipment
Induction heating equipment
