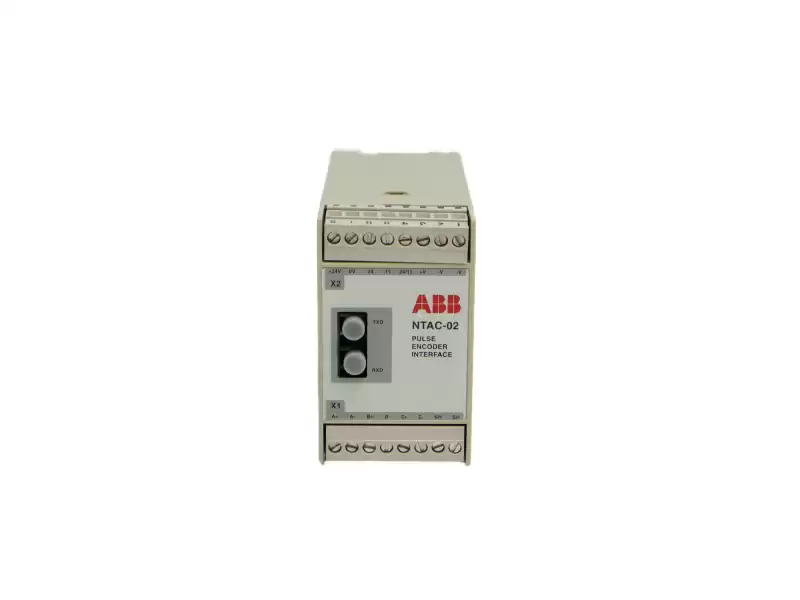

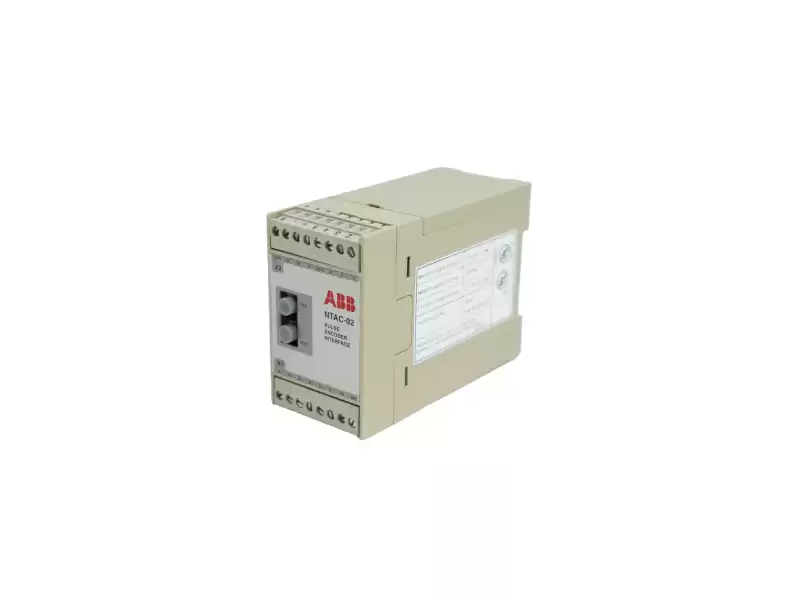

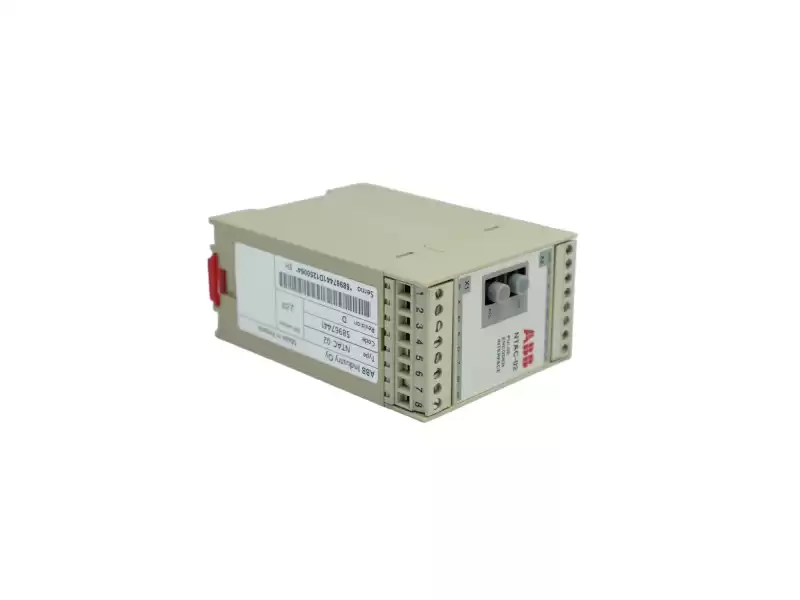

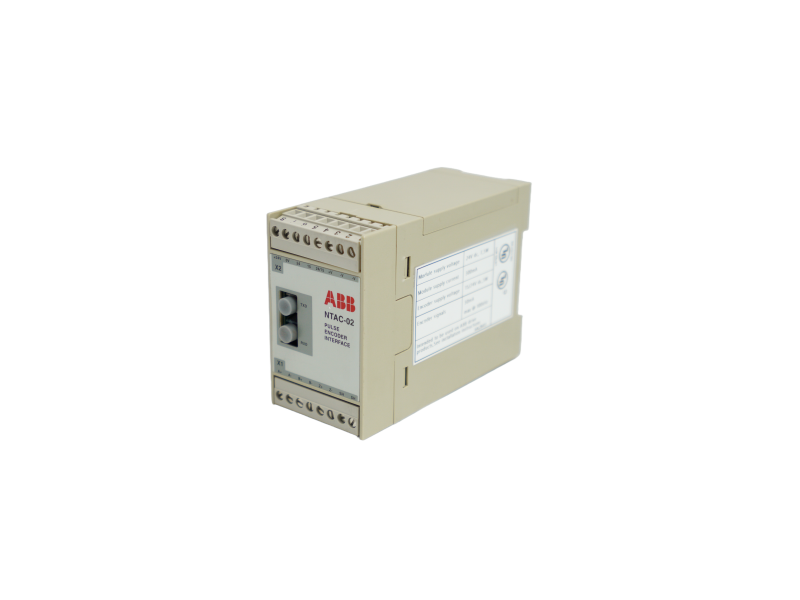

1.Key specifications
Input frequency: 0 … 2 MHz
Resolution: 20 bit (1,048,576 cpr)
Power supply: 18 … 30 VDC, 5 W
Isolation: 500 VAC
Temperature: –25 … +70 °C
Dimensions: 100 × 50 × 30 mm, IP20
Certifications: CE, UL, cUL
2.Comparison with legacy 150 kHz card
|
Parameter
|
NTAC-02
|
150 kHz card
|
Advantage
|
|
Max. frequency
|
2 MHz
|
0.15 MHz
|
13× faster
|
|
Counts per rev.
|
1,048,576
|
4,096
|
256× finer
|
|
Hot-swap
|
Yes
|
No
|
Zero downtime
|
|
Operating temp.
|
–25 … +70 °C
|
0 … +55 °C
|
Wider range
|
3.Typical applications
Corrugator cross-cutter: 10,000-line encoder stable at 12,000 rpm
Stacker crane: SSI absolute, position retained after power-loss, no homing on restart
Robot joints: 20-bit feedback, arc-interpolation error ≤ 0.01°
4.Installation notes
35 mm DIN-rail or M4 panel mount; terminal torque 0.2 N·m; green LED steady = OK
5.Xiamen stock – one-stop terms
· Products: brand-new, 12-month warranty
· MOQ: 1 pc; volume discount available
· Payment: T/T;
· Shipping: DHL/UPS/FedEx at choice, charged by actual weight; orders before 16:00 shipped same working day
· QC: double-checked at factory and warehouse; intact packaging guaranteed
6.Quick-selection hint
For cable >10 m use 0.34 mm² shielded twisted pair, shield earthed at NTAC-02 end only.
If encoder current >200 mA add a separate 24 VDC supply to avoid voltage drop and count jumps.
7.FAQ
Q: Can A/B/Z all run at 1 MHz simultaneously?
A: Yes—A, B, Z opto-isolated; total ≤ 2 MHz.
Q: Compatible with ACS580?
A: Requires firmware v2.7 or later; enable “NTAC-02” hardware ID in DriveStudio.
