Product model
|
|
S200
|
|
Basic parameters
|
Product name
|
S200-TB3S S200TB3S
|
|
Weight
|
0.16 kg
|
|
L x W x H
|
9.3x9.5x6cm
|
|
Digital input & output
|
Power DO
|
4-Way (single-loaded 24 V / 1 A; 4-Way total load capacity ≤4 A)
|
|
DO
|
12-Way (400 mA)
|
|
DI
|
24-Way (16-Way PNP+8-Way NPN / PNP optional, 7 available for detecting ossd)
|
|
Product Type
|
Type
|
Terminal Block
|
|
Technical Data
|
Current capacity 10 A max.
Voltage rating 132 V AC max (rms).
Isolation voltage Channel-to-channel isolation determined by inserted unit
Temperature Operating 0 °C to + 55 °C
Non-operating: -40 °C to + 85°C
Humidity 5–95%, non-condensing
Approvals CSA certified
Backplane key Determined by inserted unit
Wire size Solid or stranded copper wire 0.5–2.5 mm2 or AWG 20–AWG 12
|

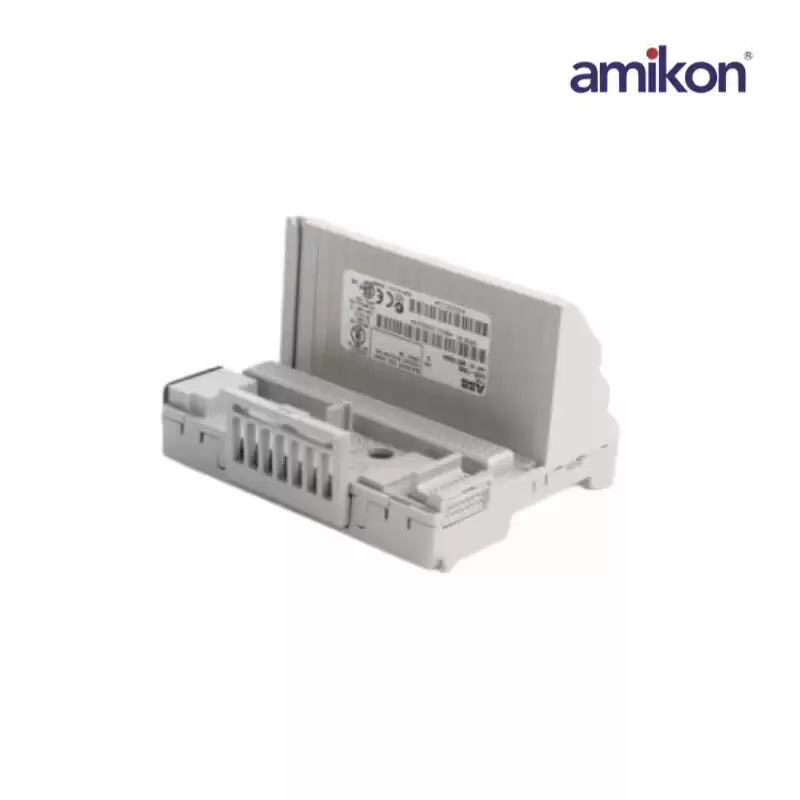

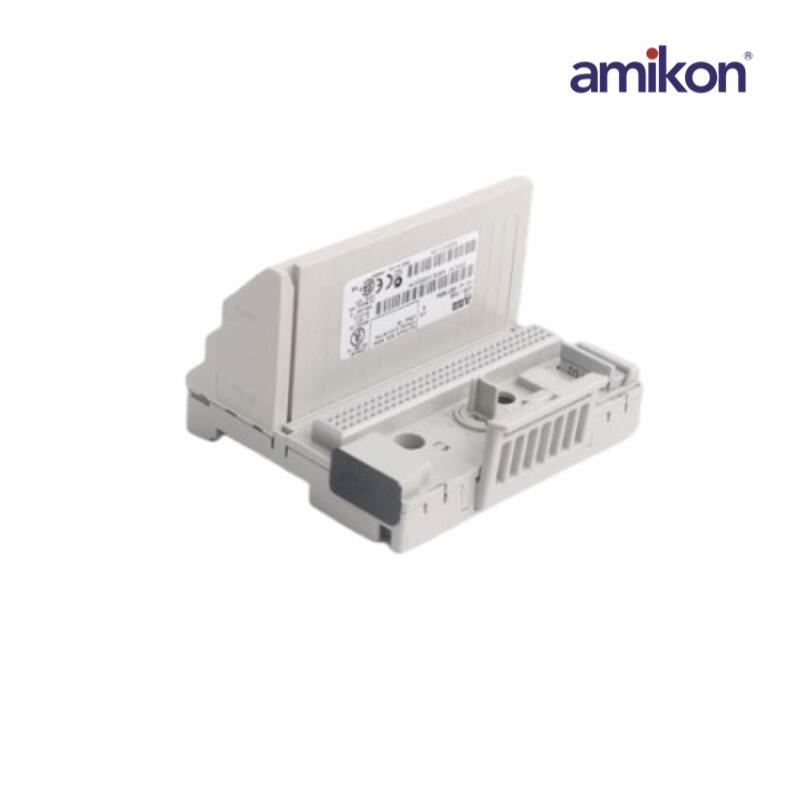

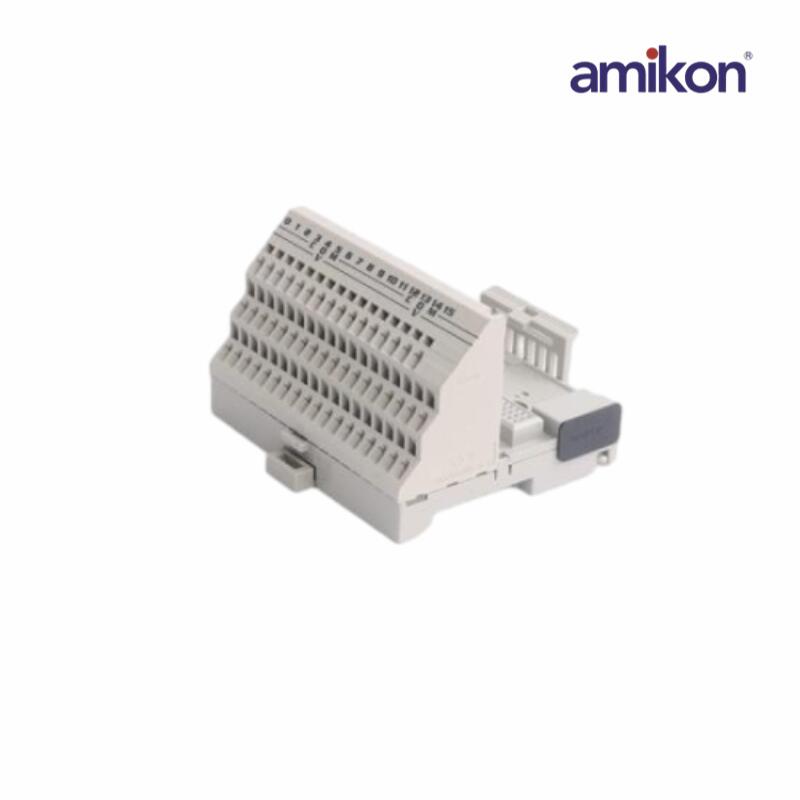

ABB S200-TB3S S200TB3S Terminal Block
Functional Safety
Asea Brown Boveri Automation DCS Module
Rich Interfaces
S200-TB3S S200TB3S Terminal Block
Superb Configuration
SW Version as from 1.31 16 Outputs 0/4...20 mA
Stable Performance
Channel |- Necessary Accessories: 4 pcs
High Integration Degree
CI 100/101, Cable Clamp
