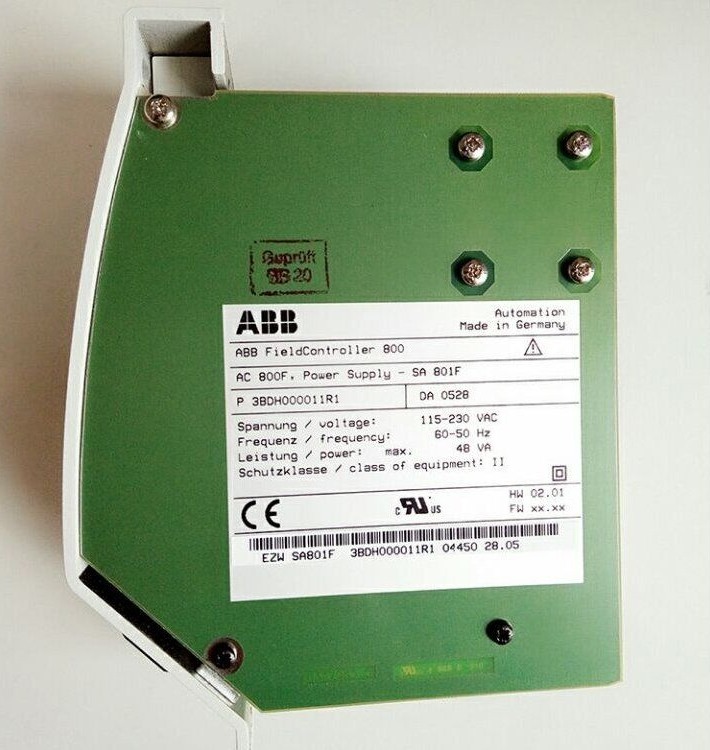

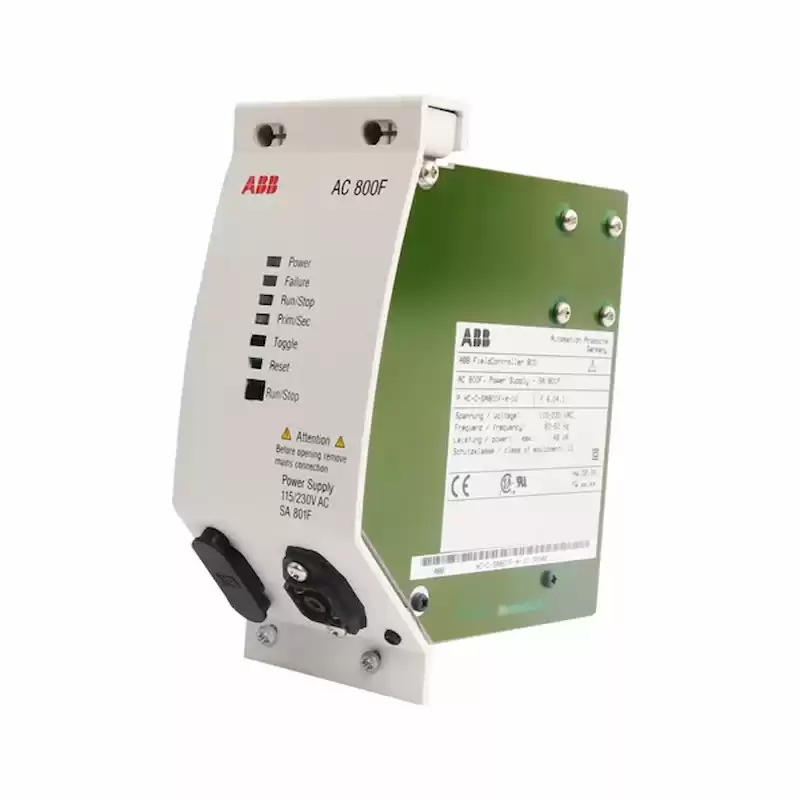

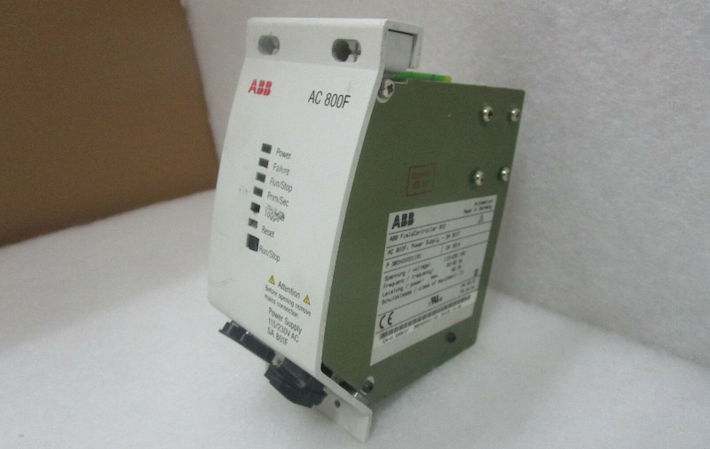

ABB SA801F 3BDH000011R1 Power Supply
The AC 800F modules are supplied with 5 V DC / 5 A and 3.3 V DC / 5 A auxiliary power by the SA 801F or 5 V DC / 5.5 A and 3.3 V DC / 6.5 A by the SA 811F power supply. The power supply has open-circuit, overload and sustained short-circuit protection. The electronically controlled output voltage provides high stability and low residual ripple.
In case of power loss ≥5 ms, the power supply module generates a power-fail signal. This signal is used by the CPU module to shut down operations and enter to a safe state. This is required for a controlled restart of the system and the user application when power is restored. The output voltage remains within its tolerance limits for at least another 15 ms. Altogether a mains voltage drop of 20 ms will be managed.
Features
· Input voltage 115 - 230 VAC (self adjusting), output is electrically isolated
· Power supply outputs provide:
SA 801 F: 5 V DC / 5 A and 3.3 V DC / 5 A
SA 811 F: 5 V DC / 5.5 A and 3.3 V DC / 6.5 A
· Enhanced power-fail prediction and shutdown procedures
· LED indication for power supply status and operating status of the AC 800F
· Short circuit proof, current limited
· 20 ms backup energy for use in the event of primary power failure, according to NAMUR
Technical Specifications
| Manufacturer |
ABB |
| Part Number |
SA 801F |
| Ordering Information |
3BDH000011R1 |
| Product Catalog |
Freelance 800F AC 800F |
| Description |
Power Supply |
| Voltage |
0.5 - 5 A to 3.3V and 5.0 V |
| Current |
6A |
| Dimensions |
15.2 cm x 7.6 cm x 17.8 cm |
| Weight |
0.46 kg |
