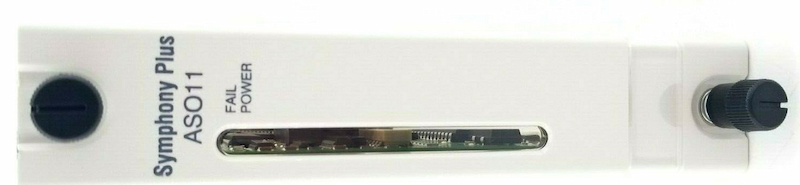

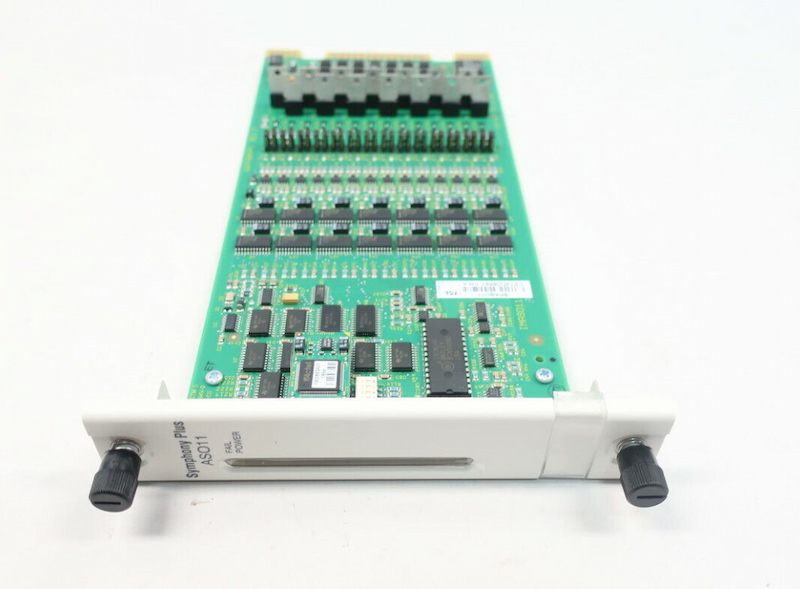

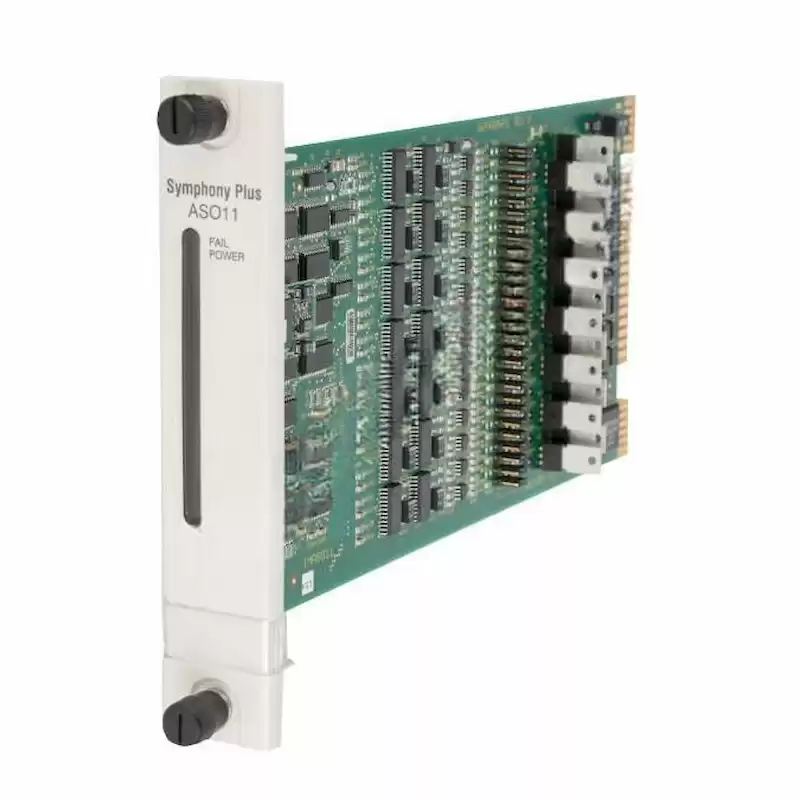

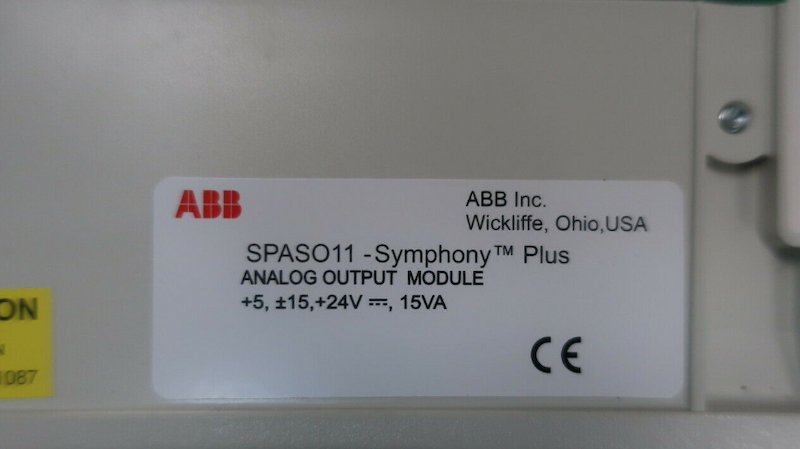

ABB SPASO11 Analog Output Module
The SPASO11 provides 14 separate analog output signals that can be used to control a process. Each channel has a 10-bit resolution and can be individually programmed. Each output reads back the signal to the field to ensure accurate operation and eliminate the need to calibrate outputs.
Technical Data
|
Power requirements
|
+ 5 VDC, ±5% at 250 mA typical
+15 VDC, ±5% at 100 mA typical
- 15 VDC, ±5% at 90 mA typical
+ 24 VDC, ±10% at 310 mA typical
|
|
Analog input channels
|
14 independently configured channels
|
|
Current
|
4 to 20 mA
|
|
Voltage
|
1 to 5 VDC
|
|
Output load (current)
|
750 Ω maximum
|
|
Output load (voltage)
|
22 kΩ minimum
|
|
Ambient temperature
|
0 °C to 70 °C (32 °F to 158 °F)
|
|
Dimensions
|
35.56 mm width, 177.80 mm height, 298.45 mm depth
(1.40 in. width, 7.00 in. height, 11.75 in. depth)
|
| Weight |
0.7 kg |
