The “Invisible Brain” Inside Motion Controllers – Let Servo Axes Manage Themselves
It is neither a drive nor a PLC. Multi-axis synchronization, high-speed event response and machine safety are squeezed onto a business-card-sized board; plug it into a frequency converter and 16 axes will dance to the same beat.
1. One-glance Data Sheet

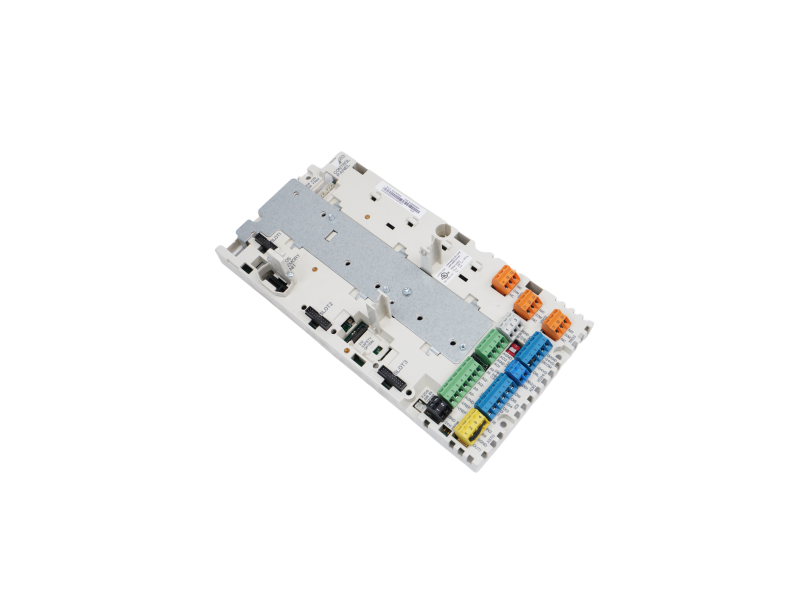

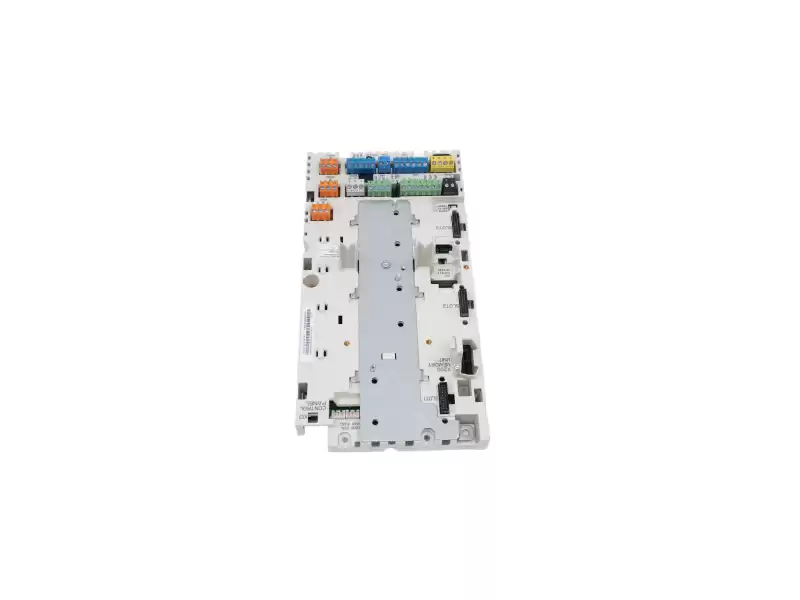

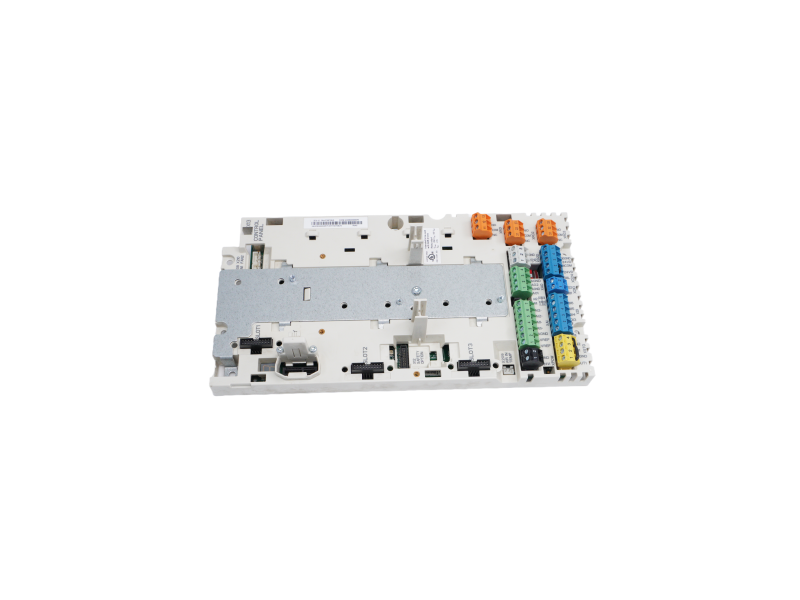

Type: ZCU-12 (Order code 3AXD50000005751)
Family: ABB Ability™ Machinery Controller
Form-factor: PCIe/104 mezzanine; snaps directly onto the ACS880/ACS580 control board—no extra panel space needed
Mission: Local 16-axis synchronization (1 µs clock alignment), 20 ns event capture, SIL3/PL(e) safety, CPU load < 5 %
2. Real-time Written in Hardware
Dual-core ARM Cortex-A53 + FPGA fabric
Core 1: EtherCAT Master, 125 µs cycle
Core 2: ABB motion library (PVT, gearing, camming, 5th-order spline)
FPGA: 8-channel high-speed capture/output, jitter < 50 ns
Wire-free Safety
On-board Safe-Torque-Off, Safe-Stop1/2, SLS, SDI—hardwired & certified—cuts safety wiring time by 70 %
Shadow-Power Technology
Super-cap keeps logic alive for 5 s; 24 V lost, homing and data still saved—no 200 ms reboot embarrassment
3. Performance Lookup
|
Parameter
|
ZCU-12 Measured
|
Note
|
|
Synchronized axes
|
16
|
Cascade 4 cards → 64 axes
|
|
Sync jitter
|
< 100 ns
|
1 µs global clock distribution
|
|
Event capture accuracy
|
20 ns
|
Encoder index or color mark
|
|
Safety level
|
SIL3 / PL(e) / Cat. 4
|
TÜV Rheinland certified
|
|
Typical power consumption
|
4.8 W
|
No extra heat-sink required
|
|
Firmware update
|
Online, < 30 s
|
Zero impact on production
|
4. 60-second Wiring Map
|
Port
|
Purpose
|
Field Handy Tip
|
|
X1 EtherCAT IN
|
Drive ring inlet
|
Built-in QoS, auto-bypass if wire breaks
|
|
X2 EtherCAT OUT
|
Next cabinet cascade
|
100 m max without repeater
|
|
X3 Hi-Capture
|
4 × 5 V RS422
|
Color mark, flying shear, laser trigger
|
|
X4 Safety unlock
|
Dual-channel 24 V
|
Key-switch + light curtain, no external relays
|
5. Scenario Snapshots
Disposable hygiene line: 16-axis electronic cam at 800 pcs/min; change-over = download new curve—mechanical cam disks retire.
Li-ion winding machine: 20 ns capture aligns cathode & separator; saves 2 mm material per roll ≈ USD 300 k/year on a 1 GWh line.
Robot 7th axis: Slip ZCU-12 into ACS880; robot track becomes servo axis #7, synchronized with 6 robot axes within 5 µm—no external controller needed.
