Product Item: Abrasion Resistance Ceramic Liners

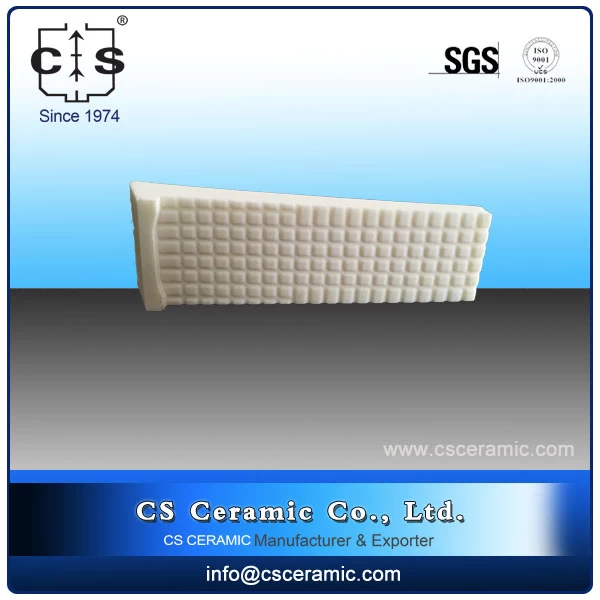

ALUMINA CERAMIC LINERS
We are factory,could quote you best price,also have own design department that meet your any needs, Welcome to visit our plant.
1>APPLICATION
This products are widely used as the anti-wearing material on the surface of transmission equipment in oil industry, mining industry, steel industry and power industry, aiming to reisit the striking against the wall of pipeline when material going through, the erosion of the chemical, and thermal shocking . It will effectively prolong the service life of equipment, and considered to be the best choice of anti-wearing and anti-corrosion material.
2>TECHNICAL DATA
|
Name
Items
|
CN70
|
CN80
|
CN90
|
CN93
|
CN95
|
|
Specific Gravity g/cm3
|
2.95~3.02
|
3.33~3.36
|
3.55~3.60
|
3.63~3.68
|
3.70~3.75
|
|
Mohs Scale Hardness
|
8.5
|
8.5
|
9
|
9
|
9
|
|
Compression Strength MPa
|
≥1700
|
≥1800
|
≥1850
|
≥2000
|
≥2250
|
|
Color
|
yellowish
|
White
|
White
|
White
|
White
|
|
Equivalent Wear Loss
|
≤0.18‰
|
≤0.14‰
|
≤0.10‰
|
≤0.08‰
|
≤0.05‰
|
3>Size of Alumina Tile
We have plain and weldable in numerous sizes, as well as a full line of hex tile, for details
please check as following:
(1) size of alumina tile without hole
100×100×6/8mm
100×25×6/8/13mm
100×150×6/8/13/17/20/25mm
104×154×25.4mm
150×50×13mm
50×20×25mm
(2) size of weldable alumina tile:
100×100×6/8mm
100×25×6/8/13mm
100×150×6/8/13/17/20/25mm
104×154×25.4mm
(3) size of Alumina Mosaic
20×20×4/6mm
10×10×2/3/4/5mm
(4) size of hex tile
20×20×4/6mm
(5) size of alumina cylinder
Dia.20×20mm
Dia.25×25mm
Special offer: Most of our goods are produced to OEM order, please mark clearly height, bottom diameter, top diameter, wall thickness and any special requirements i.e. lips etc. To speed up quotations please supply a drawing and if appropriate, the name of the system in which they are to be used.
