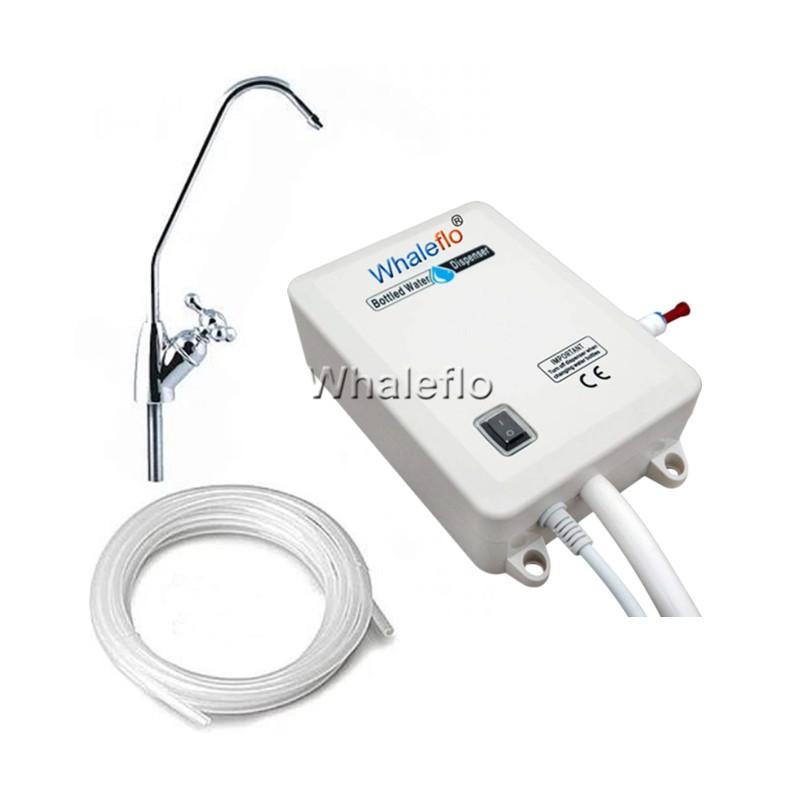

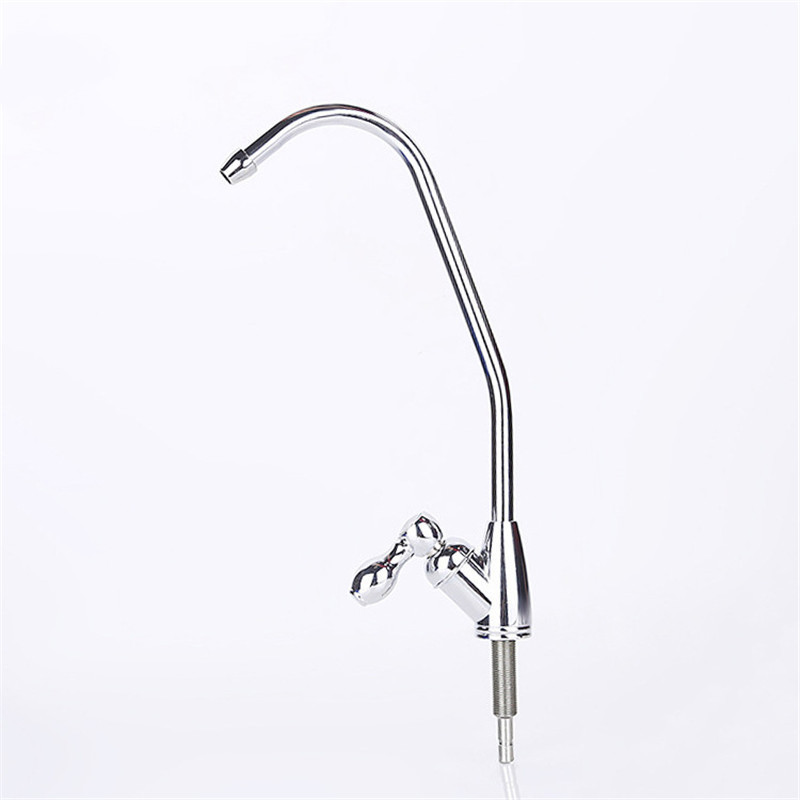

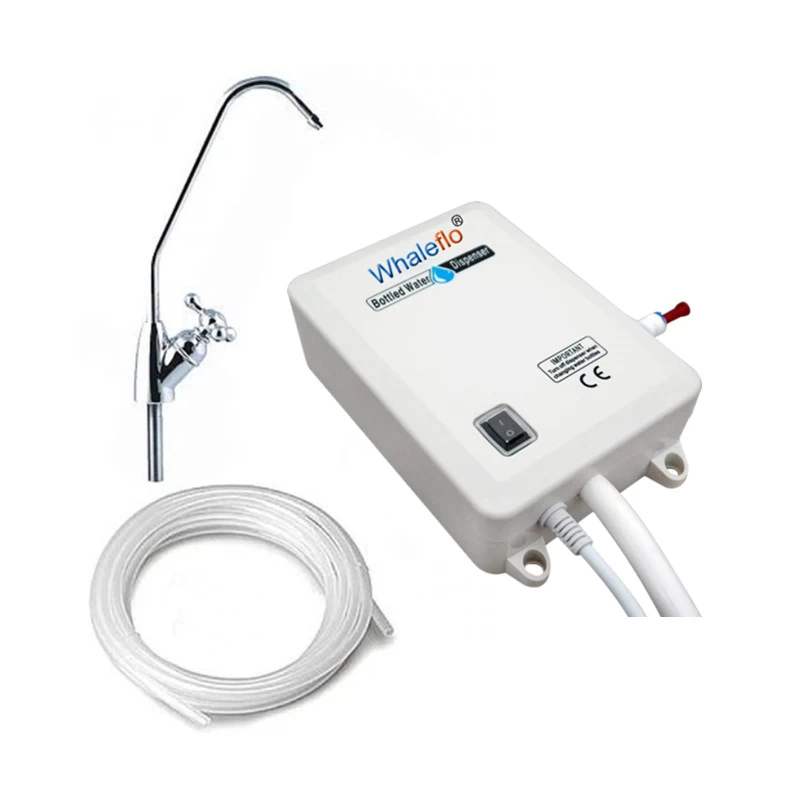

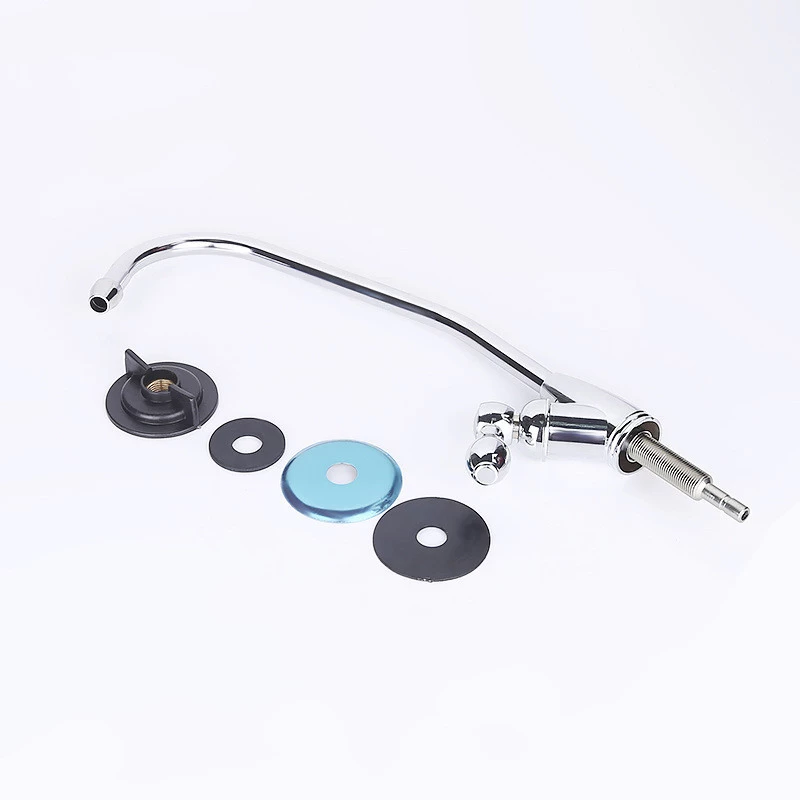

Bottle Water Dispenser System with 1/4 Inch Water Filter Kitchen Faucet
Description

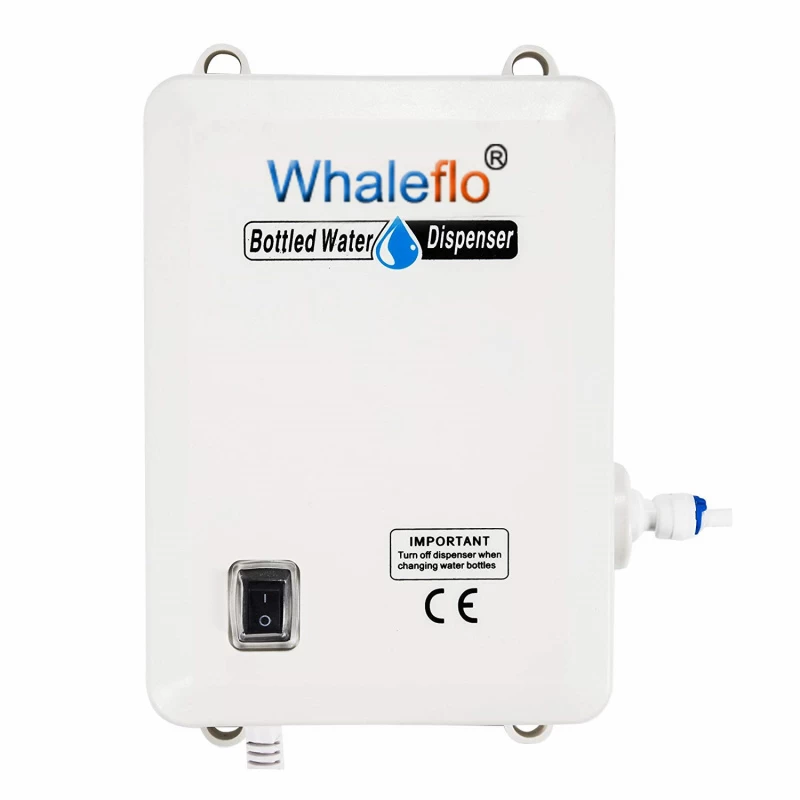

Whaleflo Bottle Water Dispensing System Design For Home And Commercial Applicances.

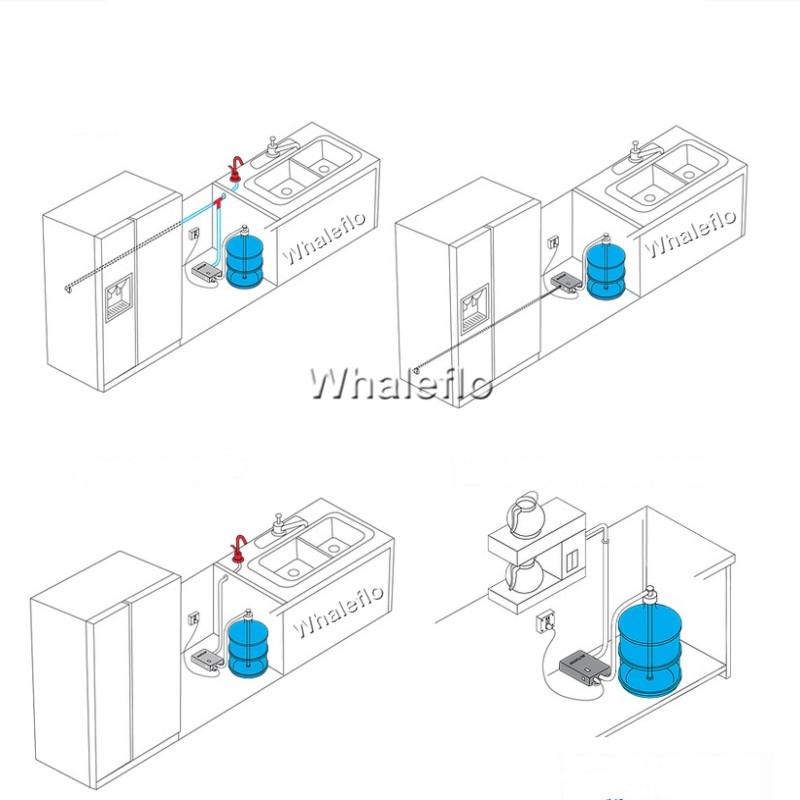

Works well for Refrigerator/Ice Maker/Coffee Machine/Faucet/Sinks.It Makes Water Supply More Convenient.
Features
Auto power off.
Low light consumption
Automatic pump operating Easy bottle change
UK/US/EU Plug optional.
Connect to your filtration kit/espresso machine easy
CE/Rohs/FDA/NSF,also with 12 months warranty.
Compatible with all brands and models of refrigerators.
Antibacterial food grade materials that prevent the proliferation of fungi and bacteria
Easy installation
No physical effort required
Specification
|
Model
|
GPM
|
Max
PSI
|
Outlet
|
Tubing
|
Volts
|
Amps
|
Cycle
|
Cord
|
Dimensions
(H x W x D)
|
Wt
(kgs)
|
|
BW1000A
|
1.0
|
40
|
1/4"
|
20'
|
115
|
0.5
|
50/60
|
6'
|
3.0" x 5.5" x 7.5"
|
3.5
|
|
BW2000A
|
1.0
|
40
|
1/4''
|
20'
|
220
|
0.25
|
50/60
|
6'
|
3.0" x 5.5" x 7.5"
|
3.5
|
|
BW3000A
|
1.0
|
40
|
1/4''
|
20'
|
12
|
5
|
|
6'
|
3.0" x 5.5" x 7.5"
|
3.5
|
|
BW4003A
|
1.0
|
40
|
1/4''
|
20'
|
115-240
|
0.5
|
50/60
|
6'
|
3.0" x 5.5" x 7.5"
|
3.3
|
|
BW2020A
|
1.0
|
40
|
1/4"
|
20'
|
220V/115V
|
0.25
|
50/60
|
6'
|
3.0"x5.5"x 7.5"
|
3.5
|
TROUBLESHOOTING
System Will Not Dispense Water
-
Check on/off switch position
-
Check power to dispensing system
-

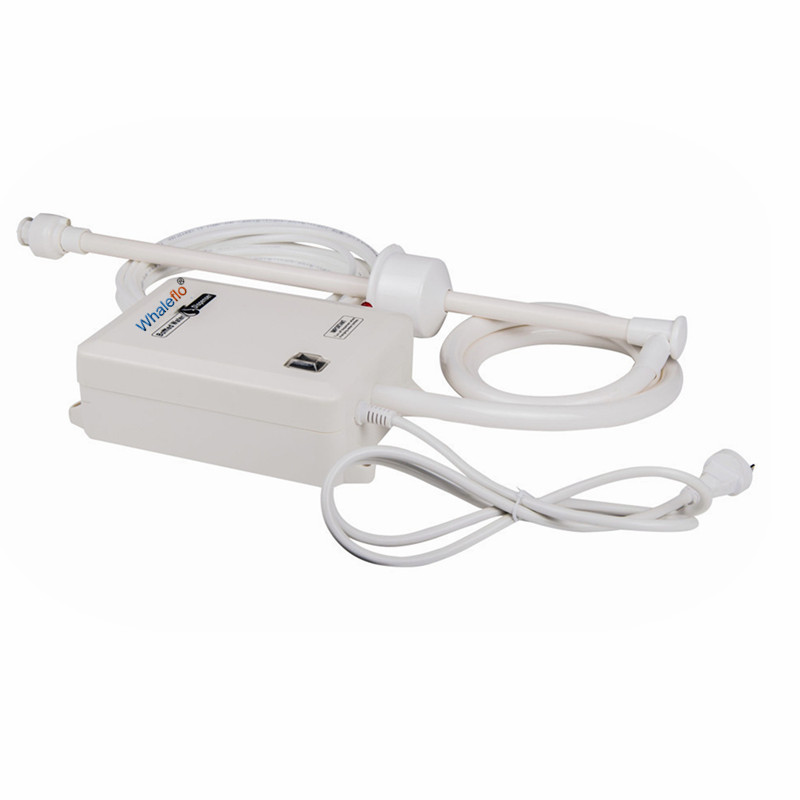

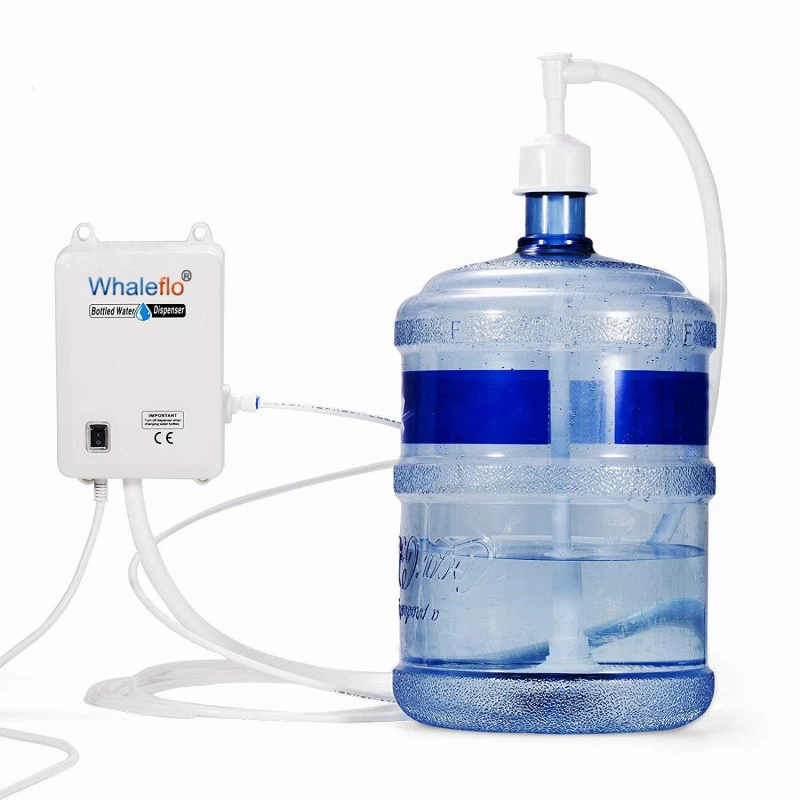

Check location of suction wand in bottle
-
Check for empty bottle
-
Check for air in system
Discharge Tube Leaks At Fitting
-
Push tube all the way into tube stop
-
Remove tube and cut 1/4 in.(6.35mm)off end,square and reinstall
-
Check correct tube size in fitting,tube size is 1/4 in.(6.35mm)O.D.Fitting should be 1/4 in.(6.35mm)I.D.
System Gets Warm and Turns Off
-
Check the float switch
-
Check for leaks in discharge tube
System Will not Shut-Off
-
Check for leaks in tubing system
-
Check for leaks at bube fittings
-
Check for leaks at faucet,ice maker or refrigerator water valve
-
Check pressure switch by turning faucet off and on
-
Check float switch position in bottle
System Continually Turns Off and On While in Use
-
Check for restriction devise at appliance inlet.
-
Check for filter unit in line.
-
Check for internal filters in the refrigerator
