450w switching power supply 28v 12v 380v for beam LED lighting
Description:
This K53-UP450D2812HV model is the open frame switching power supplies 450 Watts available in triple output. Standard features include PFC, low leakage current, safety certification and free air convection cooling styles.
Features:
1, 450W high efficiency 28v 12V 380v beam power supplies;
2, This model Including filter, low output noise for audio power amplifier;
3,28v 12v 380v power supply 100-240VAC input voltage;
4, 450w beam lighting power supply with short-circuit, overload, over-current, over-temperature protections.
|
Parameter
|
|
Item NO.
|
K53-UP450D2812HV
|
|
Output
|
Output voltage
|
V1
|
V2
|
+380VDC
|
|
|
+28VDC
|
+12VDC
|
|
|
Rated current
|
4.3A
|
1.0A
|
0.84A
|
|
Current range
|
0-4.3A
|
0-1A
|
0-0.84A
|
|
Rated power
|
120W
|
12W
|
320W
|
|
Ripple & noise
|
280mVp-p
|
200mVp-p
|
10V
|
|
Voltage adjustable range
|
|
|
|
|
Output accuracy
|
±3%
|
±5%
|
＋5%/－2%
|
|
Line regulation
|
±1%
|
±1%
|
±1%
|
|
Load regulation
|
±1%
|
±5%
|
±2%
|
|
Set up,rise,keep up time
|
600ms, 50ms, 20ms
|
|
|
Input
|
Input voltage range
|
100V~240V AC
|
|
Input current
|
2.25A/230Vac, 5.3A/100V
|
|
Frequency range
|
50~60Hz`
|
|
Efficiency@230Vac
|
93.5% @230Vac
|
|
Power factor
|
＞0.96@230Vac, ＞0.99@110Vac
|
|
Inrush current
|
Cold start 40A/230Vac
|
|
Leakage current
|
<0.5mA@240V
|
|
Protection
|
Overload protection
|
150~200% automatic protection (380V is not allowed to short circuit)
|
|
Output over-voltage protection
|
----
|
|
Over-temperature protection
|
The S1 position is > 105°C will be protected, and 70°C is automatically restored.
|
|
Environment
Safety& EMC Standards
|
Work temperature,humidity
|
-20~40℃，10~90% RH，No condensation
|
|
Storage temperature humidity
|
-20~85℃，10~95% RH
|
|
Temperature drift
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES
|
|
Safety standards
|
GB4943
|
|
Withstand voltage
|
I/P-O/P:1.8KV; I/P-FG：1.8KV；O/P-FG:0.6KV AC 1min.
|
|
Insulation resistance
|
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
|
|
EMC standards
|
----
|
|
Others
|
Dimension
|
143mm*73mm*40mm (L*W*H)
|
|
Weight
|
0.7Kg
|
|
Note
|
1. All parameters 230VAC input, rated load, ambient temperature 25℃, measured under conditions of 70% humidity;
2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;
3. Ripple Test: 30cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;
4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;
5. Load regulation: the measured output load from 0 to 100% load change measured.
|

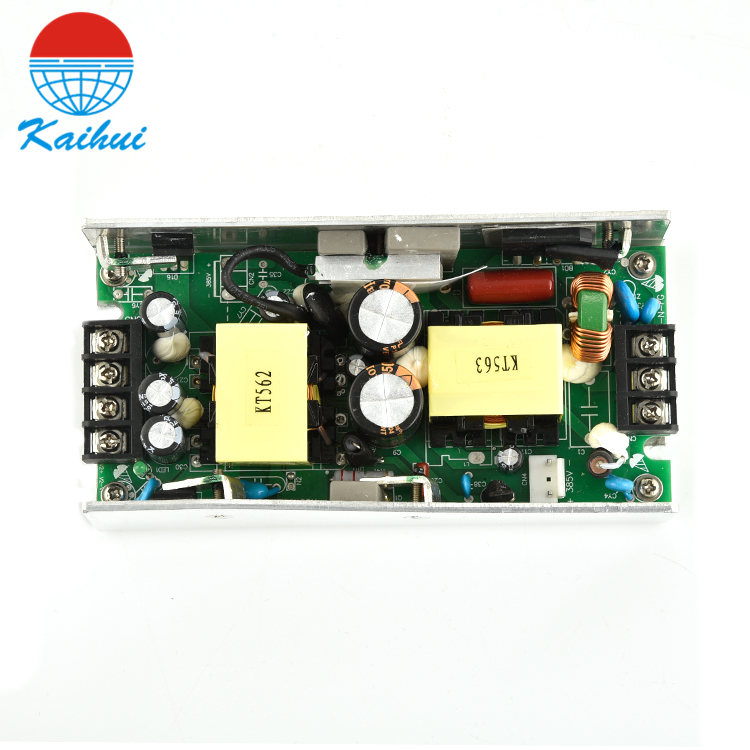

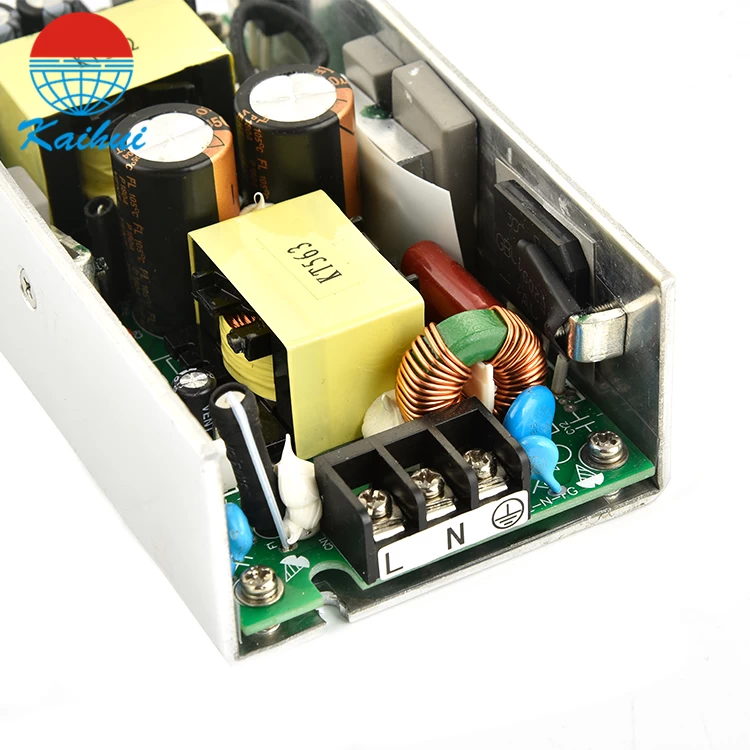

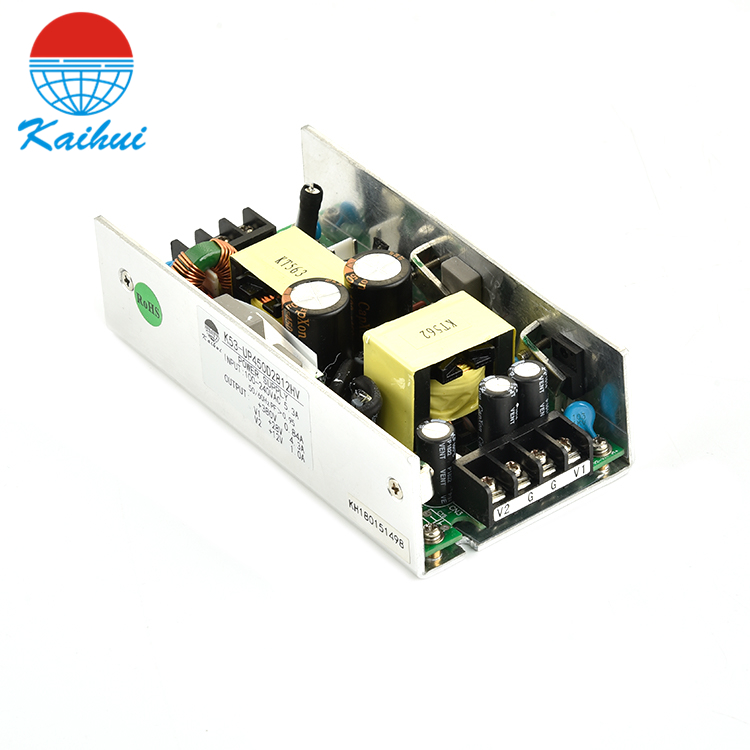

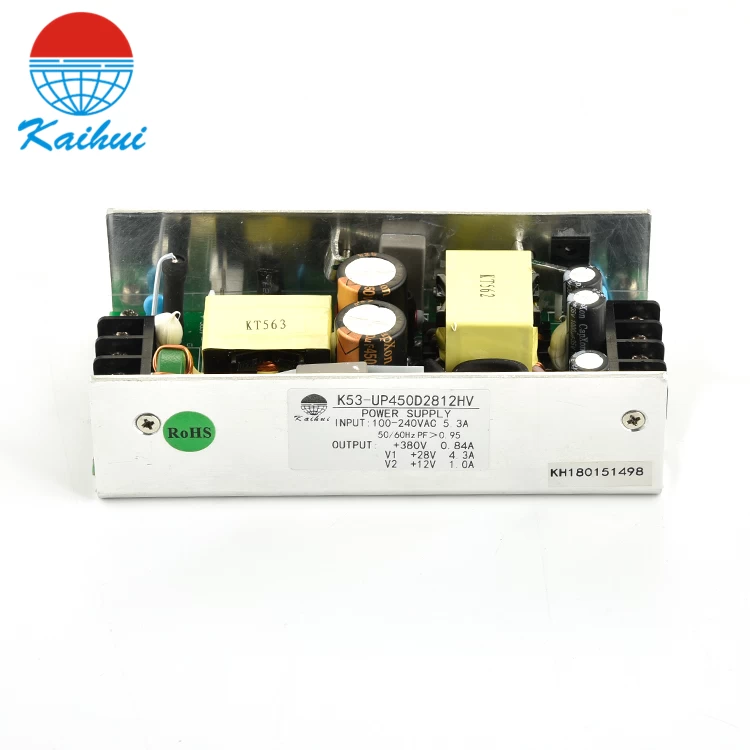

Product picture:
