AC Bearing Units RSAPP200 RSBPP200

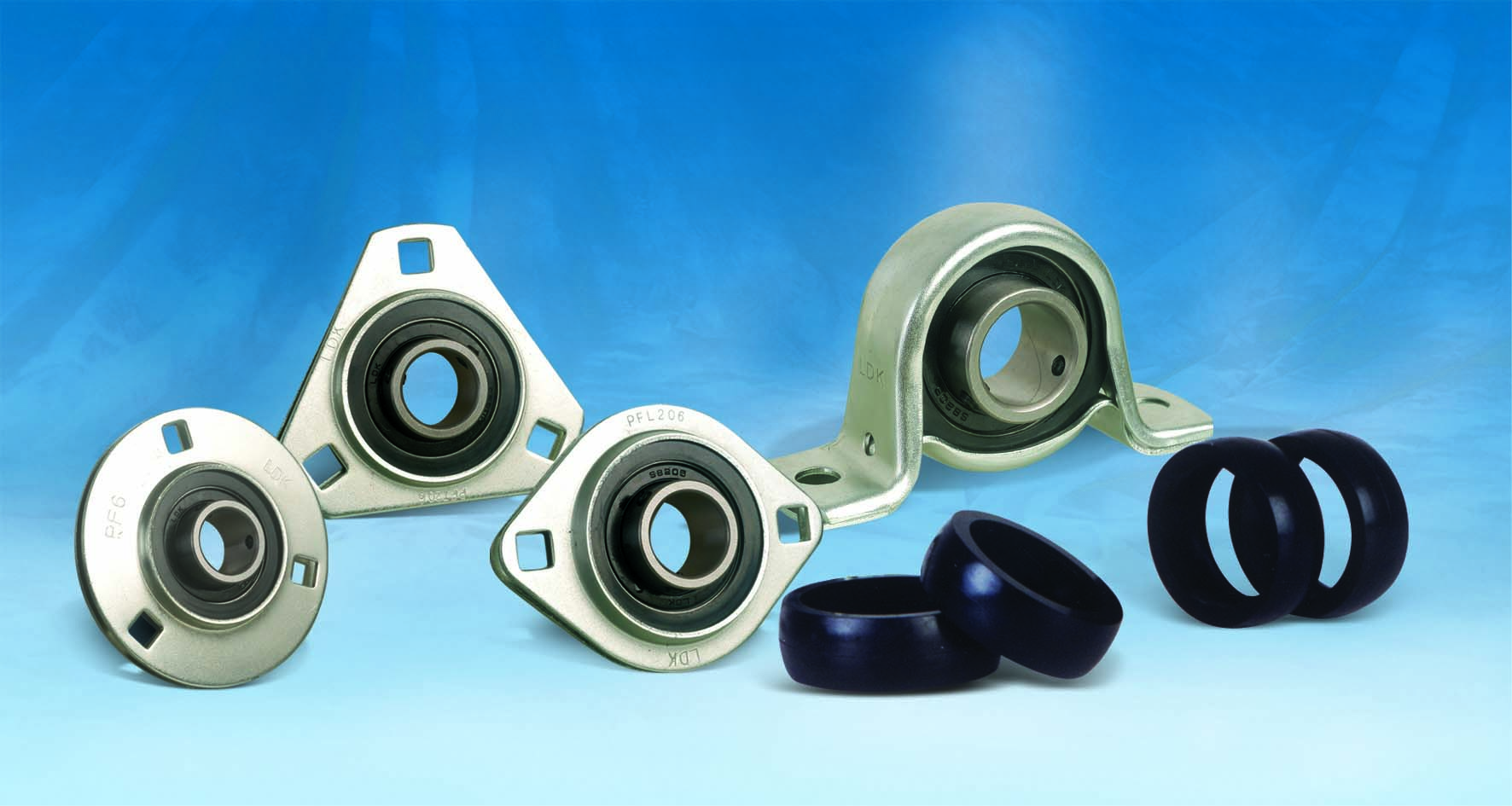

RSAPP200/RSBPP200  Rubber cushioned pressed steel pillow blocks,Eccentric/Setscrew locking


Facebook Twitter Pinterest LinkedIn 分享

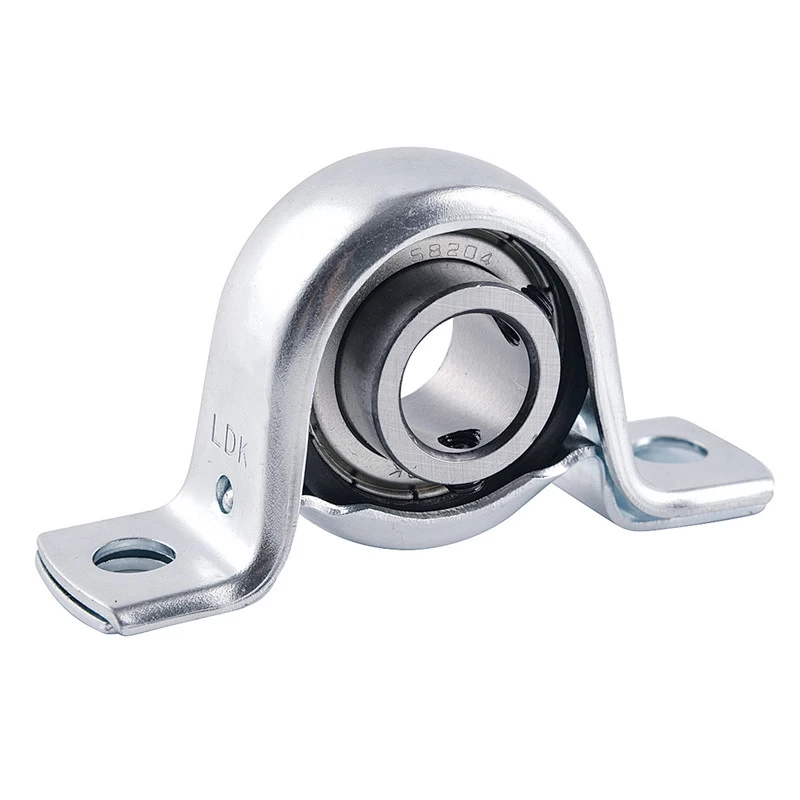

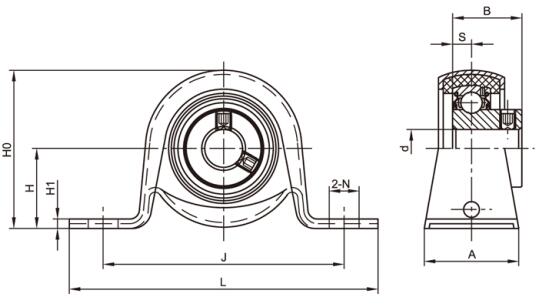

HVAC Rubber Mount Ball Bearings RSAPP206

Unit No.
Shaft Dia
d
Dimensions(mm) Bolt Size Weight
(in) (mm) L J H H1 Ho N A B1 S (mm)  (kg)
RSAPP201    12 98 76 25.4 3 50.4 9.5 30 28.6 6 M8 0.3
RSAPP201-8  1/2    98 76 25.4 3 50.4 9.5 30 28.6 6 M8 0.3
RSAPP202   15 98 76 25.4 3 50.4 9.5 30 28.6 6 M8 0.3
RSAPP202-10  5/8    98 76 25.4 3 50.4 9.5 30 28.6 6 M8 0.3
RSAPP203   17 98 76 25.4 3 50.4 9.5 30 28.6 6 M8 0.3
RSAPP203-11 11/16   98 76 25.4 3 50.4 9.5 30 28.6 6 M8 0.3
RSAPP204    20 108 86 28.6 4 56.5 11.5 32 31 7 M10 0.34
RSAPP204-12 3/4   108 86 28.6 4 56.5 11.5 32 31 7 M10 0.34
RSAPP205    25 117 95 33.3 4 66.3 11.5 38 31.5 7.5 M10 0.42
RSAPP205-14  7/8    117 95 33.3 4 66.3 11.5 38 31.5 7.5 M10 0.42
RSAPP205-15  15/16   117 95 33.3 4 66.3 11.5 38 31.5 7.5 M10 0.42
RSAPP205-16 1   117 95 33.3 4 66.3 11.5 38 31.5 7.5 M10 0.42
RSAPP206    30 130 106 39.7 5 78.2 11.5 43 35.7 8 M10 0.59
RSAPP206-18  1-1/8    130 106 39.7 5 78.2 11.5 43 35.7 8 M10 0.59
RSAPP206-19  1-3/16    130 106 39.7 5 78.2 11.5 43 35.7 8 M10 0.59
RSAPP206-20 11/4   130 106 39.7 5 78.2 11.5 43 35.7 8 M10 0.59

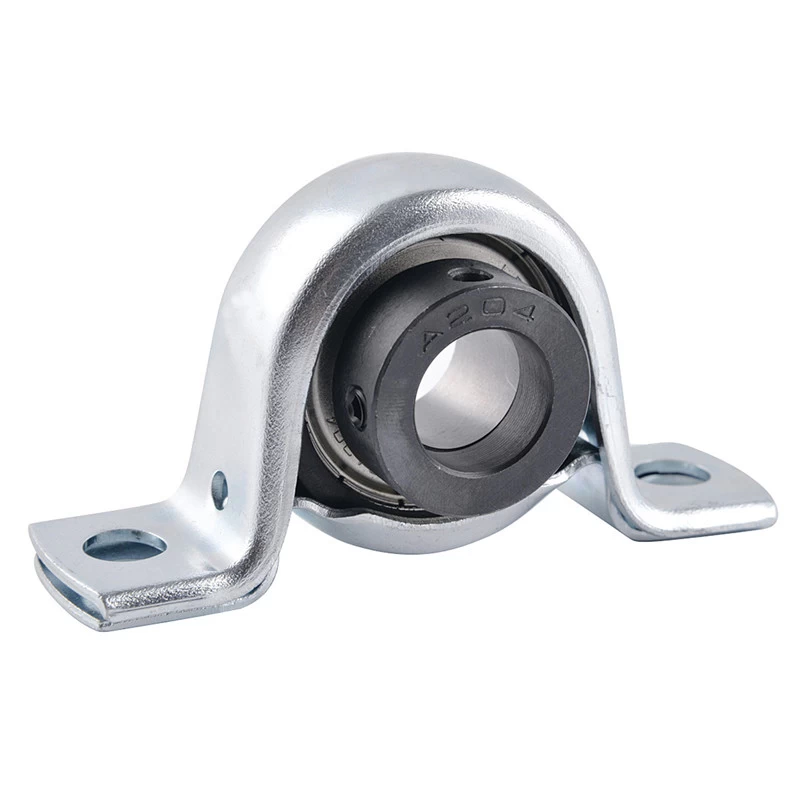

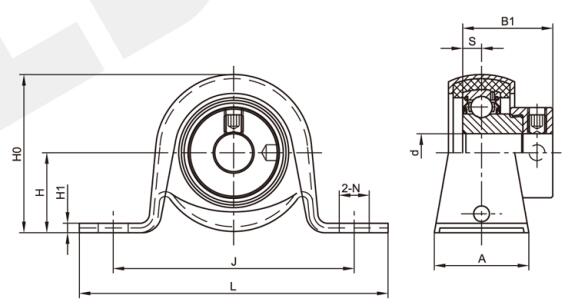

HVAC Rubber Mount Ball Bearings RSBPP208

Unit No.
Shaft Dia
d
Dimensions(mm) Bolt Size (mm) Weight (kg)
(in) (mm) L J H H1 H0 N A B S
RSBPP201    12 98 76 25.4 3 50.4 9.5 30 22 6 M8 0.19
RSBPP201-8  1/2    98 76 25.4 3 50.4 9.5 30 22 6 M8 0.19
RSBPP202   15 98 76 25.4 3 50.4 9.5 30 22 6 M8 0.18
RSBPP202-10  5/8    98 76 25.4 3 50.4 9.5 30 22 6 M8 0.18
RSBPP203   17 98 76 25.4 3 50.4 9.5 30 22 6 M8 0.17
RSBPP203-11 11/16   98 76 25.4 3 50.4 9.5 30 22 6 M8 0.17
RSBPP204    20 108 86 28.6 4 56.5 11.5 32 25 7 M10 0.25
RSBPP204-12 3/4   108 86 28.6 4 56.5 11.5 32 25 7 M10 0.25
RSBPP205    25 117 95 33.3 4 66.3 11.5 38 27 7.5 M10 0.35
RSBPP205-14  7/8    117 95 33.3 4 66.3 11.5 38 27 7.5 M10 0.35
RSBPP205-15  15/16   117 95 33.3 4 66.3 11.5 38 27 7.5 M10 0.35
RSBPP205-16 1   117 95 33.3 4 66.3 11.5 38 27 7.5 M10 0.35
RSBPP206    30 130 106 39.7 5 78.2 11.5 43 30 8 M10 0.46
RSBPP206-18  1-1/8    130 106 39.7 5 78.2 11.5 43 30 8 M10 0.46
RSBPP206-19  1-3/16    130 106 39.7 5 78.2 11.5 43 30 8 M10 0.46
RSBPP206-20 11/4   130 106 39.7 5 78.2 11.5 43 30 8 M10 0.46
