100w 24v enclosed switching power supplies
Description:
Features:
1, 100w 24v power supply with high efficiency, low temperature rise;
2, 24v 4.5a switching power supply includes filters, low output noise;
3, Wide range of AC input voltage;
4, This model have short circuit, overload, overvoltage protection.
|
SPECIFICATION
|
|
Item No.
|
K07-U100S12
|
K07-U100S15
|
K07-U100S24
|
K07-U100S48
|
|
Output
|
Output Voltage
|
+12V
|
+15V
|
+24V
|
+48V
|
|
Rated Current
|
8.5A
|
6.6A
|
4.5A
|
2A
|
|
Current Range
|
0-8.5A
|
0-6.6A
|
0-4.5A
|
0-2A
|
|
Rated power
|
102W
|
99W
|
108W
|
96W
|
|
Ripple
|
100mVp-p
|
100mVp-p
|
100mVp-p
|
240mVp-p
|
|
Adjustable output range
|
±10%
|
|
Output Accuracy
|
±1%
|
|
Line Regulation
|
±0.5%
|
|
Load Regulation
|
±0.5%
|
|
Set up,Rise,Keep up time
|
250ms,50ms,50ms
|
|
Input
|
Input Voltage range
|
90~264V AC;110~360V DC
|
|
Input current
|
1.6A/115V;0.8A/230V
|
|
Input frequency
|
47~63Hz
|
|
Efficiency
|
84%
|
84%
|
85%
|
86%
|
|
Inrush current
|
30A@230V
|
|
Leakage Current
|
<0.5mA@240V
|
|
Protection
|
Over load protection
|
105~180%,Hiccup,automatic recovery
|
|
Short circuit protection
|
Hiccup,automatic recovery
|
|
Output overvoltage
|
16~20V
|
20~24V
|
28~33V
|
54~60V
|
|
Over Temp.protection
|
------
|
|
Environment
|
Working Temp.,Humidity
|
-10~60℃，10~90% RH，No condensation
|
|
Storage Temp.,Humidity
|
-20~85℃，10~95% RH
|
|
Temp.,Drift
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES
|
|
Safety&EMC Standards
|
Safety standards
|
MEET TO GB4943,EN60950
|
|
Pressure
|
I/P-O/P，I/P-FG：1.5KV；O/P-FG:0.5KV DC 1min.
|
|
Insulation resistance
|
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
|
|
EMC standards
|
MEET TO GB9254,EN55022 CLASS B
|
|
Others
|
Demension
|
159*98*40mm CASE：K807
|
|
Weight
|
0.5Kg
|
|
Note
|
1. All parameters 230VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;
2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;
3. Ripple Test: 30cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;
4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;
5. Load regulation: the measured output load from 0 to 100% load change measured.
|

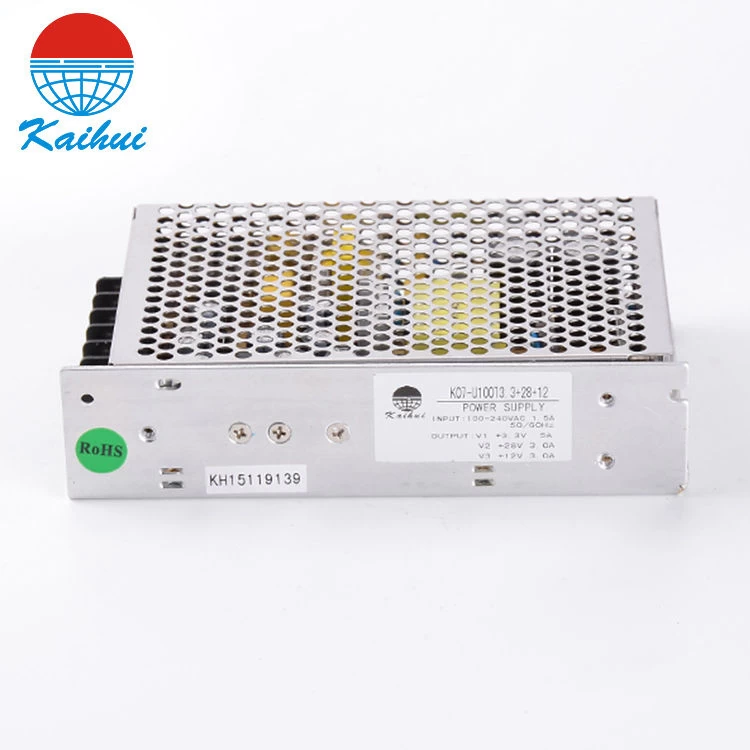

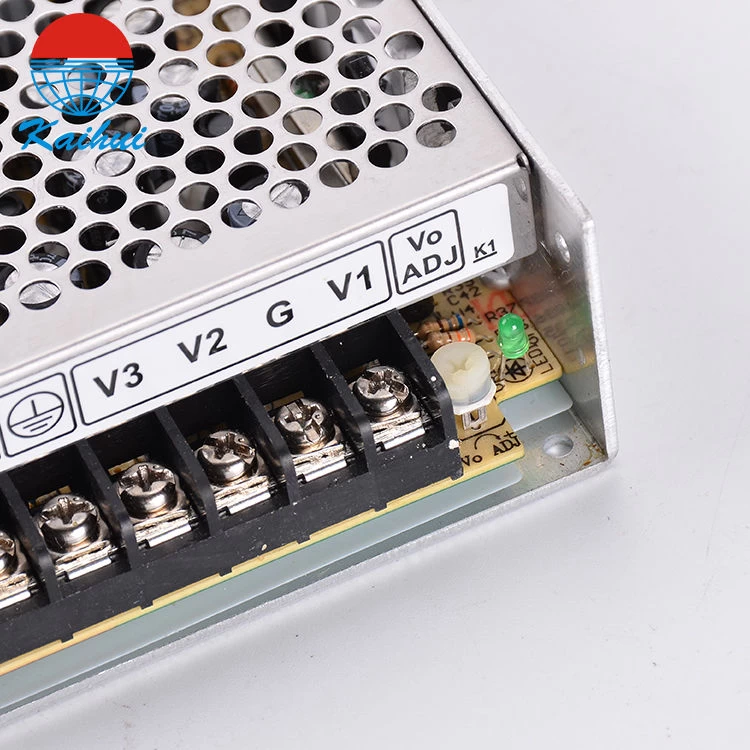

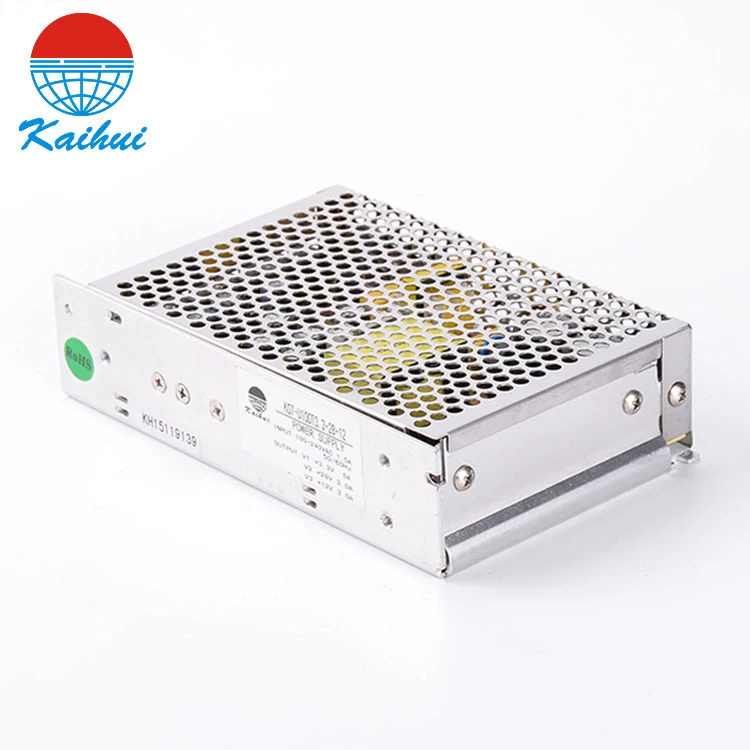

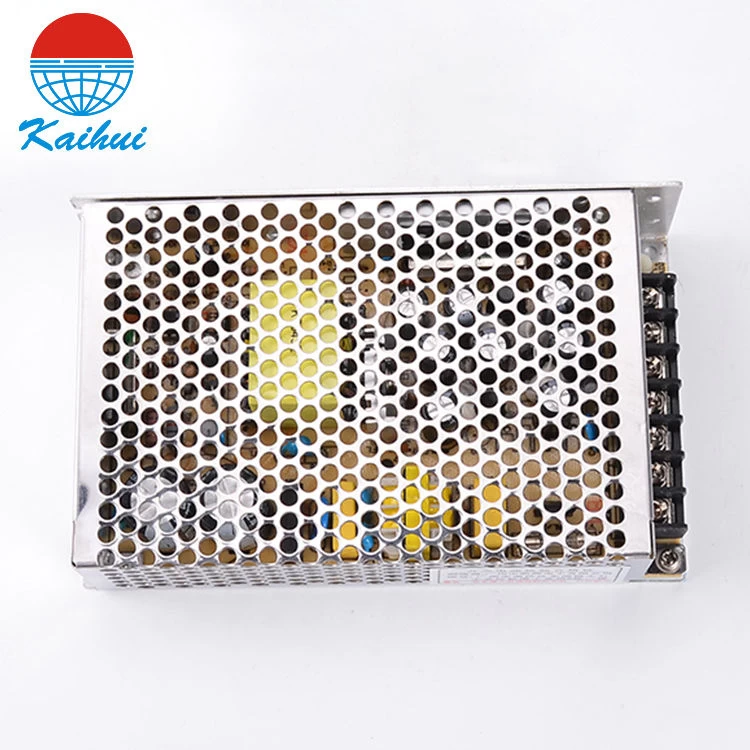

Product picture:
FAQ
Q1. Can I have a sample order for power supply?
A1: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: Do you accept OEM/ODM for the switching power supply?
A2: Yes. we do.
Q3:How about the quality?
A3:We have the better professional and experienced engineers team and strict QA and QC system.Repair rate under 0.1%~0.2%
Q4:What is PFC?
A4:PFC stands for Power Factor Correction. The purpose of PFC is to improve the ratio of apparent power and real power. The power factor is only 0.5~0.7 in non-PFC models. In PFC models, the power factor can reach above 0.9. The calculation formulas are as below:
Apparent Power=Input Voltage x Input Current (VA)
Real Power= Input Voltage x Input Current x Power Factor (W)
