AC Shaded Pole Fan Asynchronous Gear Engine Motor

AC shaded-pole motors are widely used in small household appliances such as electric fans, hair dryers and vacuum cleaners because of their simple structure, low manufacturing cost and low running noise.




AC shaded pole motors come in a variety of shapes and sizes and are convenient for powering displays, models and marble machines.


About this item

  • Designed for projects that requires cooling or ventilation; or as a replacement fan motor for various products.

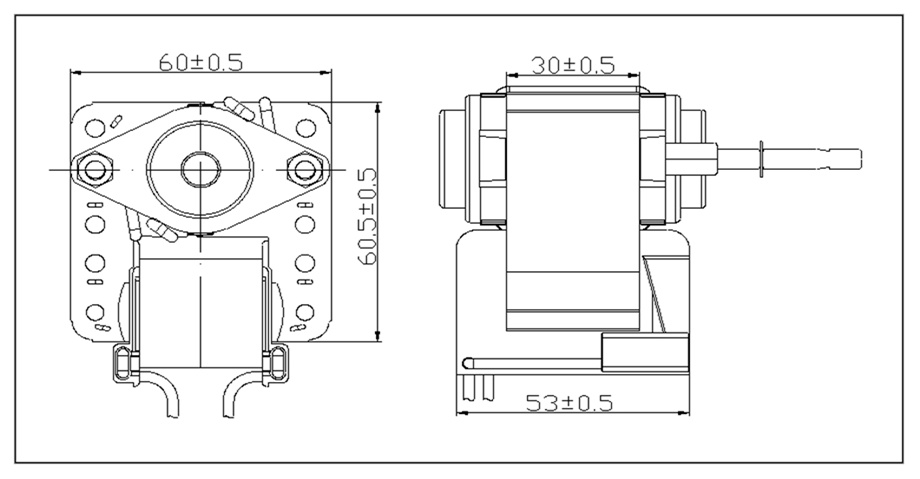

  • Dimension of the motor is 61 mm(L) x 30 mm(H) / The size of fan in inch is 2.40 in(L) x 1.18 in(H).
  • Operating Voltage Range: AC 90 ~ 240V | Frequency: 50/60Hz | Current / Speed / Shaft Diameter / Shaft Length: according to customer requirements.
  • Lead wire: (+): Red wire; (-): Black wire. Bearing Type: Sleeve Bearing / Double Ball Bearing; Life: working up to 50,000h at 25 degrees.
  • Please Comfirm the Motor Size, Voltage, Connector and other parameters before purchase.

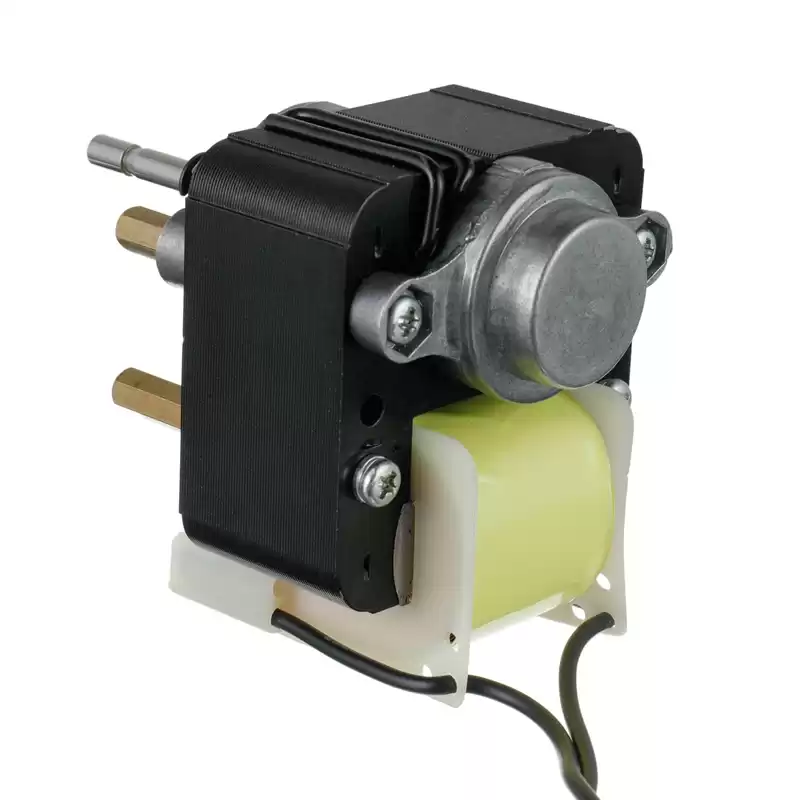

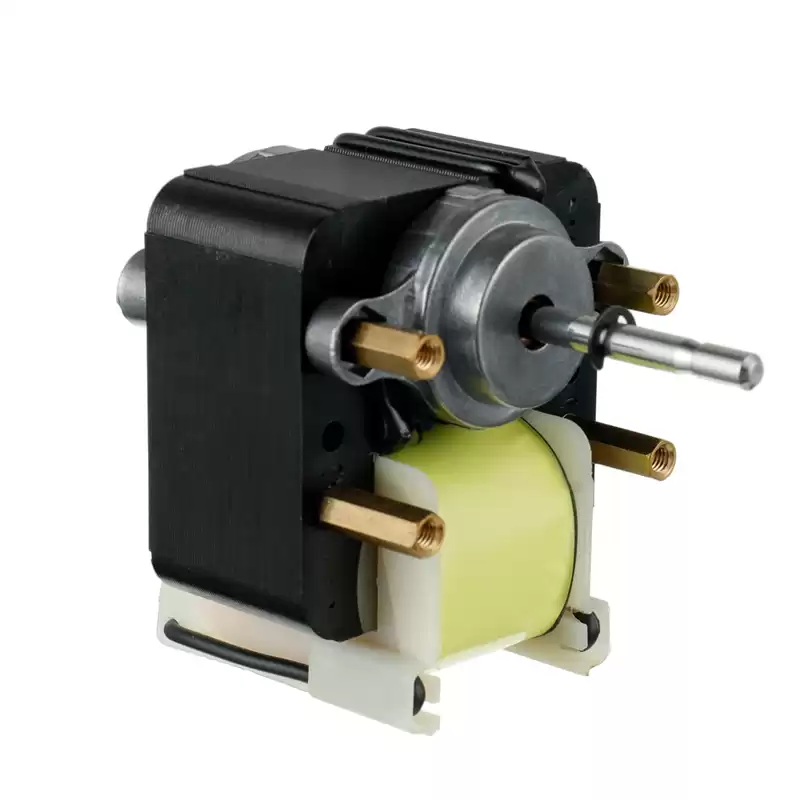

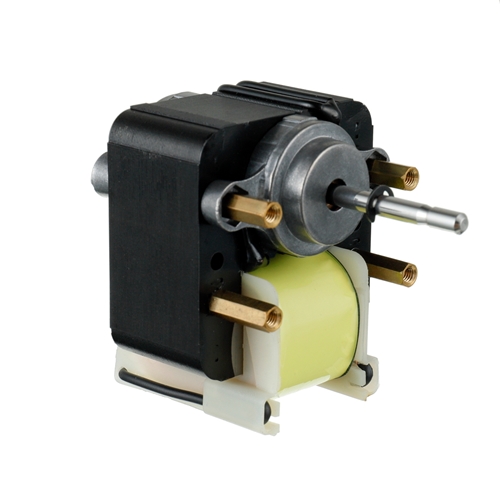

AC Shaded Pole Motor Z6130

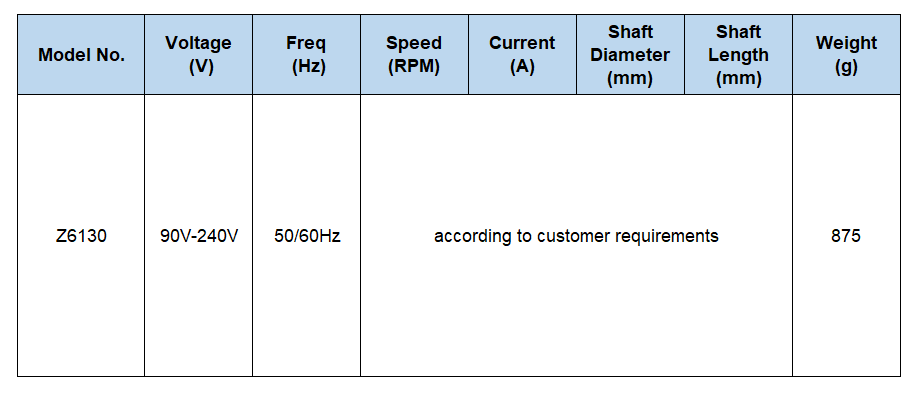

General Specification:

Operating Temperature: -10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing






·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.



Feature

  • Impedance or Thermally protection;
  • Compact design, reliable and guaranteed quality;
  • Low running noise, energy saving and high efficiency;
  • Can be customized as per the precise requirement of clients;
  • Dimensional accuracy, robust construction, perfect finish, high performance, longer service life and Reliability;



More Models

These fans are available in several sizes to accommodate diverse applications— such as those found in tight spaces or difficult to reach areas.

Type Model Type Model
AC Shaded Pole Motor Z4815 DC Brushless Motor M25-20
Z6110 M38-20
Z6120 M6830
Z6130
Z8213
Z8220



Application

They are suitable for small devices like relays and fans because of its low cost and easy starting. Used in exhaust fans, hair dryers and also in table fans.

  • Customized projects related to air conditioning, printers, copiers, sports equipment and many other fields.
  • Create a good cooling and ventilation system to keep household appliances and other electronic equipment running at the ideal temperature and the best speed.



Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.

In addition, our fans are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.




Customers

Over the years, we have been with many well-known brands to achieve friendly cooperation.

Sincerely thank our customers for their trust and support.



Certifications

All our products are approved by CE, UL and ect, as well as in compliance with RoHS requirement, quality is reliable and guaranteed.
