AC to DC 24V 20W Constant voltage LED driver

AC to DC 24V 20W Constant voltage LED driver

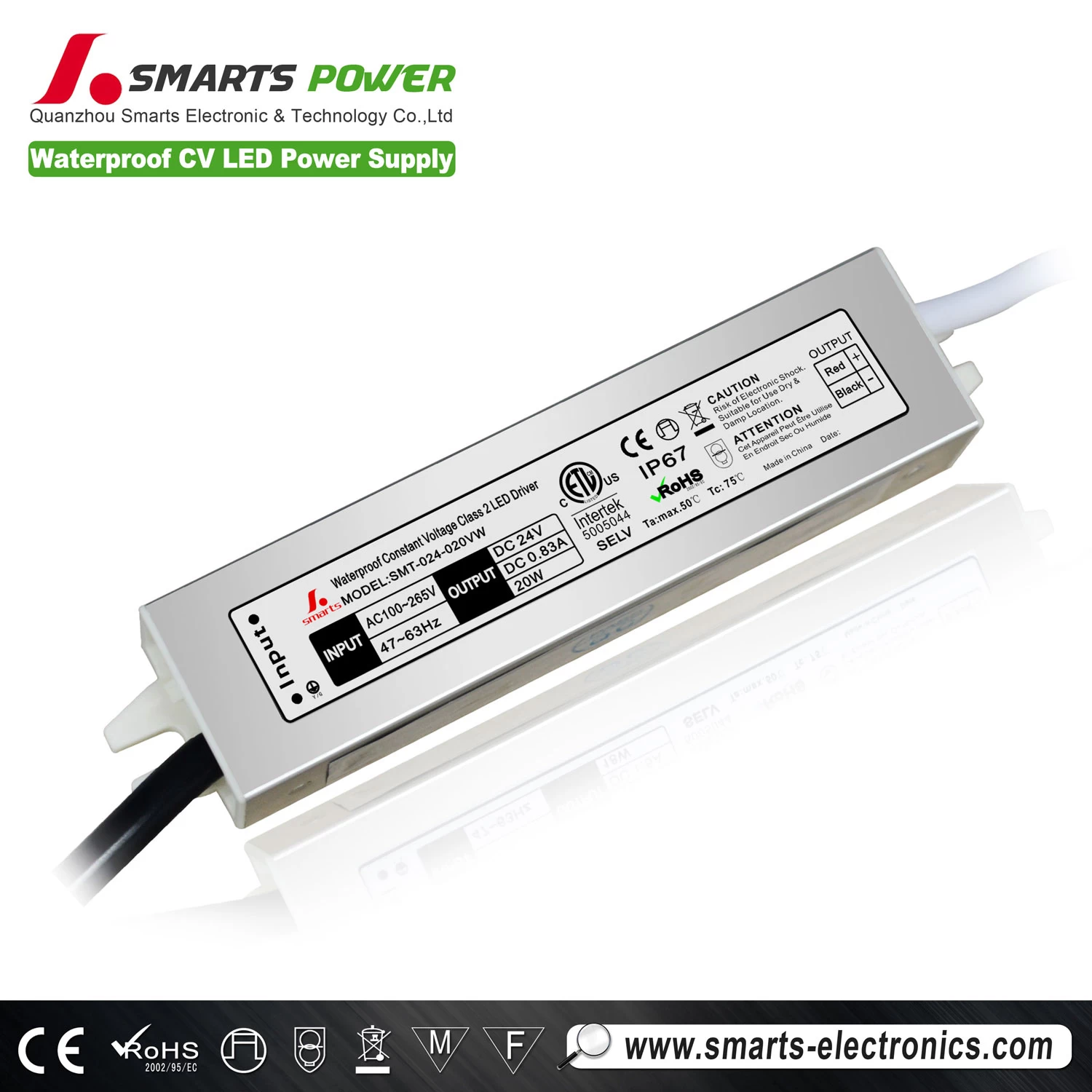

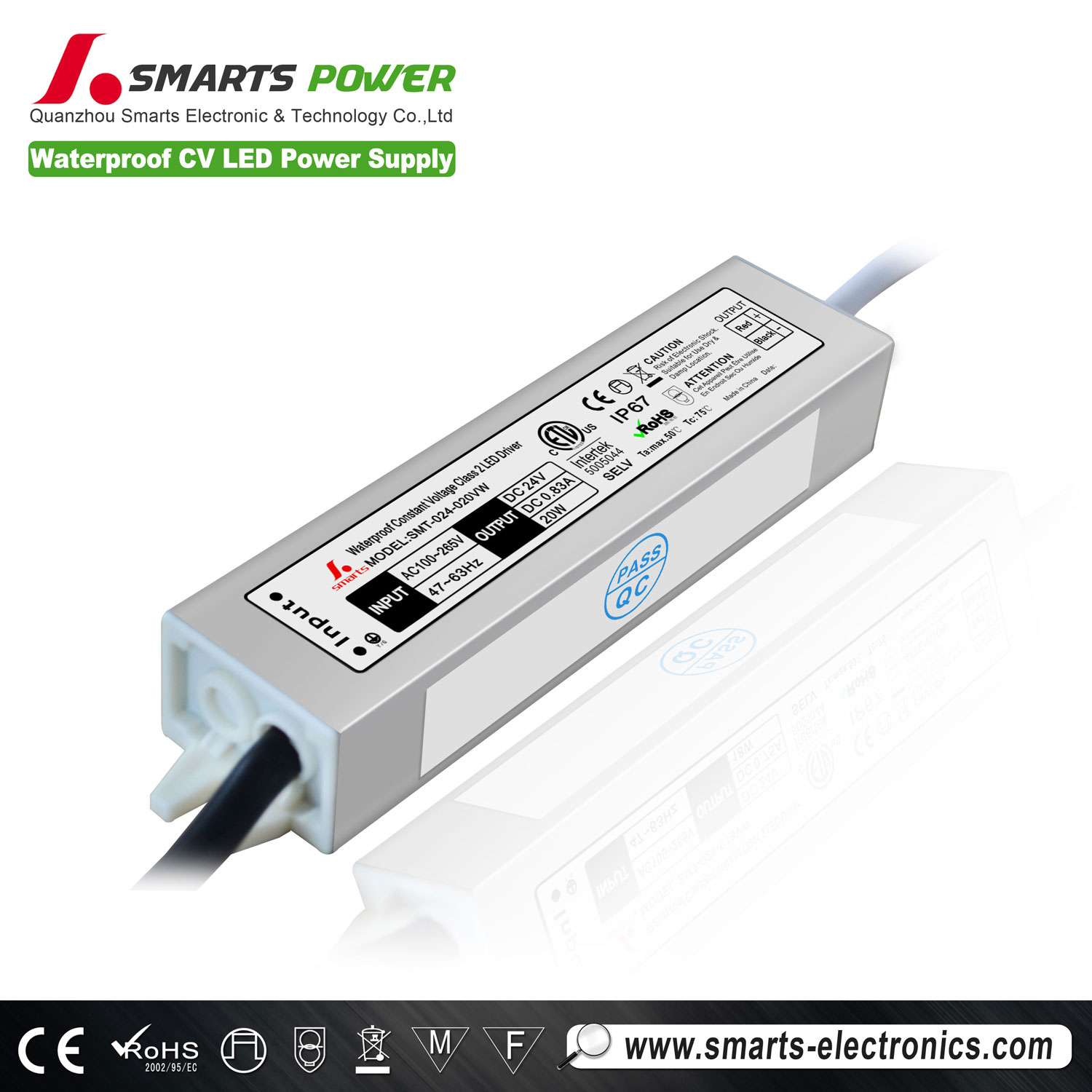

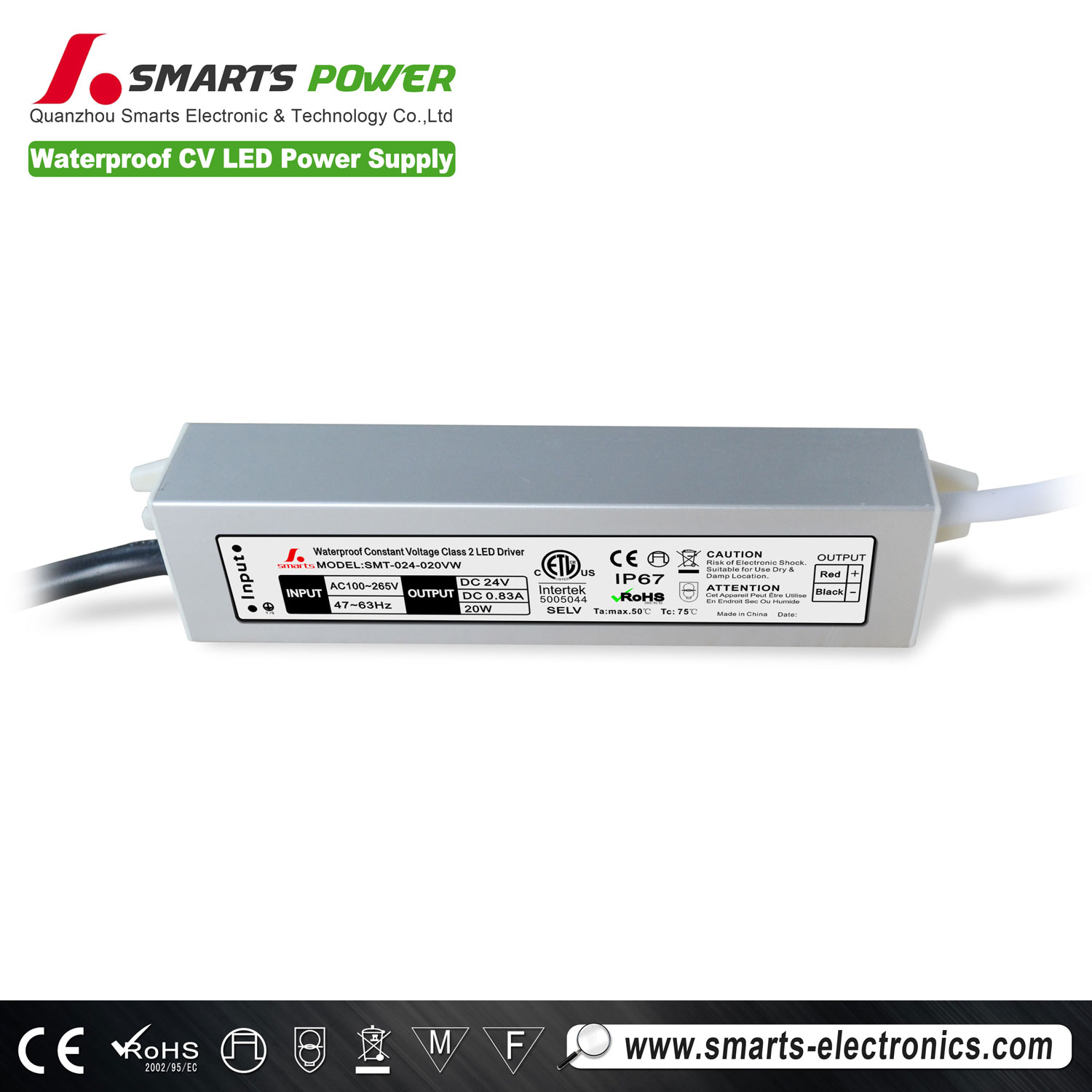

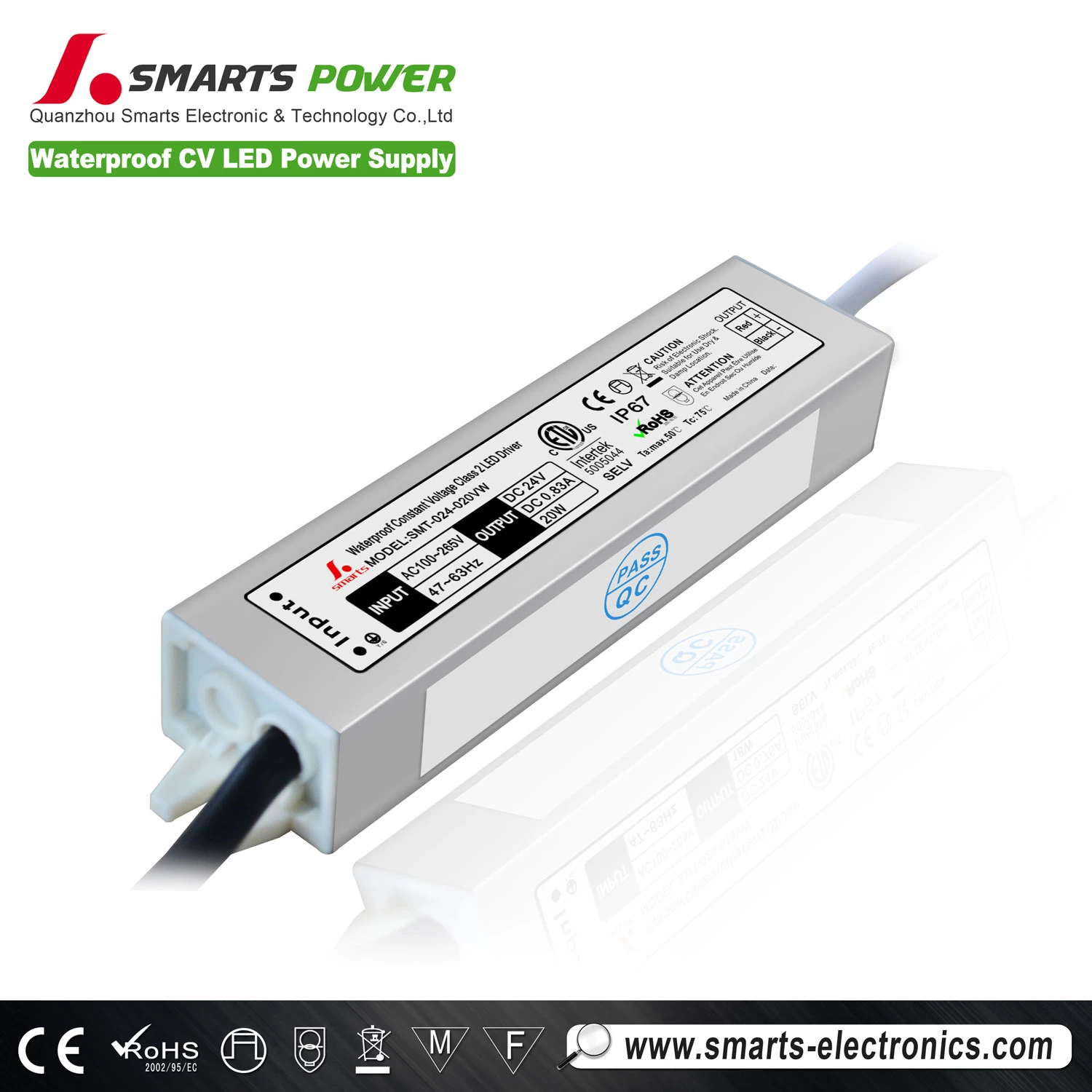

Product name: AC to DC 24V 20W Constant voltage LED power supply


Specifications

1. Modle: SMT-024-020VW
2. Input: 100~265vAC / 47-63HZ
3. Output : 24V  0.83Amp  20Watt
4. Case material: Plastic/Aluminum
5. Waterproof rate: IP20/IP67
6. Unit weight: 91g
7. Product size: 116*44*20mm(IP20)/130*29*20(IP67)
8. Box size: 299*224*176mm
9. Pack qty: 50pcs/ctn
10.Pack weight: 9.2kg/ctn
11.Produt cord: connecting terminal(IP20) / 18AWG*20CM
13.Two years warranty (We promise to replace new ones to you if there is any defective happen during the warranty period)


Features

1. High efficiency,save energy ,protected environment.
2. High stability and low ripple, increase light efficiency and decrease light attenuation.
3. Meet to safety standard and EMC
4. Assure LED stability long lift and light efficiency by constant voltage.
5. Integrity protection,over loading, over voltage ,over current.
6. Protections:Short circuit/Overload/Over temperature
7. Cooling by free air convection
8. 100% full load burn-in test.
9. Suitable for LED lighting


Environment

1. Working temp: -30~+50℃ (Refer to output load derating curve)
2. Working humidity: 20~99% RH non-condensing(Waterproof)
3. Storage temp. humidity: -40~+80℃,10~99%RH


Safety

* Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved
* Withstand Voltage : I/P-O/P: 3000KVAC
* Isolation Resistance : I/P-O/P:100M Ohms/500VDC

Applications

Our products are widely used in various industries, such as
* indoor LED illuminating lights
* LED Neon
* LED urban Decoration
* LED Lighting Advertising,
* LED Display
* Safety Protection Apparatus
* Telecommunications
* Networks

* Vehicle Lights Controller Panels,etc.
