active PFC 36w 3amp 12v ac to dc waterproof IP67 led 12v power supply
Part number SMT-012-036VTSW LED power supply can be operated from 100 to 277 VAC and with output 36 watt 12Volt DC current at 3 amp. ·Strong compatibility, flicker-free dimming is the main features.
Specification
|
model
|
SMT-012-036VTSW
|
SMT-024-036VTSW
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
|
|
Voltage Accuracy
|
±5%
|
±5%
|
|
|
Rated current
|
3.0Amp
|
1.5Amp
|
|
|
Rated power
|
36W
|
36W
|
|
|
Voltage Regulation
|
±0.5%
|
|
|
Load Regulation
|
±1%
±1%
|
|
Input
|
Voltage Range
|
100-277 VAC
|
|
|
Frequency Range
|
47～63HZ
|
|
|
Power Factor ( Typ.）
|
PF≧0.99/110V ; PF≧0.98/277V
|
|
|
Full Load Efficiency（Typ.）
|
>83%
|
>84%
|
|
|
AC Current（Typ.）
|
0.5A/100VAC / 0.23A/277VAC
|
|
|
Inrush Current（Typ.）
|
7A, 50%, 420us
|
|
|
Leakage current
|
<0.27mA/110VAC; ﹤0.25mA/277VAC
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition
is removed.
|
|
|
Over Loading
|
≤120% shut down o/p voltage, re-power on to recover
|
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40～+60℃
|
|
|
Working Humidity
|
20～90%RH,non-condensing
|
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
|
Vibration
|
10～500Hz，2G 10min./1 cycle，period for 60min.
each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
|
Withstand voltage
|
I/P-O/P:2KVAC
|
|
|
Isolation resistance
|
I/P-O/P：100MΩ/500VDC/25℃/70%RH
|
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,,11, ,
Alight industry level
|
|
Others
|
Weight
|
0.35Kg
|
|
|
Size
|
260*32*20mm (L*W*H)
|
|
|
packing
|
50PCS/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,
Rated load and 25℃of ambient temperature.
2. Tolerance:includes set us tolerance,line regulation and load regulation .
|

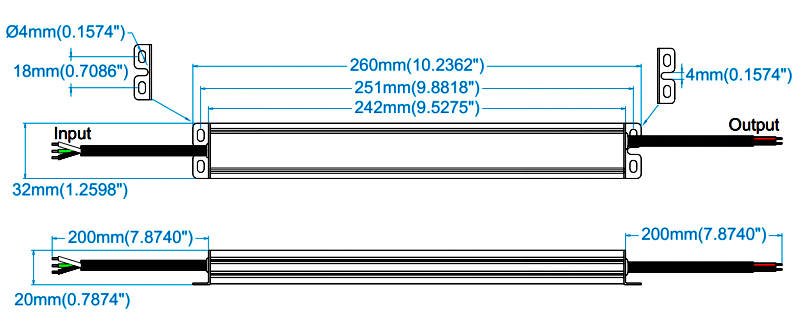

Mechanical Specification
Input:18AWG Black and White to be connected to AC L and N ,Green wire go ground,
Output: Red is（DIM+）,Black is（DIM-）
Common causes of the SCR dimmer damage?
SCR dimmers are widely used in the dimming system, but many users have encountered SCR be damaged when using phase cut dimming power supply. The following are 4 common causes of the SCR dimmer damage.
---Voltage breakdown.
----Current damage.
---The edge damage.
