Active Power Filter APF

YTPQC-APF based on 3-level topology, is an Active Power Filter (APF) system designed to eliminate harmonic oscillations and reduce costs consequently. APF is a versatile solution, easily tailored to deliver power factor improvement, voltage variation control, flicker mitigation and load balancing functionality, and highly improved power quality in networks while reducing harmonic pollution.



YT-PQC-APF Active Power Filter

YTPQC-APF Active Power Filter is a perfect and comprehensive solution to the power quality issues of power grid , such as harmonics, reactive power and 3 phase load unbalance. YTPQC-APF which is in parallel to power grid can detect the harmonic wave in power grid in time, generate the reverse-phase compensation current through the converter and dynamically filter the harmonic wave in power grid.

YTPQC Active Power Filter basics

The operation of YTPQC-APF is unaffected by multifarious load forms and power grid structures. And it will not produce harmonic oscillation (resonance) along with the system, thus perfectly realizing harmonic control under diverse loads. YTPQC Active Power Filter can fully accomplish dynamic reactive compensation, control the capacitor switching and ultimately heighten the power factor of power grid. Meanwhile, YTPQC-APF has the function of controlling the three-phase load current unbalance, thus comprehensively handling various power quality matters in power grid.



Modular Design

YTPQC Active Power Filter has a advanced modular design. Usually YTPQC-APF consists of one or several APF modules and an optional touched LCD Human Machine Interface. Each APF module is an independent harmonic filtering system, and users can change the harmonic filtering system rating by adding or removing APF modules.

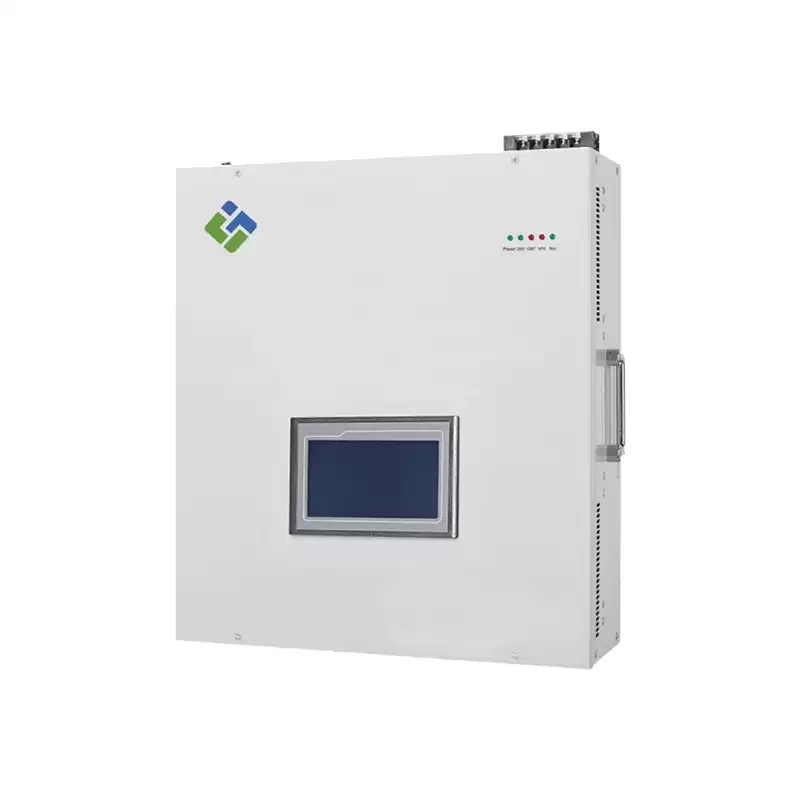

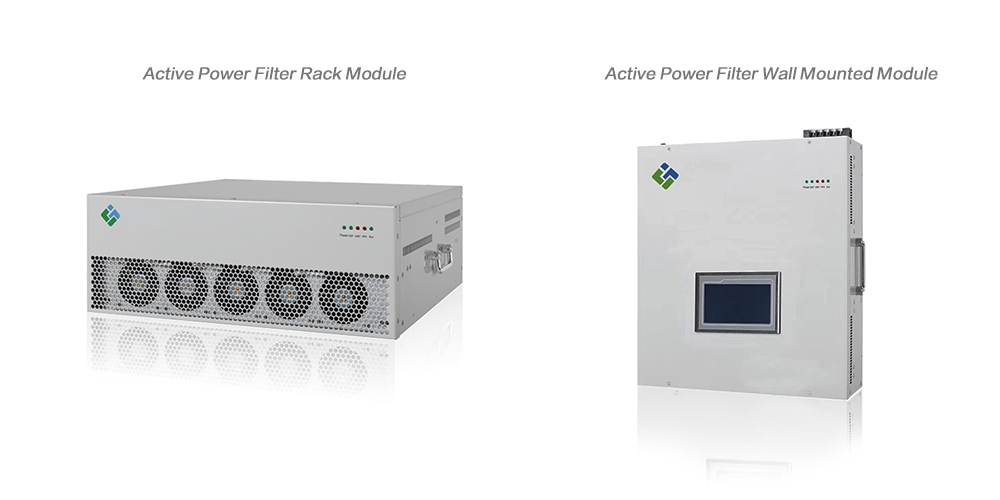

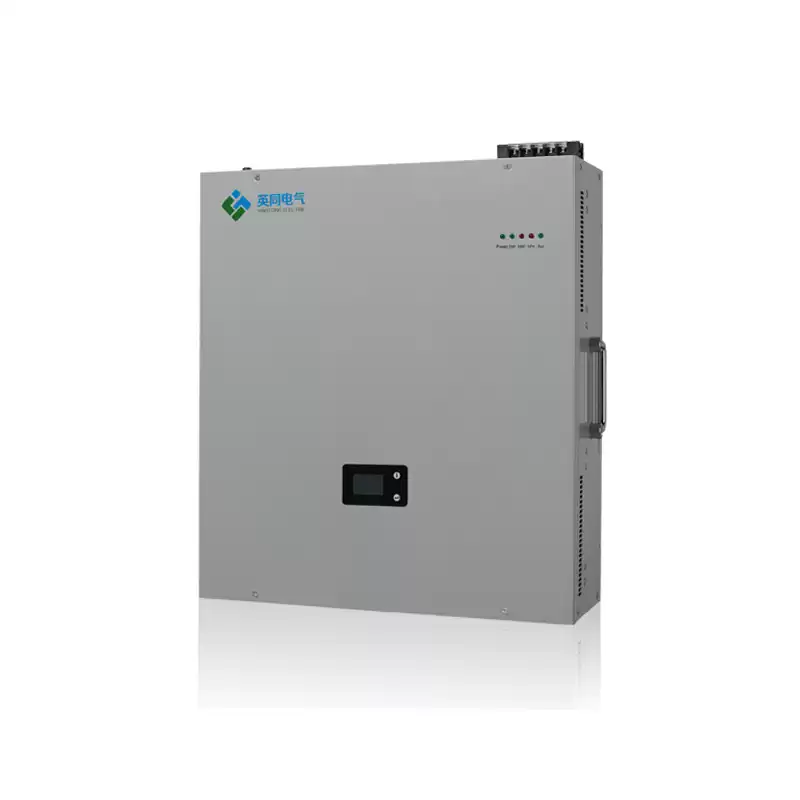

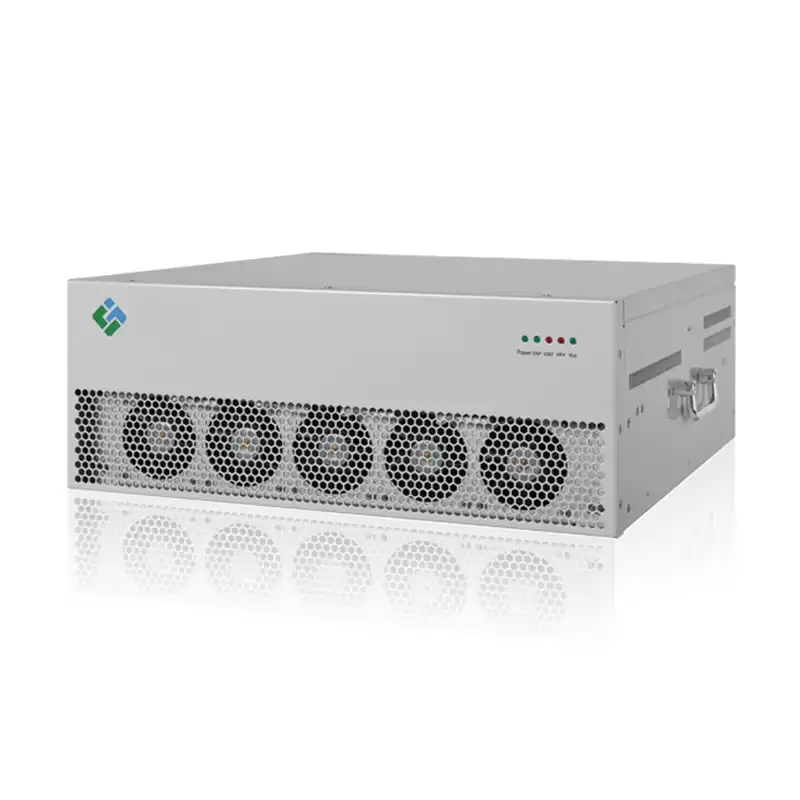

According to the mounting type, YTPQC-APF can  be divided into Rack Modular APF,Wall-mounted APF and free landing APF.

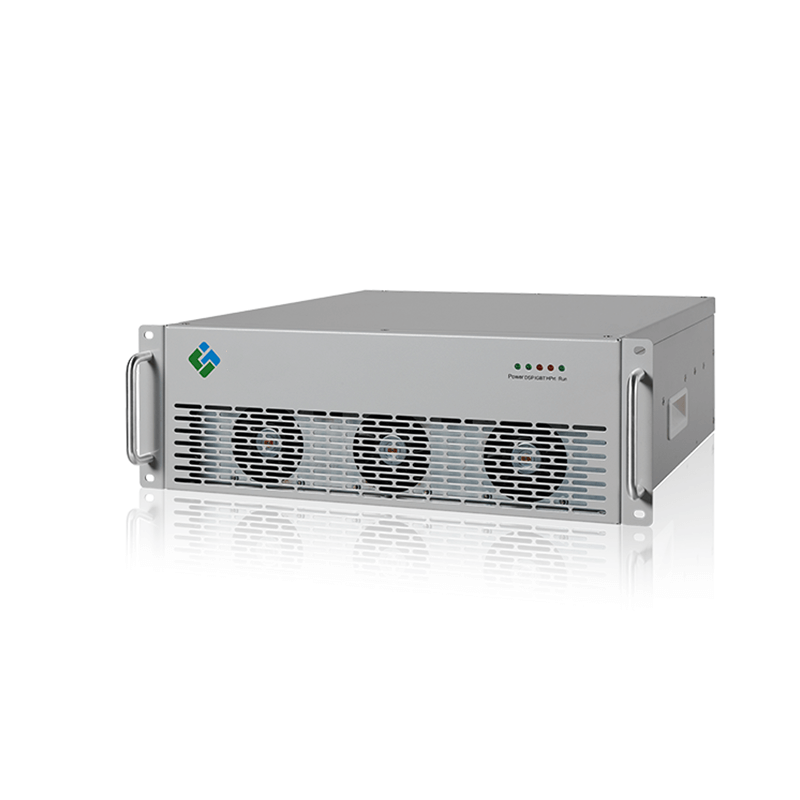

YT Active power filter module

Model Description

YTPQC-APF Active Power Filter Module series cover from 15A to 150A, support wall mounted type, rack type, free landing modules.



SN Item Rated Capacity Factory Model Dimensions
(W*D*H,MM)
N.G
(KG)

Packing Size

(W*D*H,MM)

G.W.
(KG)
1 APF 15A YTPQC-APF/15-4-4L-RW 360*402*125 20 740*690*445 25
2 APF 25A YTPQC-APF/25-4-4L-RW 360*402*125 20 740*690*445 25
3 APF 50A YTPQC-APF/50-4-4L-RW 505*550*190 34 740*690*445 40
4 APF 75A YTPQC-APF/75-4-4L-RW 505*550*190 35 740*690*445 40
5 APF 100A YTPQC-APF/100-4-4L-RW 505*570*280 53 740*690*445 63
6 APF 125A YTPQC-APF/125-4-4L-RW 505*570*280 54 740*690*445 64
7 APF 150A YTPQC-APF/150-4-4L-RW 505*570*280 55 740*690*445 65
