The label can be made into paper or PVC surface.

Customized printing is available.

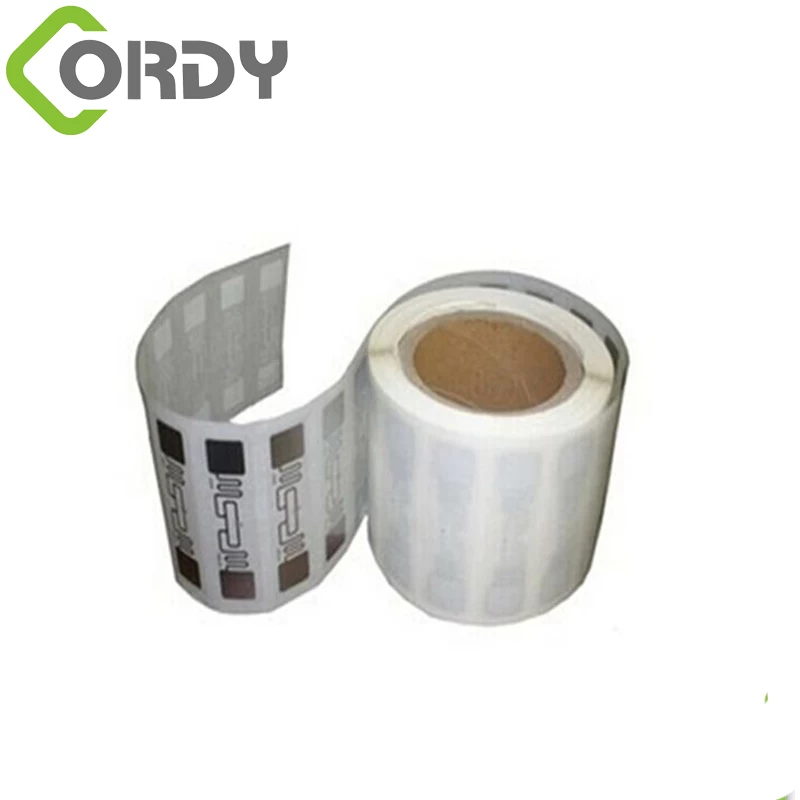

Dry inlay Antenna

Material: Aluminum or Copper

Substrate Material: PET

PET Thickness: 0.03 ± 0.005mm

Chip Thickness: 0.12mm

Strorage: +15℃ to +25℃, 20% RH to 45% RH

Operating: -20℃ to +50℃， 20% RH to 90% RH

Withstand voltage: ≤ 5N/㎡

Resistance to bending capacity: ≥ φ 20mm

Chip: HF 13.56MHz, UHF 860-960MHz

Wet inlay

Material: dry inlay + adhesive paper

Substrate Material: PET PET Thickness: 0.03 ± 0.005mm

Chip Thickness: 0.12mm

Strorage: +15℃ to +25℃, 20% RH to 45% RH

Operating: -20℃ to +50℃， 20% RH to 90% RH

Withstand voltage: ≤ 5N/㎡

Resistance to bending capacity: ≥ φ 20mm

Chip: HF 13.56MHz, UHF 860-960MHz
