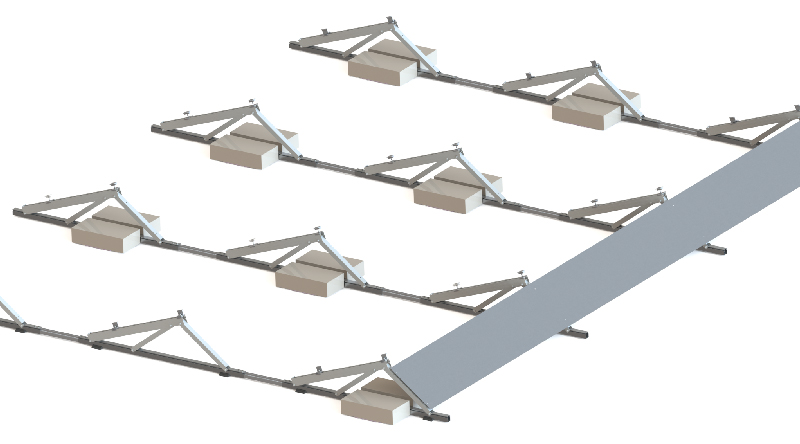

Aluminum Ballast mount structure can adjust easily as per the needs.
|
Installation
Site
|

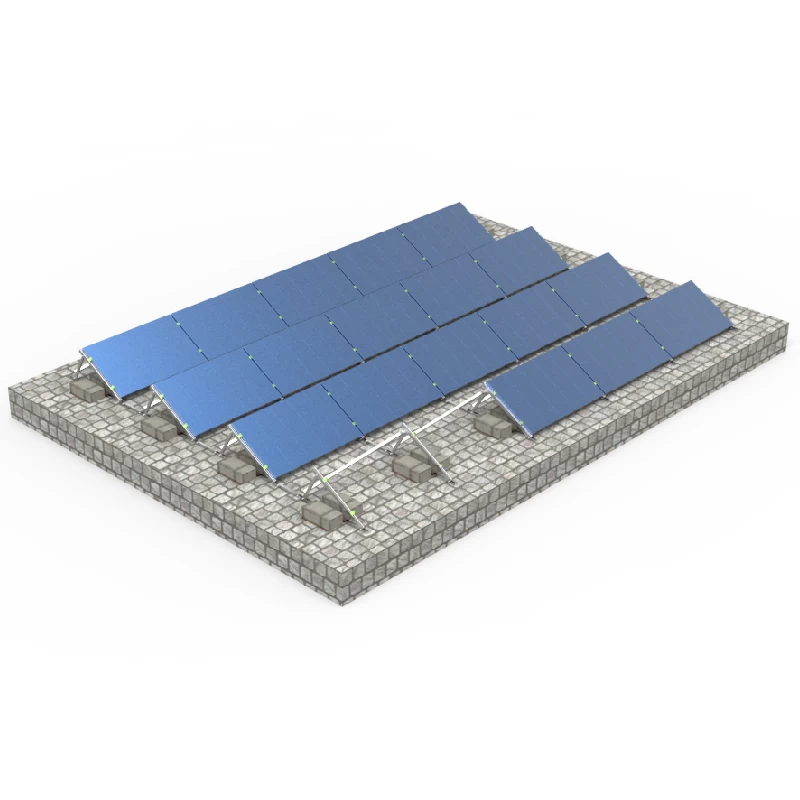

Flat roof
|
|

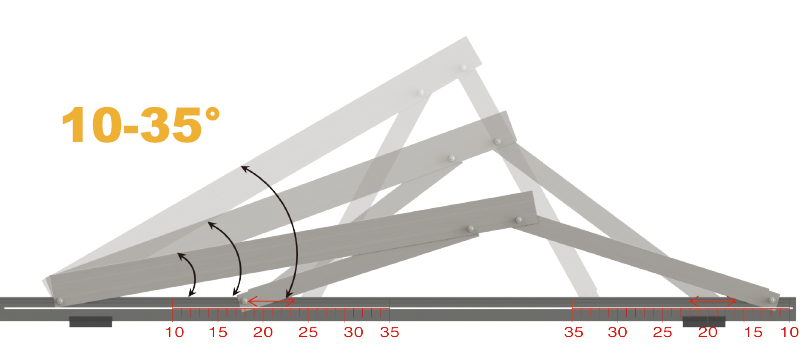

Adjustable
Angle
|
10-35 deg
|
|
Max wind speed
load
|
50m/s
|
|
Snow load
|
90cm
|
|
Materail
|
Al
6005-T5&Stainless Steel 304
|
Wind and snow load conditions for the adjustable ballast mount
|
Angle / Panel
size
|
1650-992-40mm
|
2000-1000-40mm
|
1650-992-40mm
|
2000-1000-40mm
|
|
10 deg
|
50m/s
|
45m/s
|
90cm
|
75cm
|
|
15 deg
|
50m/s
|
45m/s
|
90cm
|
75cm
|
|
20 deg
|
55m/s
|
50m/s
|
90cm
|
75cm
|
|
25 deg
|
55m/s
|
50m/s
|
90cm
|
75cm
|
|
30 deg
|
50m/s
|
50m/s
|
90cm
|
75cm
|
|
35 deg
|
50m/s
|
45m/s
|
90cm
|
75cm
|

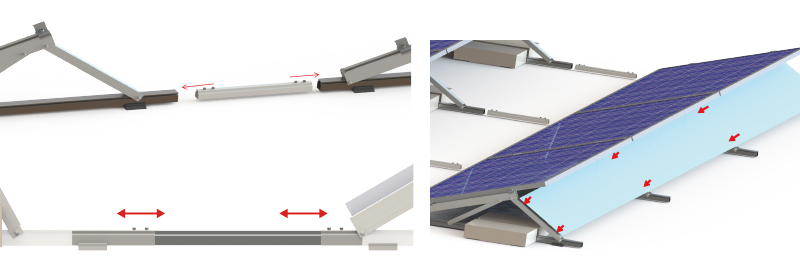

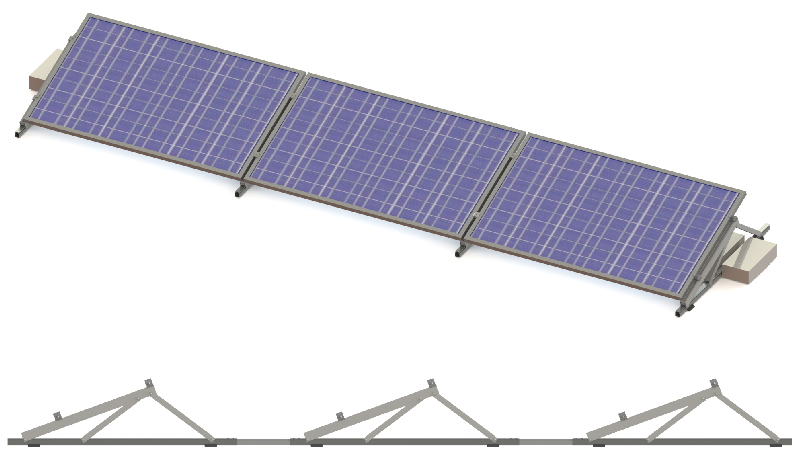

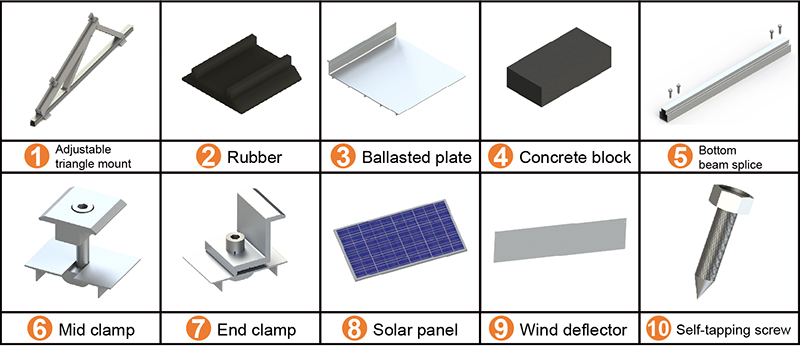

1. Available both for independent type and connection type.
2. No penetrating to the roof.
3. Easy for stock as stand products.
4. Wind deflector can be added.

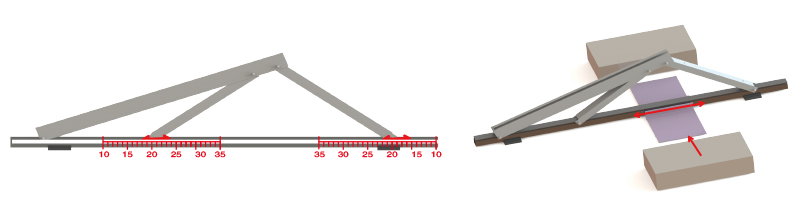

5. Scale marked, easy for the angle adjustable.
