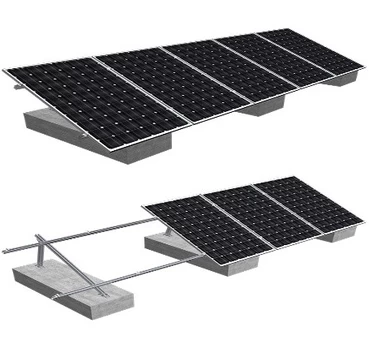

Adjustable Angle Rooftop Solar Mounting System III

The photovoltaic mounting system is suitable for solar energy installation systems of various flat roof projects. Through perfect connection with cement foundation and cement strips, the photovoltaic system can meet the needs of different projects. Professional structural design can ensure system strength, save cost. It’s safe and reliable.




   Components List


Rooftop Solar Mounting System          Clamp


          C-shaped Steel Column


          C-shaped Steel Rail


          C-Rail Connector


          Triangle Connector




   Technical Parameters


Product Name

Rooftop Solar Mounting System III

Installation Sites

Flat Roofs\Inclined roofs of Concrete Buildings

Support Material

Q235B C Carbon Steel(Surface Treatment:Hot Dip Galvanization)

Fastener Material

Zn-Ni Alloy & Carbon Steel & Stainless Steel SUS304

Sparepart Material

AL6005-T5(Surface Treatment: Anodic Oxidation)

Applicable Component Types

Framed\Unframed

Foundation

Concrete Foundation

Standards

DIN1055, International Building Code IBC 2009

Tilt Angle

0-60°

Wind Load

≤ 60m/s

Snow Load

≤ 1.6KN/m2

Panel Orientation

Landscape\Portrait

Major Components

Clamp,C-shaped Steel Column,C-shaped Steel Rail,C-Rail Connector,Triangle Connector

Warranty

10 Years’ Warranty
