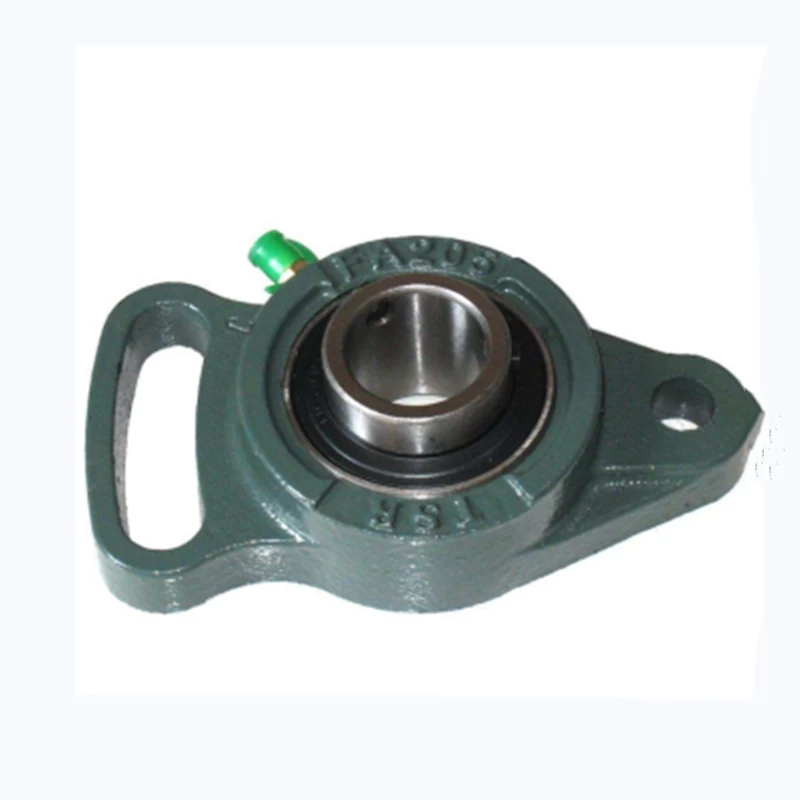

Adjustable Flange Bearing Units

Adjustable Flange Bearing Units is one design of mounted ball bearing unit, UCFA2 is the suffix of this type bearing unit, the bearing unit have UC chrome steel pillow block bearings and FA housing with cast iron materials.




Adjustable Flange Bearing Units is one design of mounted ball bearing unit, UCFA2 is the suffix of this type bearing unit, the bearing unit have UC chrome steel pillow block bearings and FA housing with cast iron materials.

The bearing UC Series insert bearing have the same internal structure with deep groove ball bearing, but the insert bearing have the spherical outer surface of the outer ring and the wider inner ring.

Unit No.

Shaft Dia

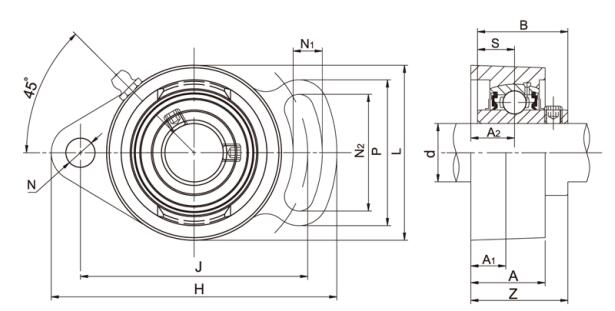

Dimensions (mm)

Bolt Size (mm)

Weight

d

H

J

A2

A1

A

N

N1

N2

L

P

B

S

Z

(kg)

(in)

(mm)

UCFA201



12

98

78

15

12

25.5

10

10

40

60

50

31

12.7

33.3

M8

0.53

UCFA201-8

1/2



98

78

15

12

25.5

10

10

40

60

50

31

12.7

33.3

M8

0.53

UCFA202

15

98

78

15

12

25.5

10

10

40

60

50

31

12.7

33.3

M8

0.49

UCFA202-9

9/16

98

78

15

12

25.5

10

10

40

60

50

31

12.7

33.3

M8

0.49

UCFA202-10

5/8

98

78

15

12

25.5

10

10

40

60

50

31

12.7

33.3

M8

0.49

UCFA203



17

98

78

15

12

25.5

10

10

40

60

50

31

12.7

33.3

M8

0.48

UCFA203-11

11/16

98

78

15

12

25.5

10

10

40

60

50

31

12.7

33.3

M8

0.48

UCFA204



20

98

78

15

12

25.5

10

10

40

60

50

31

12.7

33.3

M8

0.46

UCFA204-12

3/4

98

78

15

12

25.5

10

10

40

60

50

31

12.7

33.3

M8

0.46

UCFA205

25

125

98

16

14

27

12

13

51

70

65

34.1

14.3

35.8

M10

0.69

UCFA205-14

7/8

125

98

16

14

27

12

13

51

70

65

34.1

14.3

35.8

M10

0.69

UCFA205-15

15/16

125

98

16

14

27

12

13

51

70

65

34.1

14.3

35.8

M10

0.69

UCFA205-16

1

125

98

16

14

27

12

13

51

70

65

34.1

14.3

35.8

M10

0.69

UCFA206

30

142

117

18

14

31

12

13

58

83

72

38.1

15.9

40.2

M10

1.00

UCFA206-17

1-1/16

142

117

18

14

31

12

13

58

83

72

38.1

15.9

40.2

M10

1.00

UCFA206-18

1-1/8

142

117

18

14

31

12

13

58

83

72

38.1

15.9

40.2

M10

1.00

UCFA206-19

1-3/16

142

117

18

14

31

12

13

58

83

72

38.1

15.9

40.2

M10

1.00

UCFA206-20

1-1/4

142

117

18

14

31

12

13

58

83

72

38.1

15.9

40.2

M10

1.00

UCFA207

35

154

130

19

16

34

15

15

66

95

82

42.9

17.5

44.4

M12

1.50

UCFA207-20

1-1/4

154

130

19

16

34

15

15

66

95

82

42.9

17.5

44.4

M12

1.50

UCFA207-21

1-5/16

154

130

19

16

34

15

15

66

95

82

42.9

17.5

44.4

M12

1.50

UCFA207-22

1-3/8

154

130

19

16

34

15

15

66

95

82

42.9

17.5

44.4

M12

1.50

UCFA207-23

1-7/16

154

130

19

16

34

15

15

66

95

82

42.9

17.5

44.4

M12

1.50

UCFA208

40

172

144

21

16

38

15

15

71

105

87

49.2

19.0

51.2

M12

1.80

UCFA208-24

1-1/2

172

144

21

16

38

15

15

71

105

87

49.2

19.0

51.2

M12

1.80

UCFA208-25

1-9/16

172

144

21

16

38

15

15

71

105

87

49.2

19.0

51.2

M12

1.80

UCFA209

45

180

148

22

18

40

15

15

72

110

90

49.2

19.0

52.2

M14

2.10

UCFA209-26

1-5/8

180

148

22

18

40

15

15

72

110

90

49.2

19.0

52.2

M14

2.10

UCFA209-27

1-11/16

180

148

22

18

40

15

15

72

110

90

49.2

19.0

52.2

M14

2.10

UCFA209-28

1-3/4

180

148

22

18

40

15

15

72

110

90

49.2

19.0

52.2

M14

2.10

UCFA210

50

190

157

22

18

40

15

15

76

115

94

51.6

19.0

54.6

M14

2.30

UCFA210-30

1-7/8

190

157

22

18

40

15

15

76

115

94

51.6

19.0

54.6

M14

2.30

UCFA210-31

1-15/16

190

157

22

18

40

15

15

76

115

94

51.6

19.0

54.6

M14

2.30

UCFA210-32

2

190

157

22

18

40

15

15

76

115

94

51.6

19.0

54.6

M14

2.30

UCFA211

55

216

184

25

20

43

16

17

86

132

104

55.6

22.2

58.4

M14

3.60

UCFA211-32

2

216

184

25

20

43

16

17

86

132

104

55.6

22.2

58.4

M14

3.60

UCFA211-34

2-1/8

216

184

25

20

43

16

17

86

132

104

55.6

22.2

58.4

M14

3.60

UCFA211-35

2-3/16

216

184

25

20

43

16

17

86

132

104

55.6

22.2

58.4

M14

3.60
