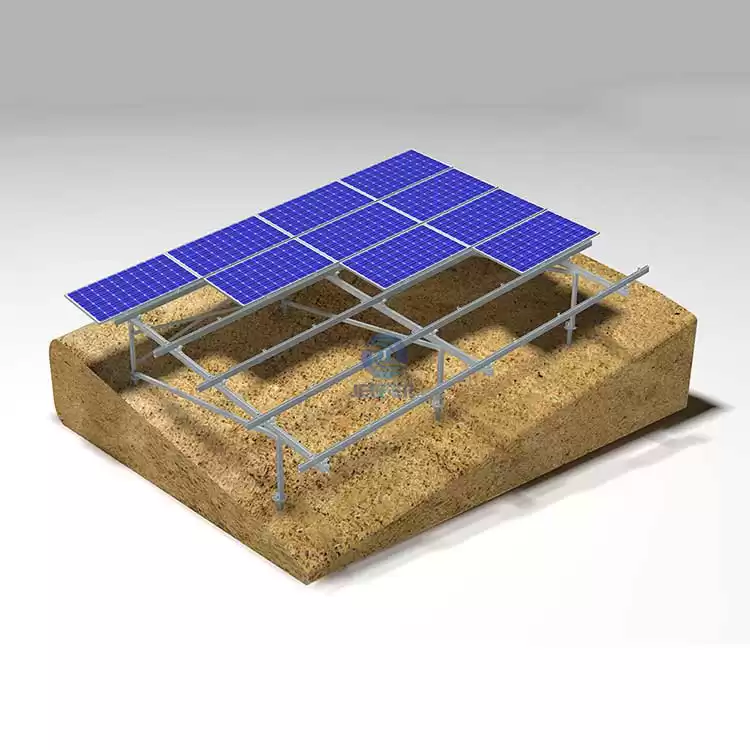

Adjustable Hillside Ground Terrace Solar Bifacial Photovoltaic Mounting Bracket

Adjustable Hillside Ground Terrace Photovoltaic solar ground structure is suitable for slope concrete roof or slope solar photovoltaic project, with strong wind and snow resistance. Through the special anchor plate design, the system can realize the fine adjustment on site to adapt to different sites.



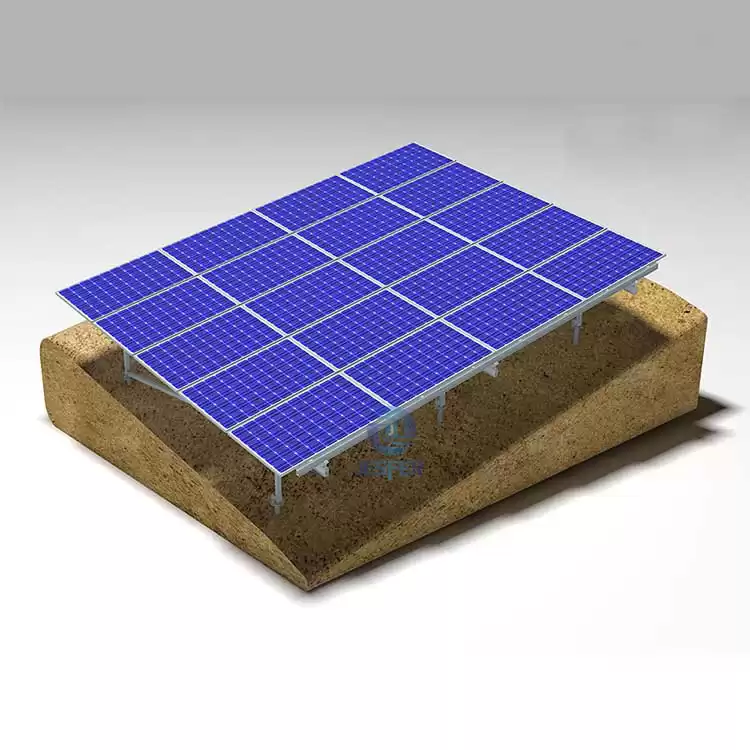

Adjustable Hillside Ground Terrace Solar Bifacial Photovoltaic Mounting Bracket

The Adjustable Hillside Ground Terrac solar ground mount can be adjusted from East-West and North-South directions, with special connector design. Patented and certified system design ensures safe and fast installation of the project.


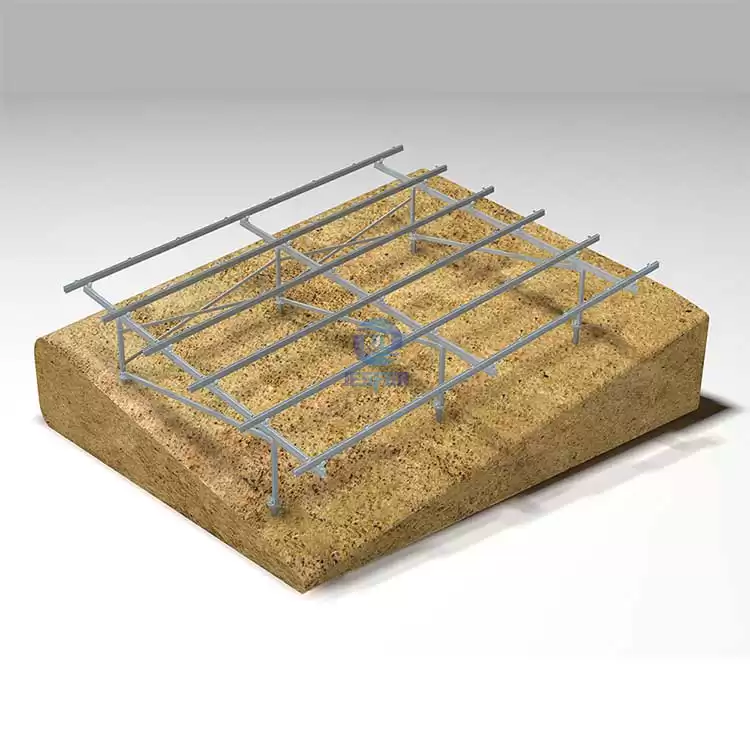

System Structure


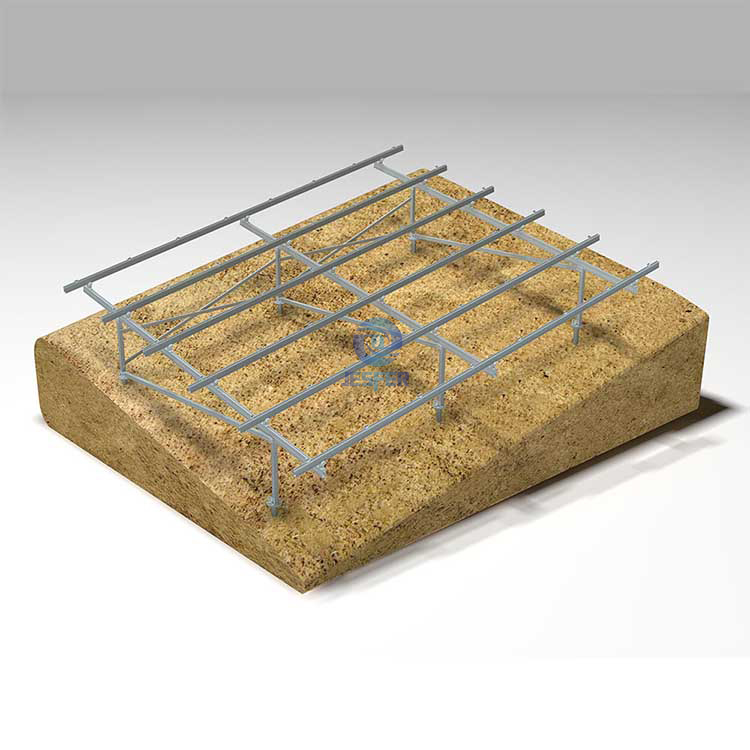

ground mount solar racking



Technical Parameters

 System Name
 bifacial solar structure system
Panel Layout
 Landscape or Portrait
 Foundation
 Ground Screw,Concrete Based
 Material
 Anodized AL6005-T5
 Tilt Angle
 0-60degrees
 Fastener
 SUS304 &Zinc-Nickel Alloy Electroplated Steel
 Snow Load
 1.6KN/㎡
 Color
 Customized or Silver
 Wind Load  60m/s  Design Standard
 AN/NZS1170,DIN1055,JIS C8955,etc.
 Applicable Solar Module
 Framed or Frameless
 Warranty
 10 Years
 Ground Clearance 200-2000mm  Small Components  Anodized AL-6005-T5


Components Details

solar accessoriesSplice for Cross Beam kit

Specification:L260mm

Components:Splice for Cross Beam,Hexa Self-Tapping Screw

with EPDM Washer ST6.3*19


solar energy accessoriesCross Beam

Specification:L*71*85

Standard Length:3100mm,4100mm,5100mm

Pre-Assemble Support  Pre-Assemble Support

Components:Cross Beam ,C Clamp Kit ,

T Back Jointer,Flat Washer M8,

Spring Washer M8

Hexagon Bolt M8*25


solar structure manufacturerT Adjustable Anchor Plate Kit


Material:AL6005-T5(Anodized )

Can adjustable up and down & left and right


solar mount manufacturer Wide End ClampKit

Components:Wide End Clamp, Cross Module,

Spring Washer M8,Hexagon Socket Bolt

solar hardware mount Inter Clamp Kit

Components:Inter Clamp,Cross Module

Spring Washer M8,Hexagon Socket Bolt

solar structure factoryC Clamp Kit

Components:C Clamp, Cross Module,Spring Washer M8

Hexagon Socket Bolt

solar manufacturer

Corrugated T Anchor Plate Kit

Components:Corrugated Gasket,Corrugated T Plate

Hexagon Bolt Kit

Material:AL6005-T5(Anodized )

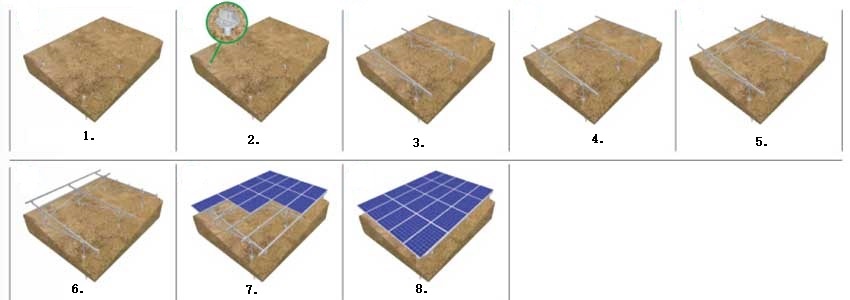

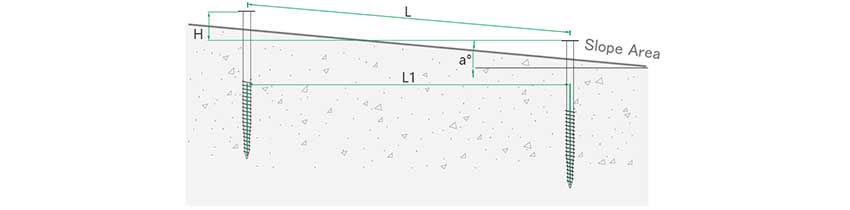

Installation Guide

Adjustable ground mount solar system

1.Install ground screw based on project solution.

2.Install Pro-T Corrugated Anchor Plate.

3.Install rail.

4.Install Back Side Support.

5.Install T Adjustable Anchor Plate Kit.

6.Install Beam.

7.Fix the solar module with Inter Clamp Kit & End Clamp Kit.

8.Installation is done.


Free Design Service

We provide free customized design service for solar ground mount.

Regarding better service, please provide below detail before design.

1. The dimension of the solar panel: _________(L*W*T)

2.What is the installation angle?: _______degree.

3.How is weather there, such as wind speed and snow load?___m/s anit-wind speed and____KN/m2 snow load

4.The pv array?_____

5.Which foundation you need for your coming ground mounting system? ______( ground screw/concrete/pile/pole )

6.The height of panel lowest end off ground?______

7. How many panels do you plan to install for the project?______pcs.
