| Product name |
Aluminum alloy bracket for flat roof mounting system |
| Model Number |
EG-RM01 |
| Installation Site |
Metal Roof, Flat roof |
| Surface Treatment |
Aluminum Andized |
| Wind Load |
60m/s |
| Snow load |
1.2KN/M² |
| Warranty |
25 YEARS |
| OEM Service |
Avaliable |
Product Description

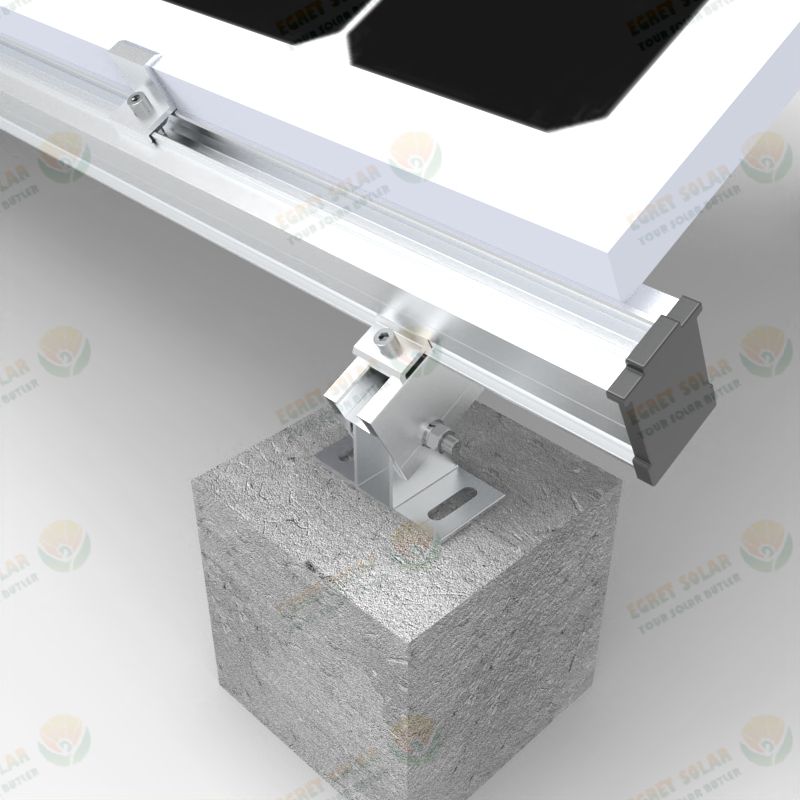

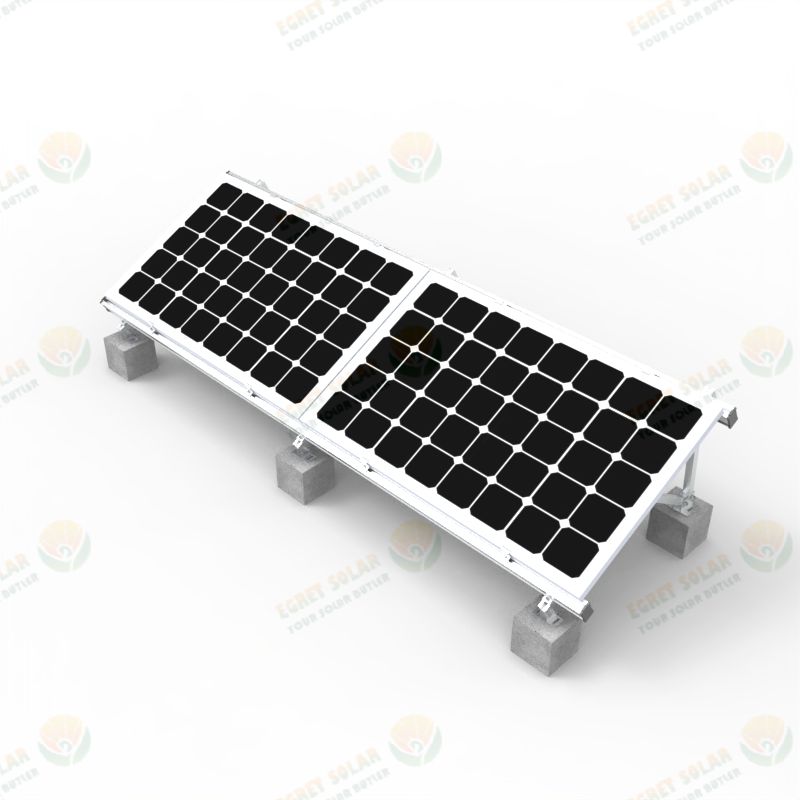

The flat roof aluminum alloy bracket scheme is suitable for the installation of flat roof concrete foundation or expansion bolts of solar photovoltaic power stations, with simple structure, convenient installation and transportation, and cost saving.

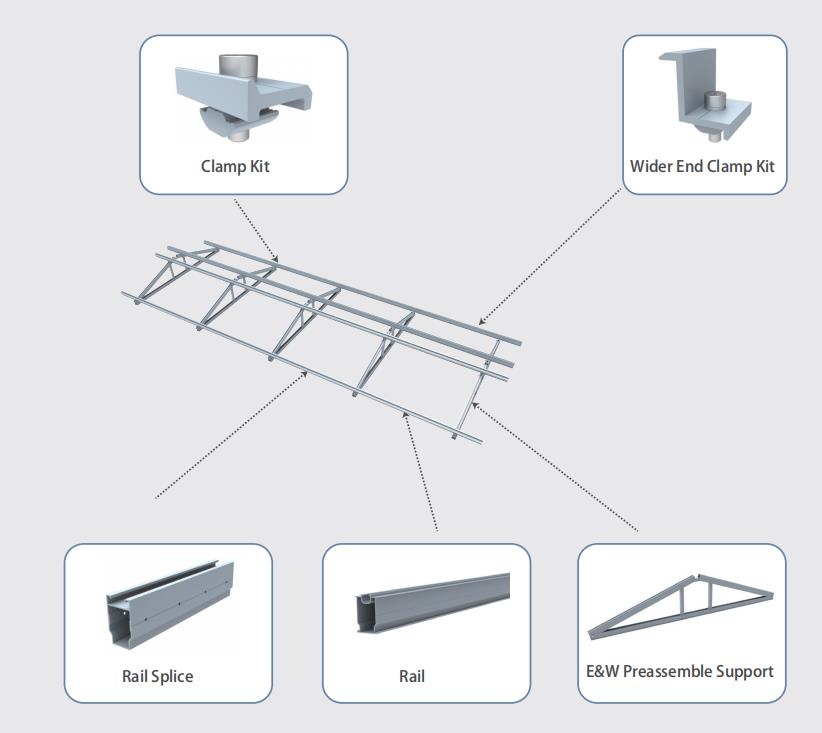

Exploded View

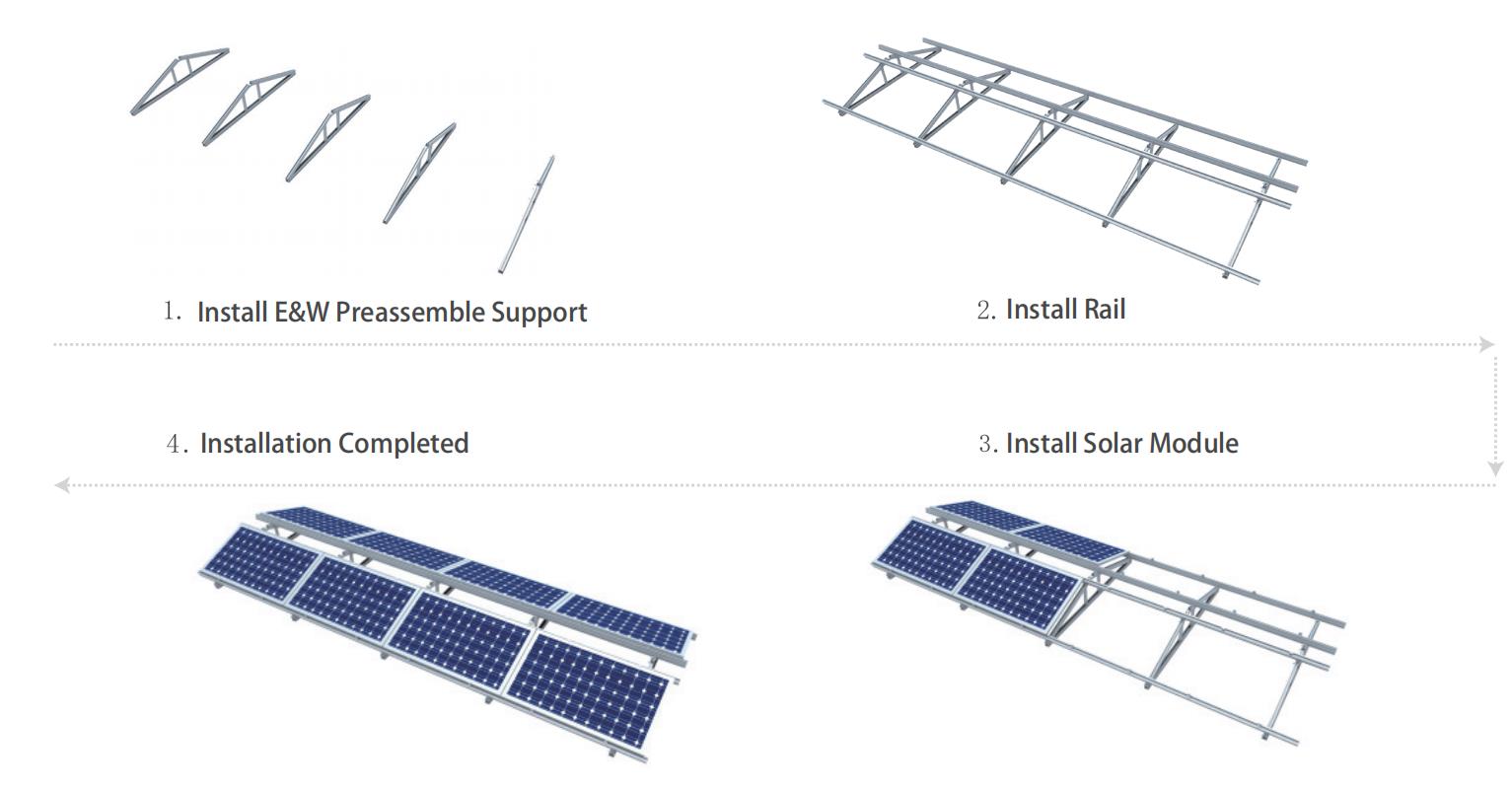

Installation Steps
FAQ
1.The information of the solar panel:L:______mm,W:______mm,T:_____mm;Power:______w,Frame or Frameless?Panel array:row______column______
2.Wind Load:______m/s 3.Snow Load:______cm 4.Installation Angle:______degree,Portrait or Landscape? 5.Where is Solar panel installed? Salinity control or not?
1)Ground
Structure Type:Common Ground,Carport or Solar Farm?
Foundation:Concrete,Ground Screw,C Pile or U Pile?
Minimum Ground Clearance:______mm
Earth report or not
2)Roof
Roof Type:Tin Roof,Tile Roof or Concrete?
Fixed Solution:Hook,L foot,Clamp,Ballast or Tripod?
Purlin Span:______mm
