Adjutable support arms flip-up

Bathroom grab handrails for elderly.

Bathroom grab arms hang on the wall track and locked by a spring pin.

The grab rails can be adjusted for the best position on the wall track easily without using a tools. They can be taken away from the wall track when not needed.

Made in solid grade aluminum alloy.

Weight loading capacity 150kgs.

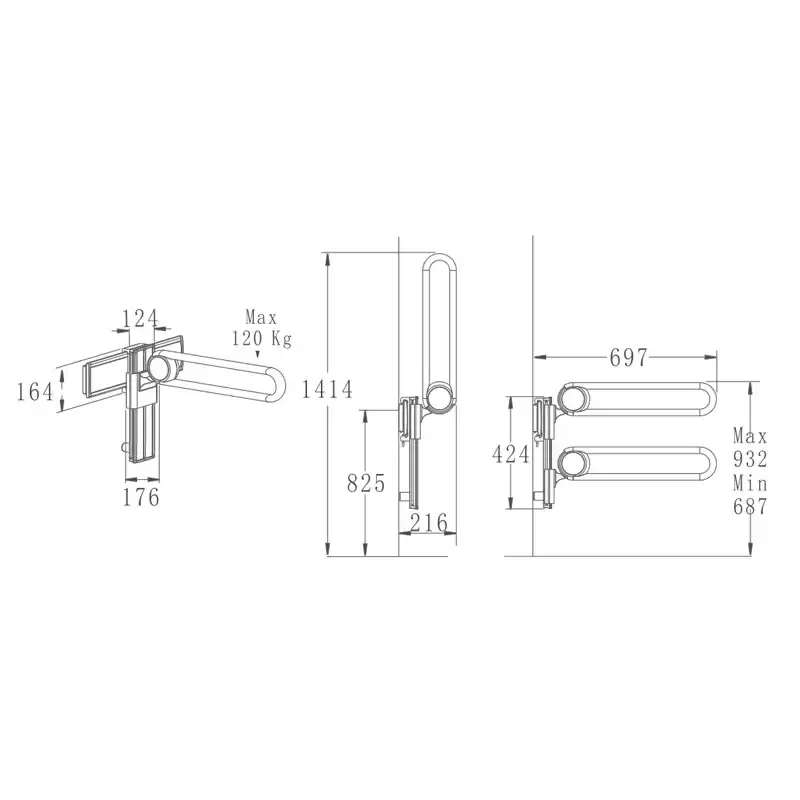

  • Size697mm

U shape support detachable



Use:


The U shaped grab handrail is used in family bathroom, toilet, hospital, nursing home, departure lounge and gymnasium. The safety armrest is specially designed for pregnant women, the elderly and the disabled individuals to guard their safety.

For indoor use in a wet environment, such as a bathroom or a washroom, in private homes, nursing homes and hospitals.



U shape bathroom support arms


Features:



  • All bathroom support arms come with an integrated counter-balance, wich ensures a controlled movement between horizontal and vertical positions.


  • High Quality Medical Assit Grab Bars -  AICUBE grab bars are made of aluminum alloy. The U shaped bathroom handrails of 697mm and the inner wall thickness is more than 4 mm. The support rails have passed the static test and life cycle test according to ISO 17966:2016.


  • Saving Space - Hinged U shape grab bars hang on the wall track fixed with a hand operated lock.  Flip-up to the wall  or push all products to one side when not  in use or take the handrails away just leave the flat track on the wall when not needed, which release more space. Helps saving space efficiently, great for hotels or  nursing homes where people have different requirement for the assistant grabs.


  • Track  System- The horizontall wall track system could be fixed on the most suitable position of the wall to avoid the weak points  or embeded plumbings. The track could receive all Aicube brand wall hanging products.


  • Install Easily -  Wall mounted by screws from the track to the wall. And just hang the backrack of support arms on the track and fix it with the well disinged lock mechanism or take it away by loosing the lock  easily without tools.


     Please Note: The foldable design is for raising the bar to a vertical position when not needed, but there is probably a little horizontal wiggle when pulled down, please don't worry that. It's a normal and secure when using it.



Materials:


1. The bathroom safety grab rails and wall track system are constructed with super solid anodized aluminum.

2. The end of the gripping bar is made of PA6 and 30% reinforced glass fiber.

It provides a clear sense of where the support arm ends.

3. The hing barrel is capped with TPE plastic.

4. The fixing kits and fasteners are made of stainless steel.

5. The front cover of the wall track is PVC.


Packaging:


The wall track is not included. It is needed to be ordered separately .

The support rail is packed in one carton , and the wall track is in another.

 Carton sizes and weight differ from models of support rails and length of wall tracks.



Cleaning:



1. The Aicube Care product is to be cleaned with hot water or a mild soapy cleaning agent.

2. We recommend that chalky deposits be removed from aluminum parts using a solution of 3:7 acetic acid: tap water. When the aluminum parts have been washed down with this solution, the parts must be wiped over with a damp cloth, wrung out in clear water. The product must be wiped down with a soft rag wrung out in clear water immediately after cleaning, as some materials may otherwise be discolored and stained, and the surface coating may deteriorate.


Warm Note: Do not use chlorine based, corrosive or abrasive cleaners as it may result in the surface being damaged.
