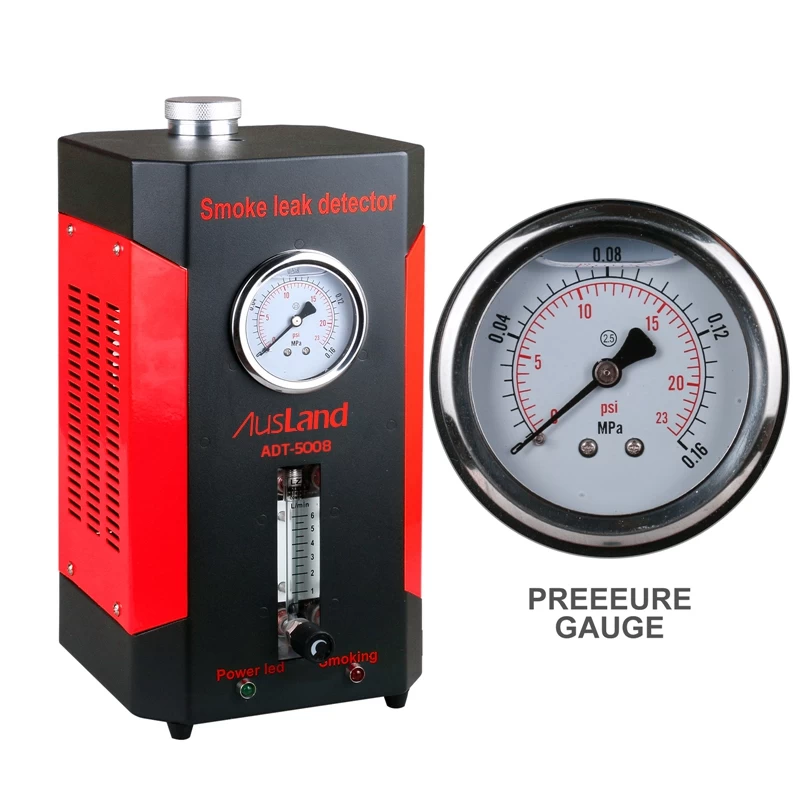

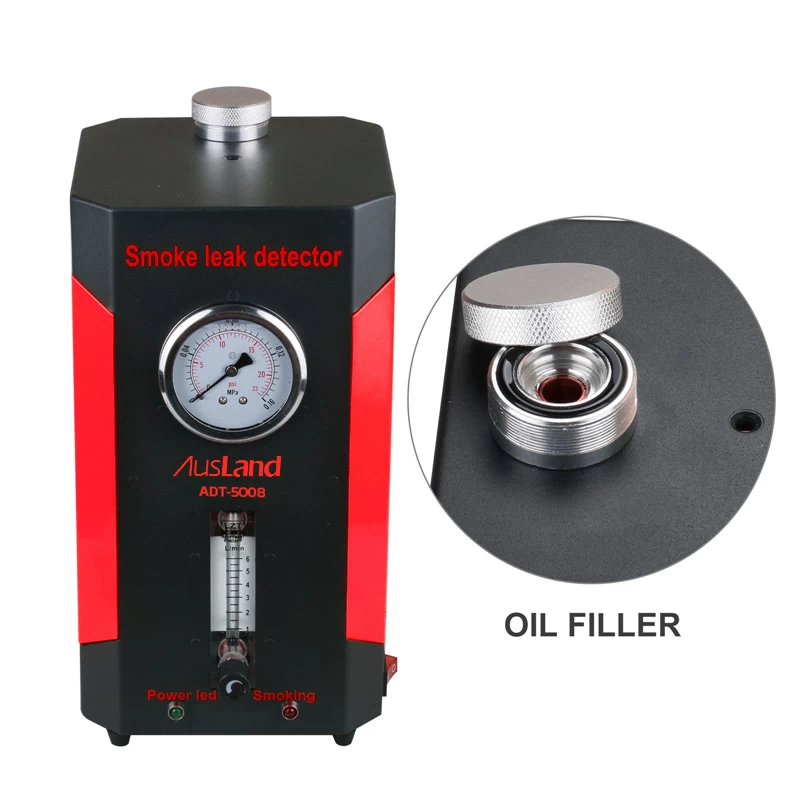

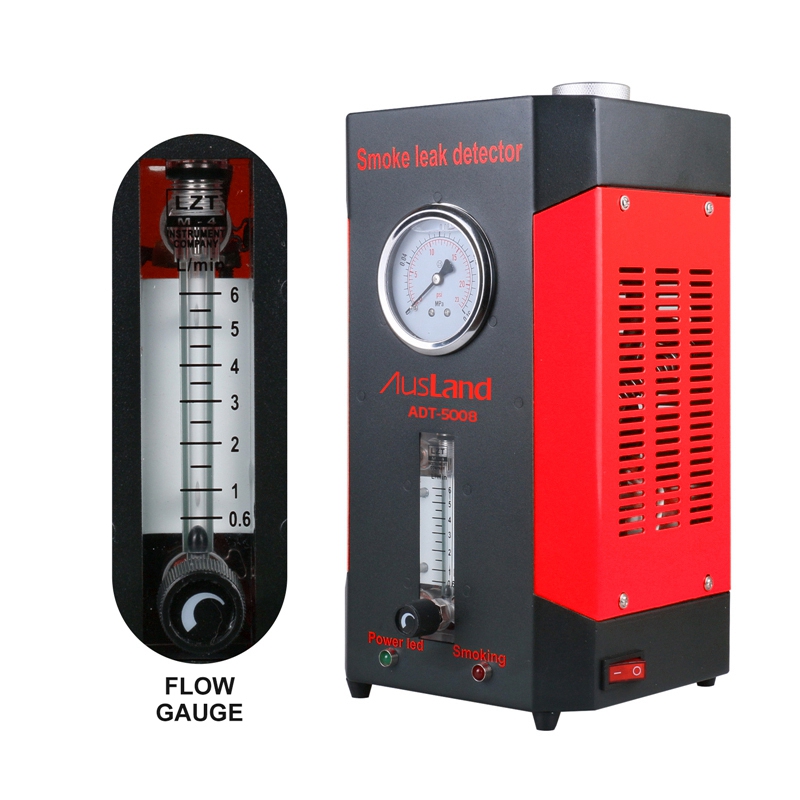

ADT-5008 Car Smoke Detector Leak Diagnostic tool of Pipe Systems including EVAP

ADT-5008 is for all pipe systems and EVAP.

EVAP is a fuel evaporation control system used to collect and deal with fuel vapor, to prevent fuel vapor leakage. If the leak will pollute the atmosphere and even cause the vehicle to spontaneous combustion. Plus this set of accessories can detect the smoke of the EVAP system, check whether there is leakage, broken, enhanced traffic safety

Note : pls contact me ask for the item's video if u need.

ADT-5008 Cautions:

1.When you use this detector the first time, please fill 20-30ml oil, not beyond this range.

2.New oil can be filled with only when the smoke is light,and it can't be filled over 15ml every time.

3.Before filling new oil, please pour out the remaining oil in the detector.

4.Please replace the detector oil regularly.

ADT-5008 Product Information:

Power: DC12V, vehicle battery

Smoke output value: 6l/min

Built-in air supply

Controllable flow value

ADT-5008 Package included:

1. Main Unit

2. Hook (with hand-tighten nuts)

3. Smoke output tube

4. Power cable

5. Rubber stopples (with serial specification)

6. Taper stopple

7. Taper pipe

8. 30ml oil bottle

9. User manual

ADT-5008 Maintenance

With longtime high temperature, the smoke and oil will oxidize and deteriorate. It will infect the service life of smoke generated part, so please change smoke and oil regularly.

1.Before filling new oil, please pour out the remaining oil in the detector.

2.When the smoke output has water drops, please replace with new oil.

3.Liquid paraffin and baby oil are OK.

4.Please fill new oil with equipped oil bottle
