Product Description

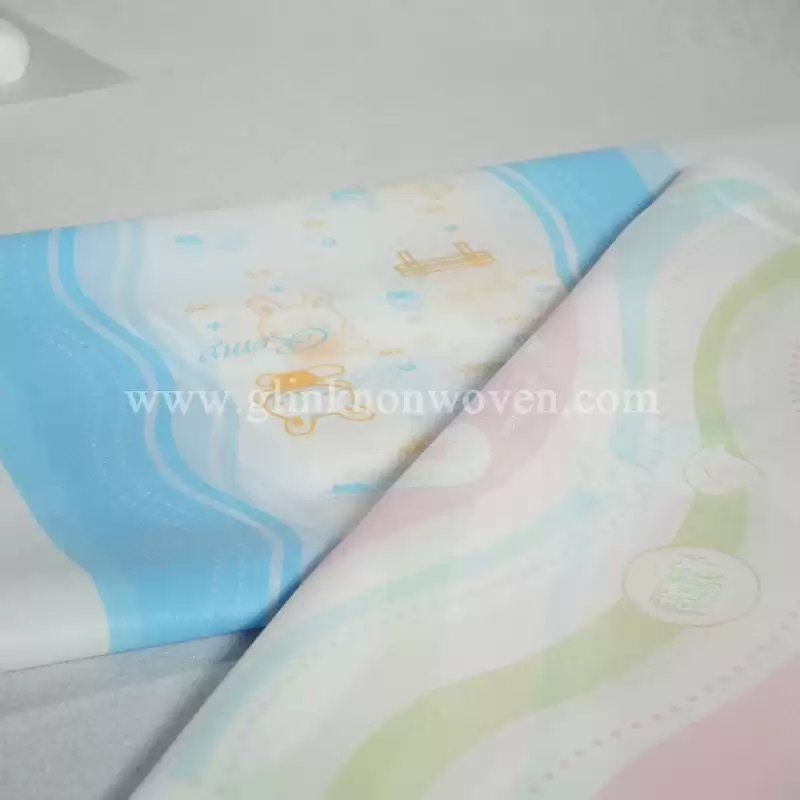

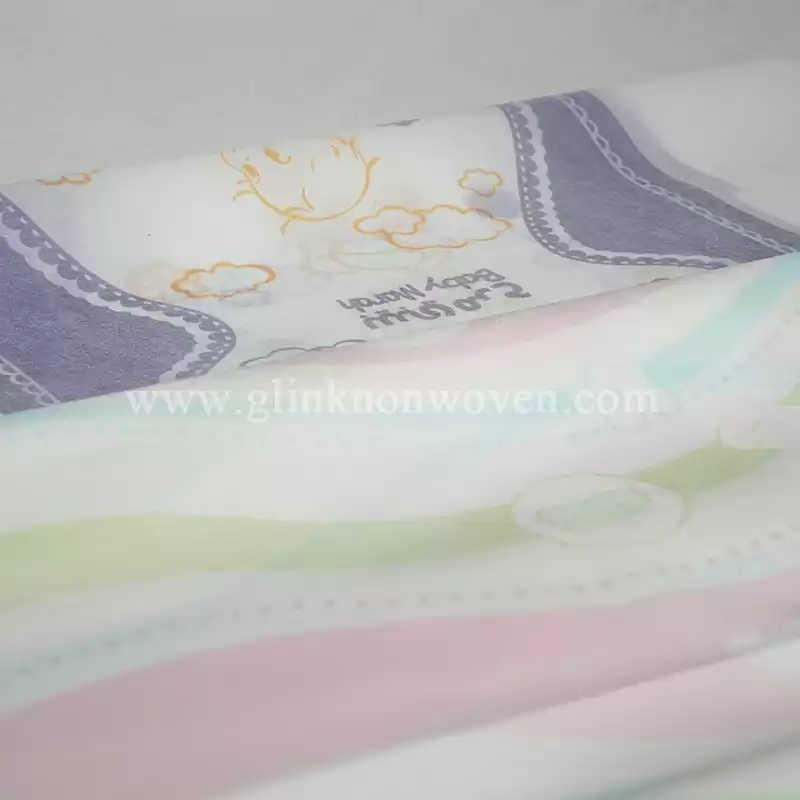

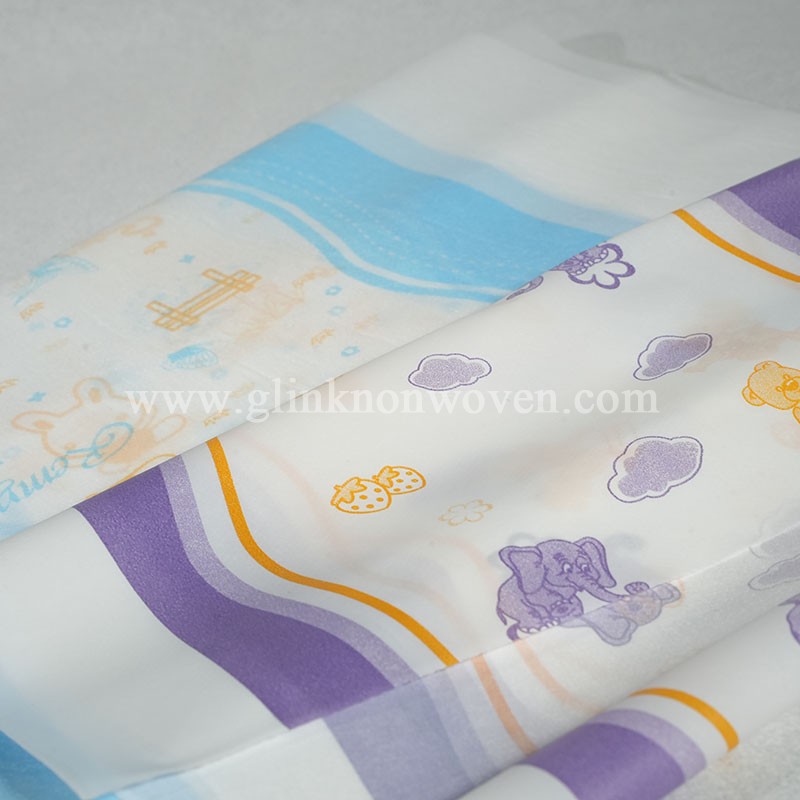

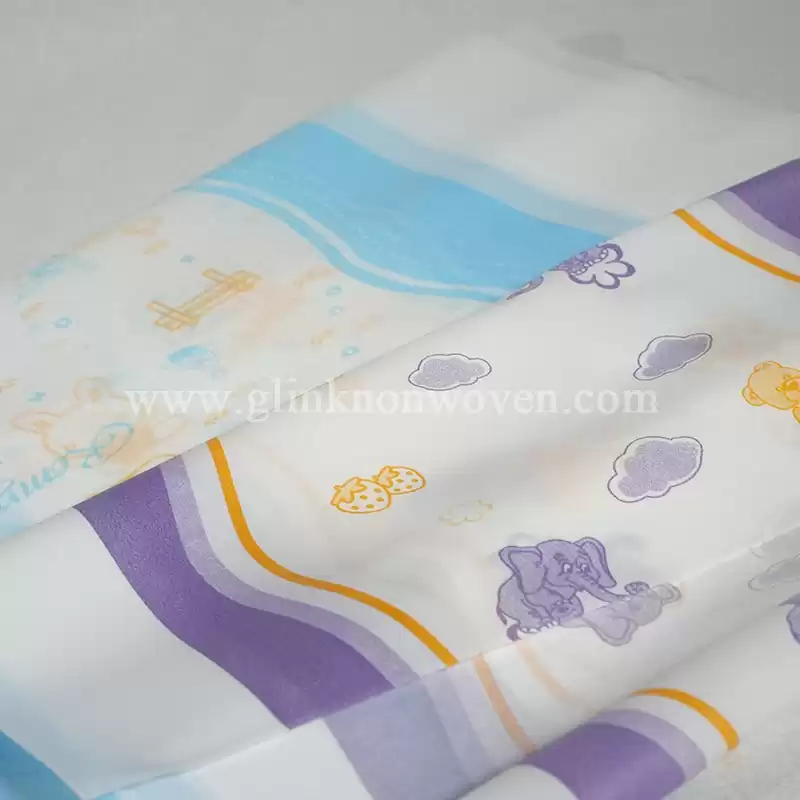

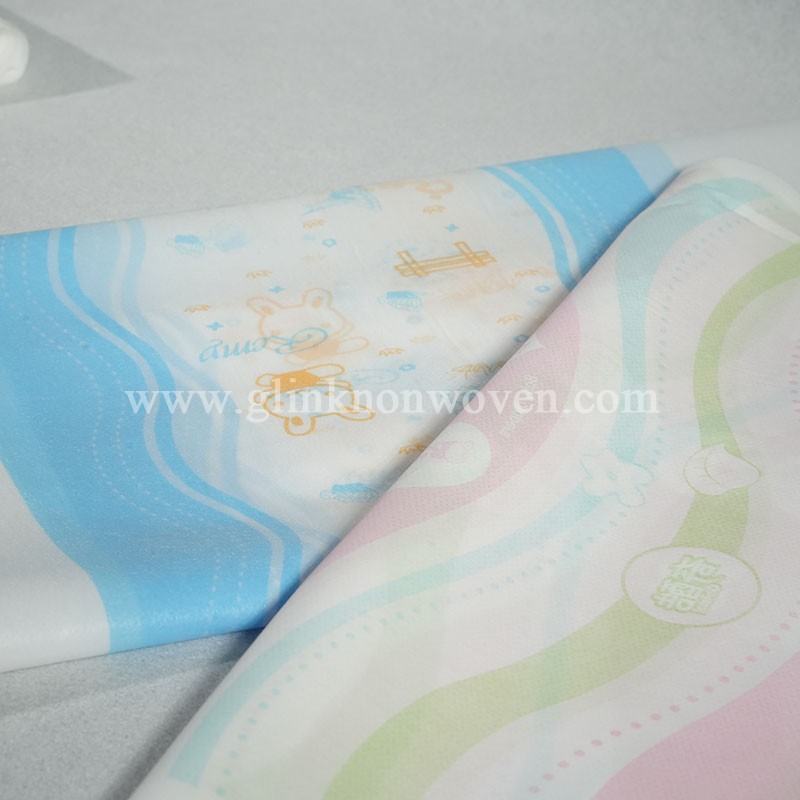

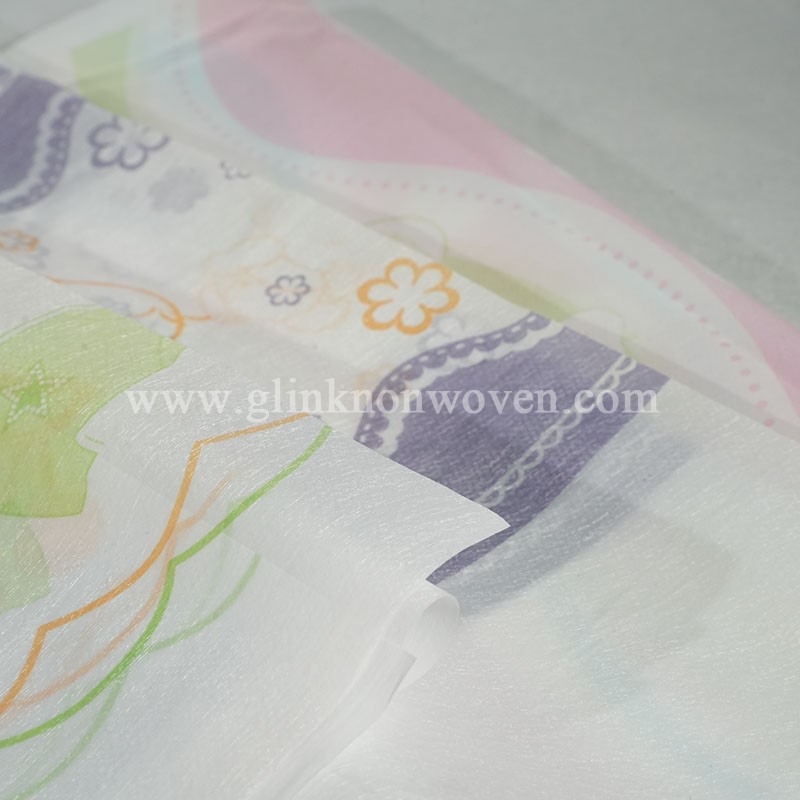

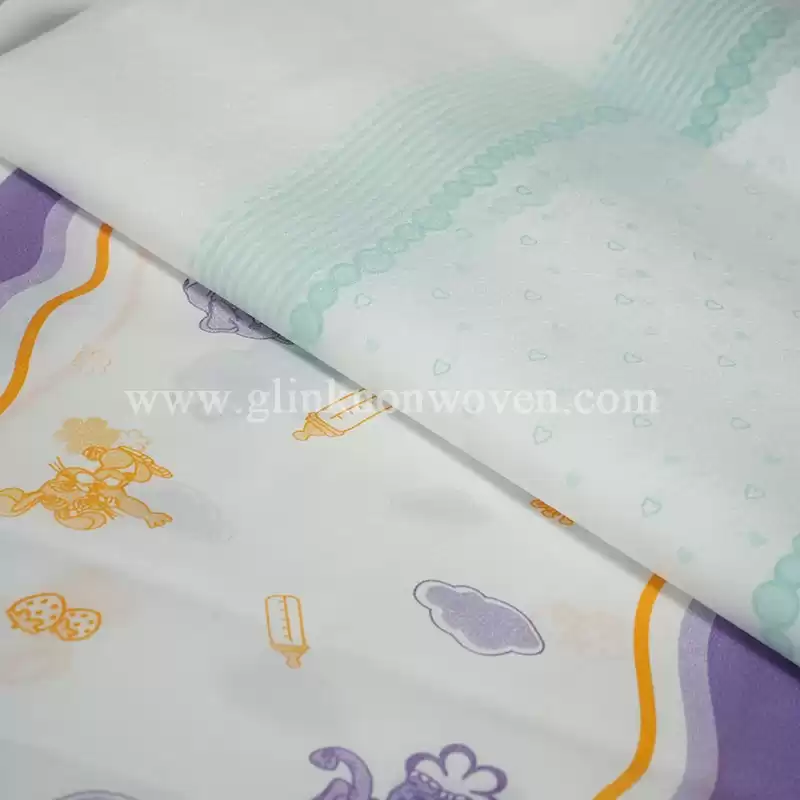

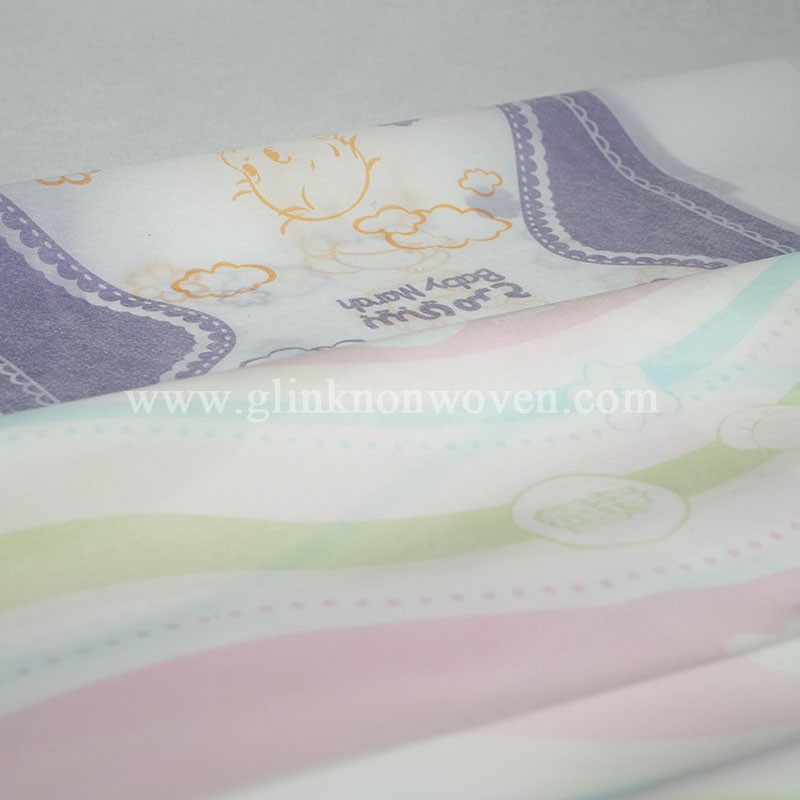

The full nonwoven laminated PE film is a crucial element in modern diaper, is meticulously crafted from polyethylene, polypropylene, and polyester via special processes to ensure a balance of strength and breathability. The diaper clothlike film backsheet prevents urine leakage, adds elasticity, and allows air circulation to keep the baby dry, comfortable, and cool. Breathable bachsheet film is usually made of PE film or PE film+non-woven fabric, which has good breathability, can emit stuffiness, keep the skin dry, and reduce the occurrence of red buttocks. The operating principle of the breathable bottom film is to form micropores in the film, which allow water vapor to pass through while liquids cannot, thus achieving the function of breathability and impermeability.
Product Attributes
| Items |
Unit |
Requirement |
Result |
Judging |
|
| Basic weight |
gsm |
24±2 |
24.2 |
OK |
| Width |
mm |
320±2 |
320.5 |
OK |
| Tensile strength |
MD |
N |
≥14.0N |
21.37 |
OK |
| CD |
≥5.0 |
7.8 |
OK |
| Breaking elongation |
MD |
% |
≥30 |
64 |
OK |
| CD |
≥30 |
88 |
OK |
| Peel force |
MD |
N |
≥0.3N/25mm |
1.04 |
OK |
| CD |
≥0.3N/25mm |
1.11 |
OK |
| Anti hydrostatic pressure |
Pa |
≥6000 |
6224 |
OK |
| Corona |
dyne |
≥38 |
38 |
OK |
| Breathability |
g/24h/㎡ |
1500-3200 |
2247 |
OK |
| Material was suitable to use in hygiene product. |
|
Product Application

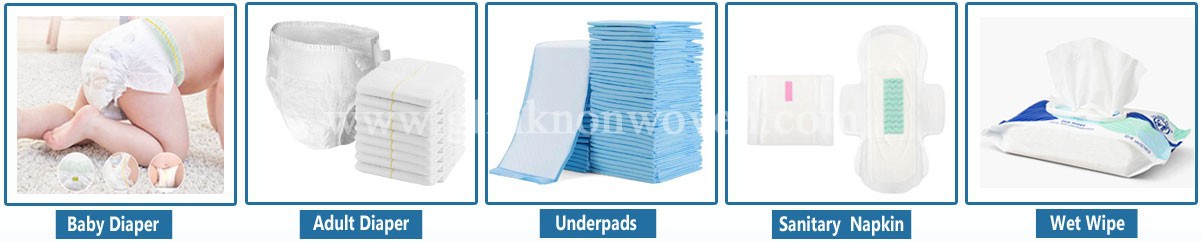

The diaper clothlike film backsheet is the key raw materials for diapers making, which can be used in the production of baby diapers, adult diapers, disposable nursing pads and sanitary napkins.

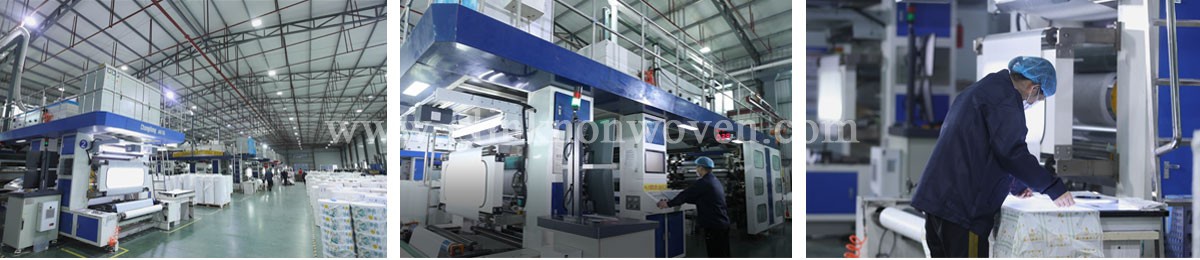

Factory Workshop
The diaper clothlike film backsheet has the characteristics of strong water absorption, good breathability, good flexibility, and strong leak resistance. These characteristics enable diapers to keep babies' buttocks dry and comfortable, effectively avoiding skin diseases such as diaper rash. At the same time, composite films also have strong durability and environmental friendliness, meeting the needs of modern consumers.

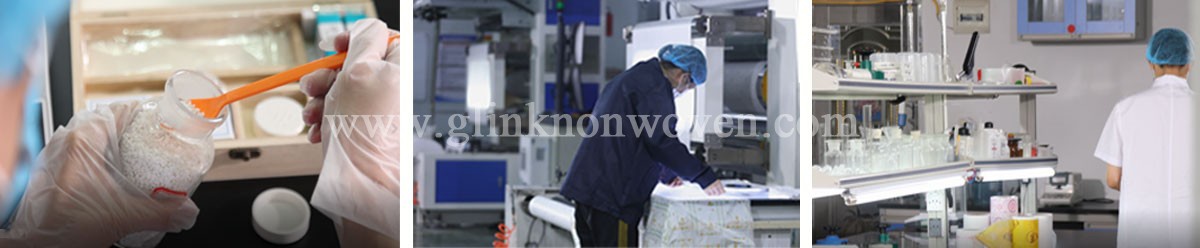

Lab & Testing
Our factory features a proficient R&D technical crew, boasting production capacity and technology that lead the industry. We conduct a double - check on raw materials to control quality at the origin. By doing so, we decrease the trial - and - error costs for our overseas clients and maintain consistent product quality.

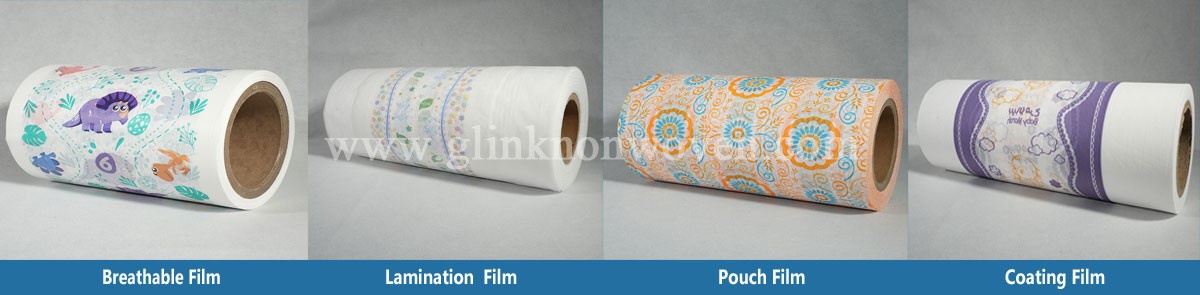

Related Products
Our products cover spunbond nonwoven, SMMS hydrophobic nonwoven, thermal nonwoven, hot air nonwoven, frontal tape, side tape, fluff pulp, sap, hot melt glue, spandex and other raw materials for baby diaper, sanitary napkin, adult diaper, underpads and pull up diapers. You can contact us for more details.

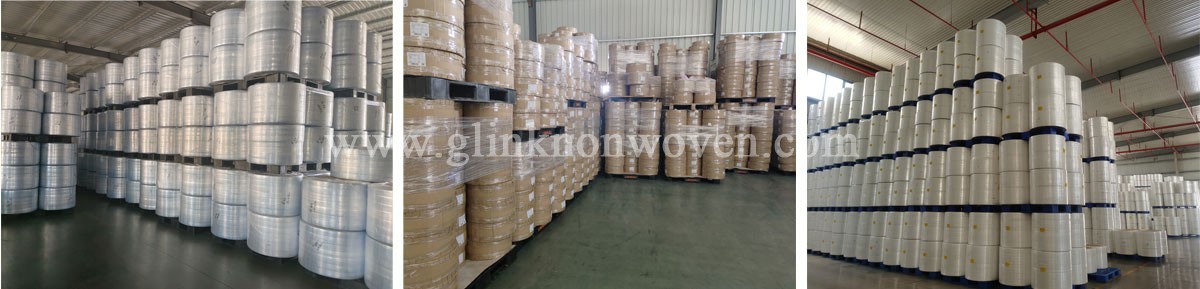

Warehouse
We have a modern warehouse of over 10,000 square meters, providing customers with “one station” services, which can mix load different kinds of raw materials, which can help our customers to reduce cost.

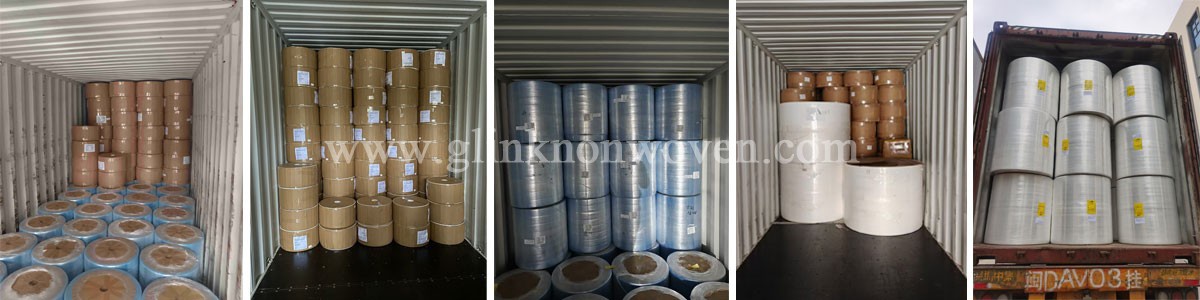

Packing & Shipment
Our integrity, strength and product quality are recognized by the industry, and our products are also exported to Southeast Asia, Africa, South America and so on. We firmly believe that with a professional and capable service team and an integrity-based business philosophy, we will continue to create and output value for our customers, and will be able to work hand in hand with our partners to create a brilliant future.
Our Service
1. Cost analysis and cost reduction plan for the entire set of raw materials for finished products
2. One-stop procurement service for hygiene products raw materials
3. Free safety inventory in large warehouses and free consolidation of multiple materials
4. Provide a complete set of process reports and photos for orders
5. Monthly analysis report on the Chinese raw material market
6. Technical support for equipment
7. Raw material process solutions
8. Design and customization of special edition raw materials
