PVC resuscitator ambu bag set
In general the main components are a self-inflating bag with an air inlet valve and an oxygen inlet, and a patient valve which includes a universal connector to fit a standard anaesthetic face mask or an endotracheal or tracheostomy tube connector. A reservoir bag or tube attached to the distal end of the bag allows the supply of up to 100070 oxygen. A pressure relief valve limits the maximum pressure which may be generated. These manual AMBU bags provide a short-term alternative when manually working AMBU bags before ventilator is available for COVID-19 patients. Winner made disposable manual resuscitators were widely used in this Covid-19 battle. They are powerful helpers for resuscitation in emergency situations, thus many lives are saved.
Adult Size Specifications

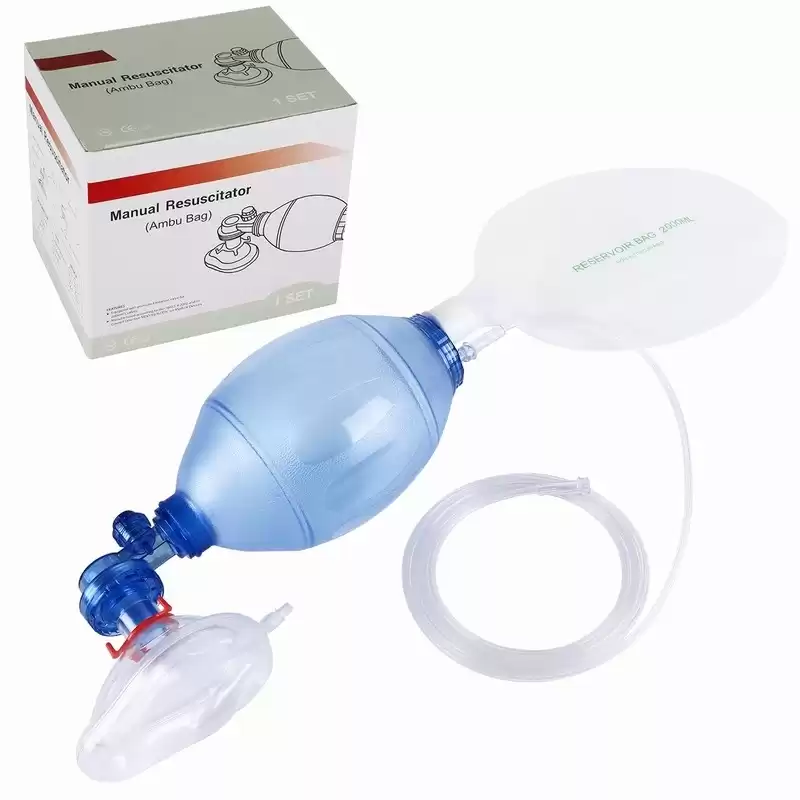

PVC adult disposable manual resuscitator standard configuration including,
- Resuscitation bag
-PVC face mask size adult-M
-Reservoir bag 2000ml
-2.1 meters oxygen tube
-In plastic carry box
-12pcs/CTN, carton size: 55.5X34X46cm
Optional accessory: airway, mouth opener, PEEP valve
Datasheet
|
|
Infant
|
Pediatric
|
Adult
|
|
Body weight
|
≤10 kg
|
10kg～33kg
|
≥33kg
|
|
Stroke volume
|
150 ml
|
350 ml
|
800 ml
|
|
Resuscitator volume
|
340ml
|
680ml
|
1630ml
|
|
Dimensions
(Lenght×Diameter )
|
225×85mm
|
262×105mm
|
325×132mm
|
|
Resuscitator weight
|
350 g
|
410 g
|
600 g
|
|
Pressure limiting valve
|
40 cmH2O
|
40 cmH2O
|
60 cmH2O
|
|
Dead space
(patient valve)
|
7 ml
|
7ml
|
7 ml
|
|
Inspiratory resistance
|
＜5 cmH2O (at 50 L/min)
|
|
Expiratory resistance
|
＜5 cmH2O (at 50 L/min)
|
|
Bag reservoir volume
|
1600 ml
|
1600 ml
|
2000 ml
|
|
Patient connector
|
ISO Ø22/15 mm
|
|
Recommended Operating temperature: -18 ℃～ +50 ℃
|
|
Storage
|
-40 ℃～ +60 ℃
|
